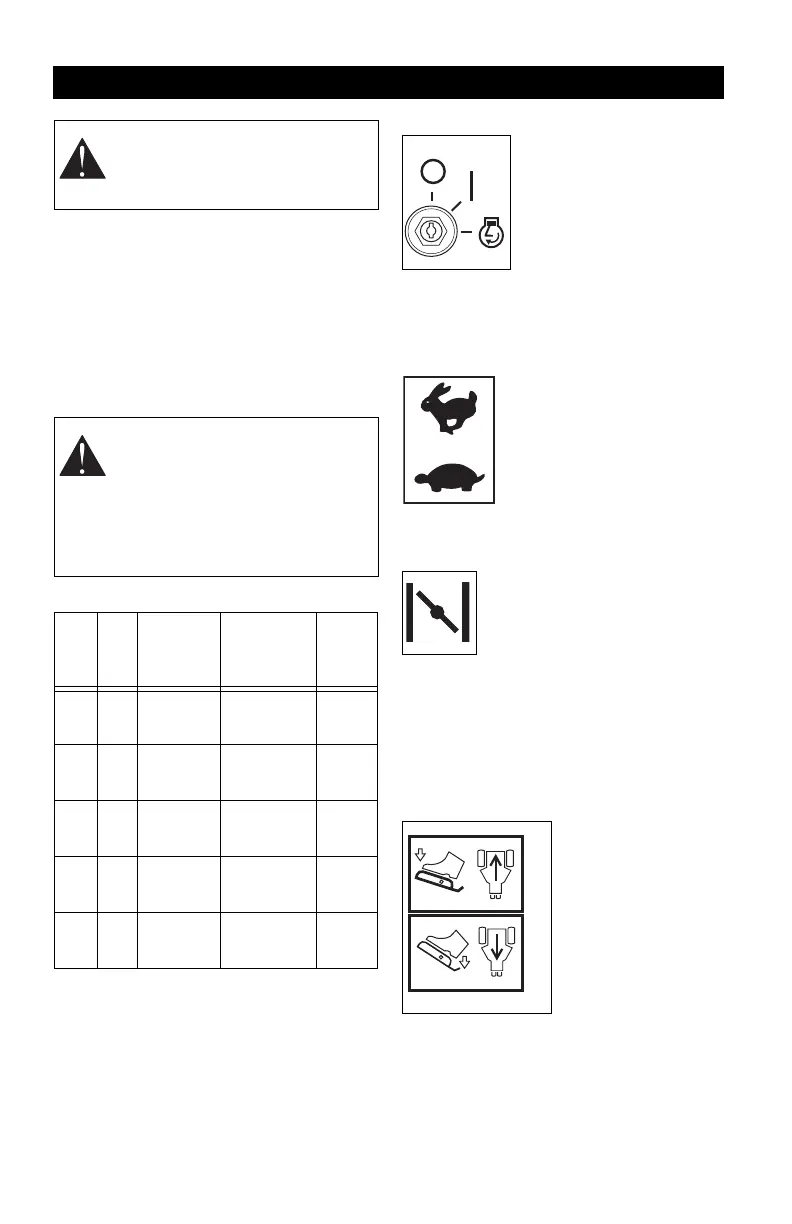

GB - 13
CONTROLS AND FEATURES
See (Figure 4) on page 12 for all Controls
and Features locations.
Safety Interlock System
Test the safety interlock system at each
operation. If the system does not function
properly, do not operate the unit until repairs
are made.
* Perform test with engine running.
+
Operator lifts off seat.
Ignition Switch
The ignition switch is
operated by a removable
key.
To start:
1. Insert the key.
2. Turn the switch clockwise
from the OFF (1) position to
the START (3) position. The
key will spring back to the RUN (2) position.
To stop the engine, turn key to the OFF (1)
position.
Throttle Lever
Move lever to FAST (1)
position to increase engine
speed. Move lever to SLOW
(2) position to decrease
engine speed.
Choke
Pull choke control out to start a
cold engine. Push control in as
engine warms up.
Handlebar
Turn handlebar clockwise to steer right. Turn
handlebar counterclockwise to steer left.
NOTE: Unit spins in a zero turn radius when
handlebar is turned to maximum position in
either direction.
Speed and Direction Control Pedal
Press pedal forward
(1) to move tractor
forward.
Press pedal backward
(2) to move the tractor
backward.
Remove foot from
pedal to return unit to
neutral.
OPERATION
WARNING: AVOID INJURY. Read
and understand entire Safety
section before proceeding.
CAUTION: Safety interlock
system failure and improper
operation of unit can result in
death or serious injury. Test this
system each time the unit is
operated. If this system does not
function as described, do not
operate until repairs are made.
Test PTO
Direction
Control
Pedal
Parking
Brake
Engine
1 Off Neutral Engaged or
Disengaged
Starts
2 On Neutral Engaged or
Disengaged
Won’t
Crank
3 Off Forward or
Reverse
Engaged or
Disengaged
Won’t
Crank
4
*
+
On Neutral Engaged or
Disengaged
Shuts
Off
5
*
+
Off Forward or
Reverse
Disengaged Shuts
Off
To Next Page
