CONTROLS AND FEATURES
1. Choke Control
2. Throttle Lever
3. Seat Knob
4. Fuel Tanks and Caps
5. Steering Levers
6. Mower Lift Lever
(991021)
7. Fuel Shut Off Valve
8. Mower Deck with Chute
Deflector
9. Height of Cut Indicator
10. Foot Board Latch
11. Mower Lift Pedal
(991009, 010, 011, 013,
015, 016, 017, 018, 019,
020)
12. Mower Lift Lock (991009,
010, 011, 013, 015, 016,
017, 018, 019, 020)
13. Parking Brake
14. Seat Adjustment Lever
15. Power Take Off (PTO)
Switch
16. Ignition Switch
17. Oil Pressure Indicator
18. Hour Meter

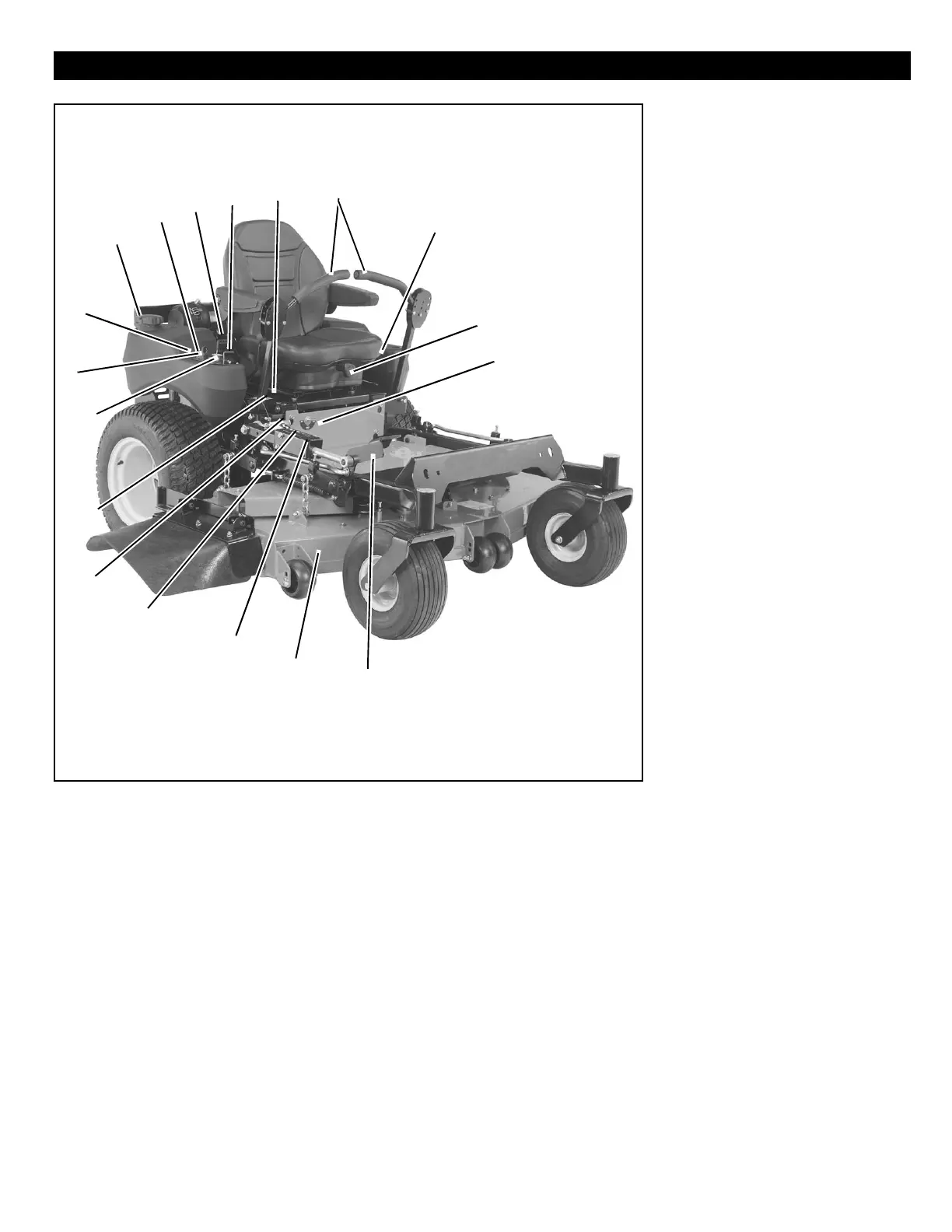

Figure 4
