Gravely ZT 34 User Manual

EN - 31
Install
(Figure 24)
NOTE: Do not install PTO belt on left mower
deck pulley in step 1.
1. Install PTO belt on engine drive pulley
and mower deck.
2. Rotate idler arm clockwise until PTO belt
can be routed around left mower deck
pulley.
3. Slowly release idler arm until idler pulley
rests firmly against PTO belt.
4. Install belt covers on mower deck.
NOTICE: Ensure that belt is still positioned in
the groove of the sheaves after belt covers
are installed.
REPLACING HYDROSTATIC
BELT
Remove
(Figure 26)
1. Remove PTO belt. See Replacing PTO
Belt on page 30.
2. Disconnect idler spring.
3. Remove hydrostatic belt from
hydrostatic transmission pulleys, drive
pulley and idler.
Install
(Figure 26)
1. Install hydrostatic belt on idler, drive
pulley and hydrostatic transmission
pulleys.
2. Connect idler spring.
3. Install PTO belt. See Replacing PTO
Belt on page 30.
Models 915208, 915210, 915244

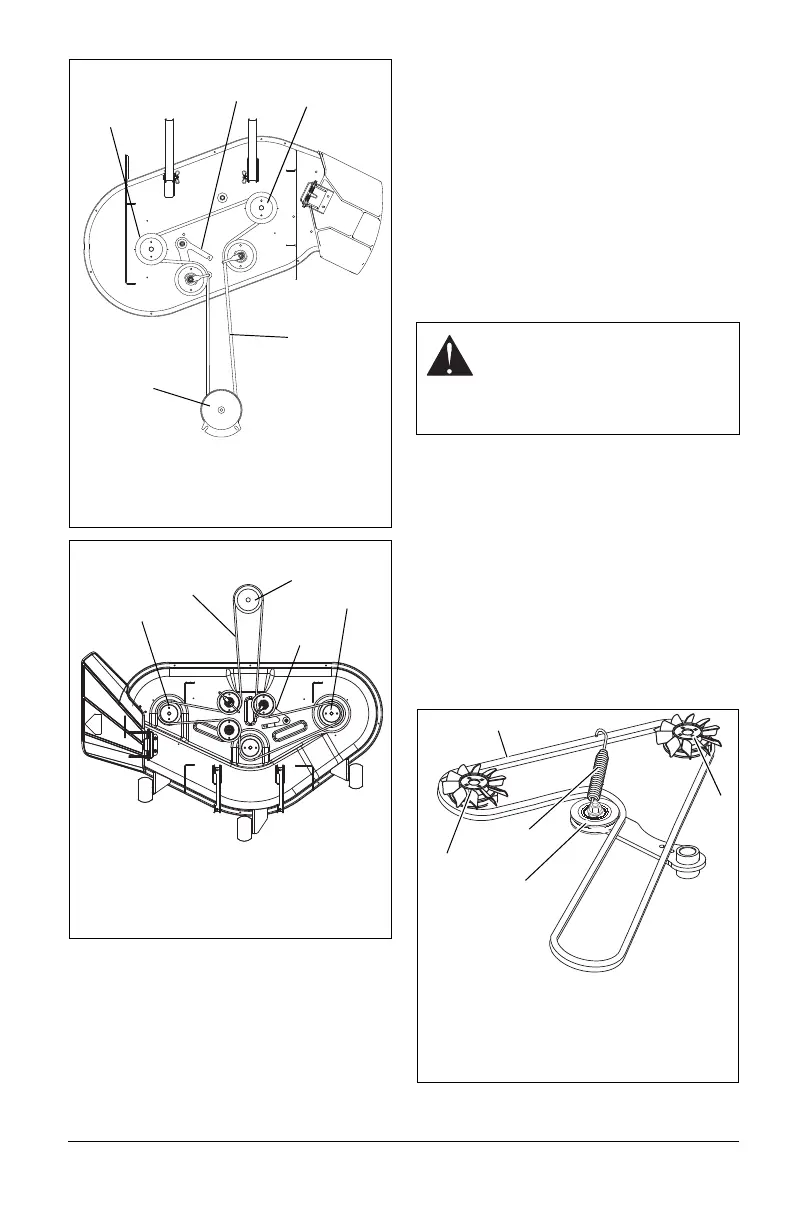

Figure 24
1. Deck Spindle
2. Engine Drive Pulley
3. Deck Idler
4. PTO Belt
2
3
4
1
1
Models 915212, 915214, 915232,
915234, 915246
Figure 25
1. Deck Spindle
2. Engine Drive Pulley
3. Deck Idler
4. PTO Belt
3
4
1
1
2
CAUTION: Use care when
releasing idler spring tension.
Keep body parts well away from
idler when performing this
operation.
Figure 26
1
1. Hydrostatic Belt
2. Hydrostatic Transmission Pulley
3. Idler
4. Idler Spring
2
2
3
4

Gravely ZT 34 Specifications

General

Deck Material	Steel
Turning Radius	Zero-turn
Blade Engagement	Electric PTO
Cutting Width	34 in
Warranty	3 years
