❏ 7. Now that the servos have been positioned and the
controls are centered, glue the ends of the pushrod guide
tubes to the slots in the fuselage and the slots in the landing
gear former.
❏ 8. The same as you mounted the balsa wing struts to the
wing, mount the plywood tail struts (9) to the bottom of the
stab and the fuse. Cut a small slot in the bottom of the fuse
to accommodate the ends of the struts, but do not cut slots
the stab. Glue the struts into position.

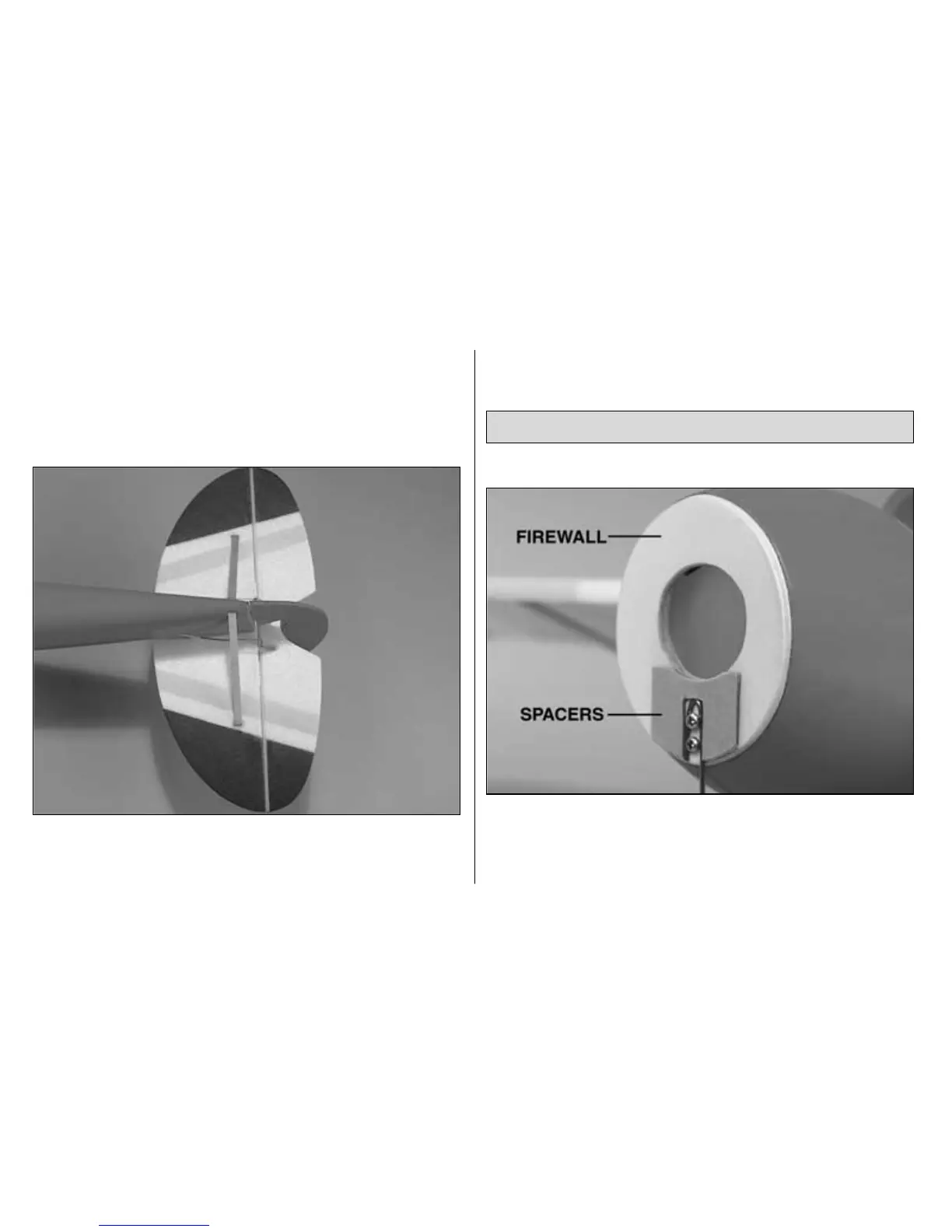

Refer to this photo for the following three steps.
❏ 1. Without using any glue, position the plywood firewall
(2) on the front former. If necessary, trim the firewall until it
matches the front of the fuselage. Glue the firewall into
position.
Mount the Motor
23
