4 Installation Instructions
4.1 Installation of Indoor Unit
4.1.1 Outline Dimension and Installation Spots
Equip with a service port after hanging the unit. For the convenience of maintenance, the service
port should be on one side of the electric box and below unit’s lower level.

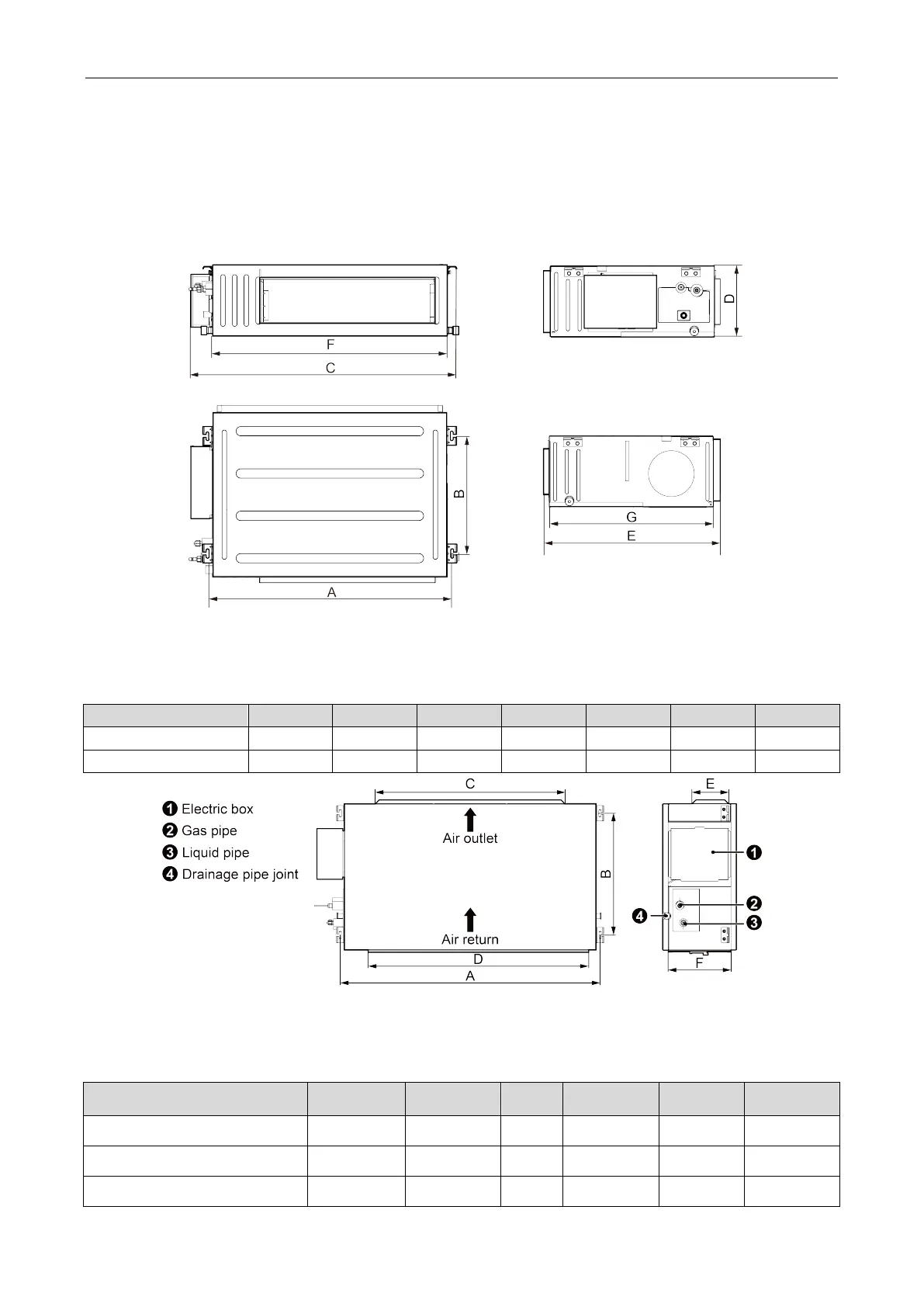

Fig 4.1.1
Below are dimensions of A, B, C, etc. for different models:
Unit
：
mm
Model A B C D E F G
GMV-NDX125P/A-T
1440
500
1530
300
754
1400
700
GMV-NDX140P/A-T 1440 500 1530 300 754 1400 700
Fig 4.1.2
Below are dimensions of A, B, C, etc. for different models:
Unit:mm
Model A B C D E F
GMV-NDX224P/A-T
1353 632 992 1150 192 327
GMV-NDX250P/A-T
1353 632 992 1150 192 327
GMV-NDX280P/A-T
1353 632 992 1150 192 327
