Gree Fresh Air Series

Multi Variable Air Conditioners Fresh Air Series Indoor Unit
5

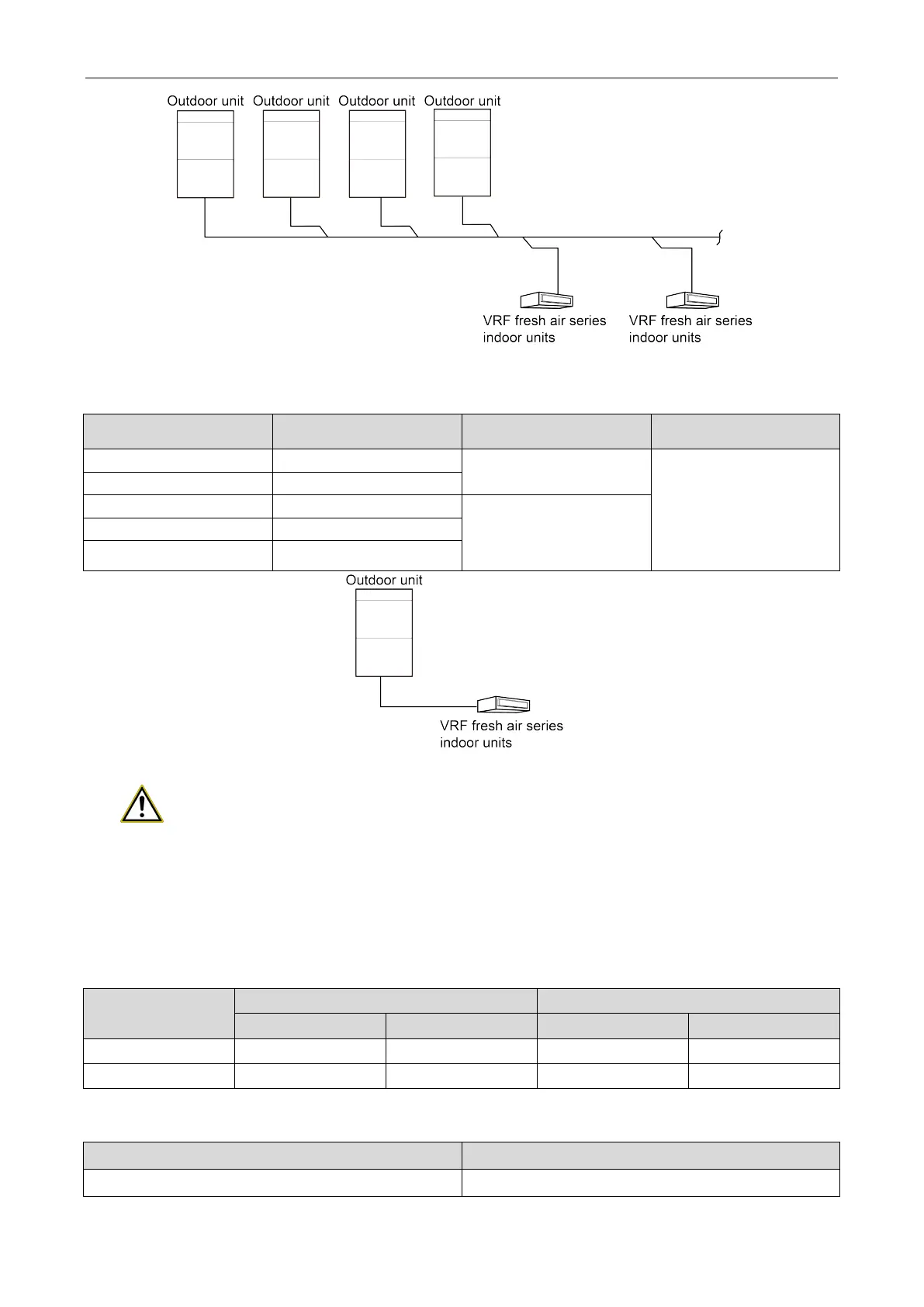

Fig 2.1.4 Connection diagram of outdoor units is modular
(3) If the number of connected indoor units is only one and it is VRF fresh air indoor unit:
Optional
Indoor unit model
Recommended
capacity of outdoor unit
Connected
outdoor unit series
Connection condition
GMV-NDX125P/A-T
12kW
GMV Mini*
The capacity of outdoor unit
is
not less than the
recommended capacity and
cannot exceed 10% of th
e
recommended
capacity.
GMV-NDX140P/A-T
14kW
GMV-NDX224P/A-T 22.4kW
GMV5
GMV6
GMV Slim*
GMV-NDX250P/A-T 28kW
GMV-NDX280P/A-T 28kW
Fig 2.1.5 Connection diagram of only one VRF fresh air indoor unit system
Note:
① Please match the outdoor unit in strict accordance with the above requirements, otherwise, the
comfortableness will be affected or even the unit will be damaged.
② If the VRF fresh air indoor unit match with GMV Slim series or GMV Mini series, please consult
technical staffs for details.
2.2 Rated Working Condition
—
Indoor Side Condition Outdoor Side Condition
Dry Bulb Temp
℃
Wet Bulb Temp
℃
Dry Bulb Temp
℃
Wet Bulb Temp
℃
Rated Cooling 35 28 35 28
Rated Heating 7 6 7 6
2.3 Working Temperature Range
—
Outdoor Ambient Dry Bulb (
℃
)
Working Temperature Range -7 ~ 45
