Gree Fresh Air Series

Multi Variable Air Conditioners Fresh Air Series Indoor Unit
4

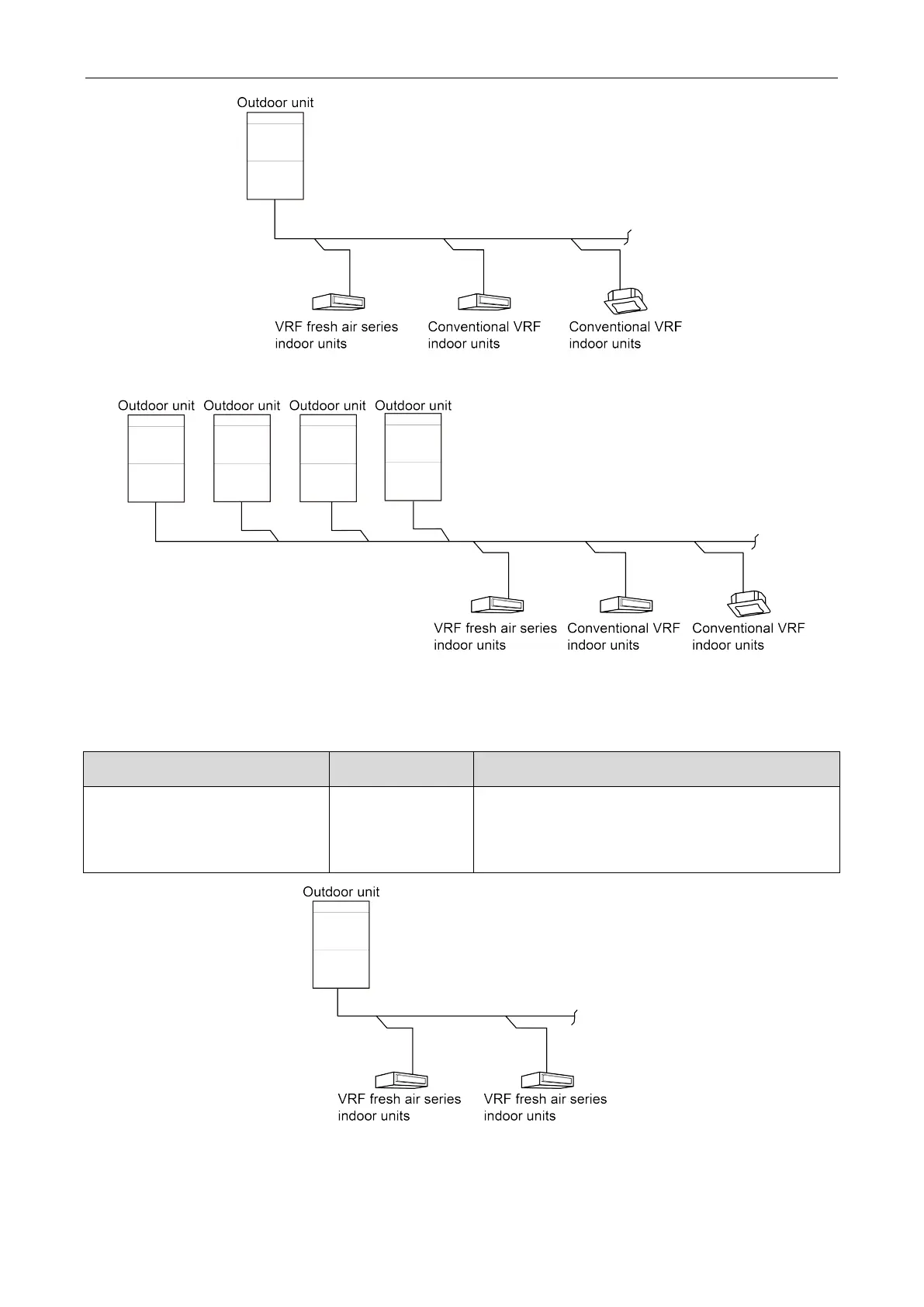

Fig 2.1.1 Connection diagram of outdoor unit is a single module
Fig 2.1.2 Connection diagram of outdoor units is modular
(2) If the number of connected indoor units is more than one and all of them are VRF fresh air
indoor units:
Optional indoor unit model
Connected
outdoor unit series
Connection condition
GMV-NDX125P/A-T
GMV-NDX140P/A-T
GMV-NDX224P/A-T
GMV-NDX250P/A-T
GMV-NDX280P/A-T
GMV5
GMV6
GMV Slim*
The total capacity of connected fresh air indoor units
cannot exceed 50%~100% of the capacity of outdoor
units.
Fig 2.1.3 Connection diagram of outdoor unit is a single module
