Gree Fresh Air Series

Multi Variable Air Conditioners Fresh Air Series Indoor Unit
16

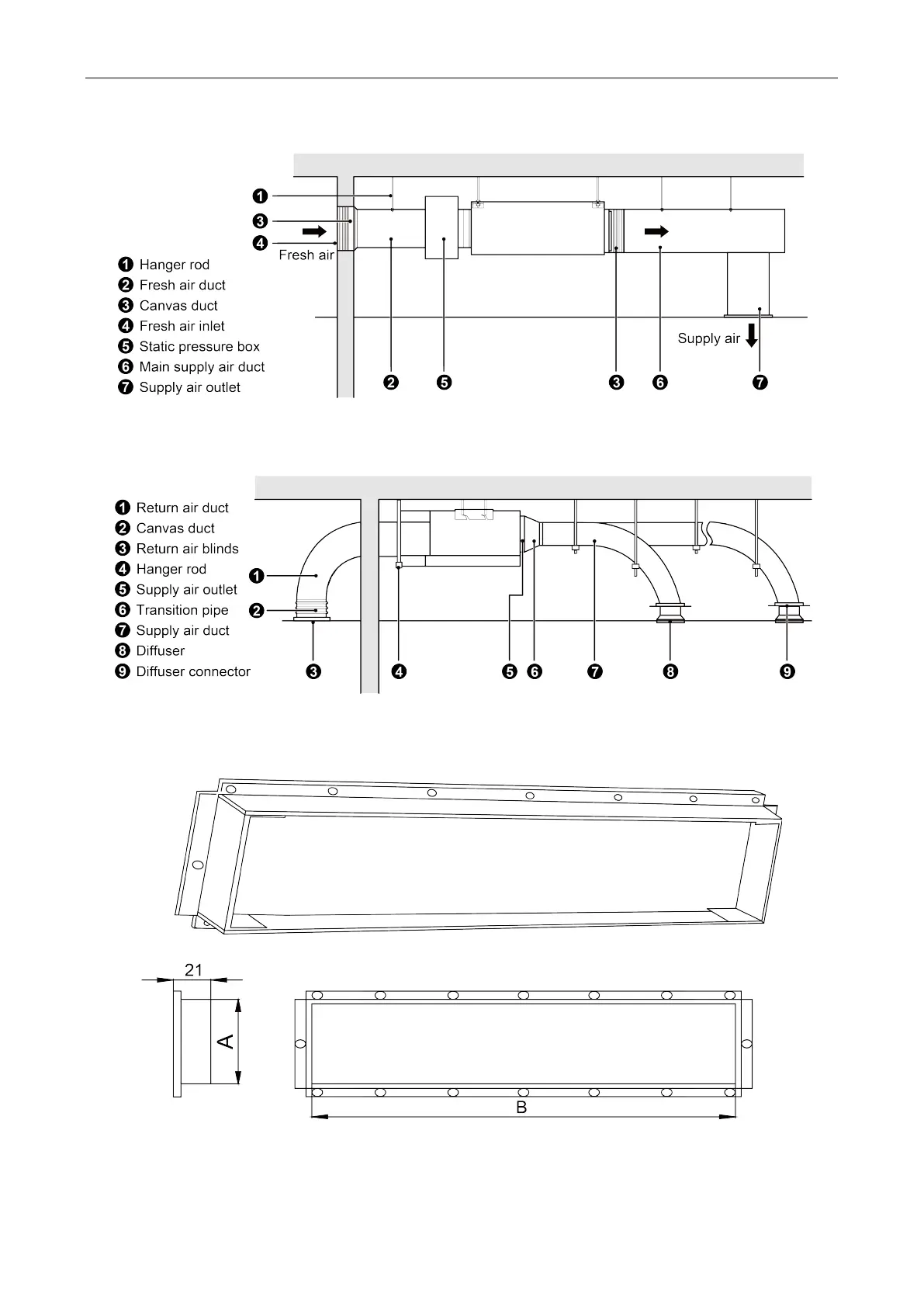

4.4.1 Installation of Air-out Duct
(1) Installation of the Rectangular Duct
Fig 4.4.1
(2) Installation of Circular Duct
Fig 4.4.2
4.4.2 Shape and Size of Air-outlet and Air-return Opening
Fig 4.4.3 Air Outlet
