3.5 Exploded Views and Spaer Part List
3.5.1 Model: GMV-224WM/E-X, GMV-280WM/E-X

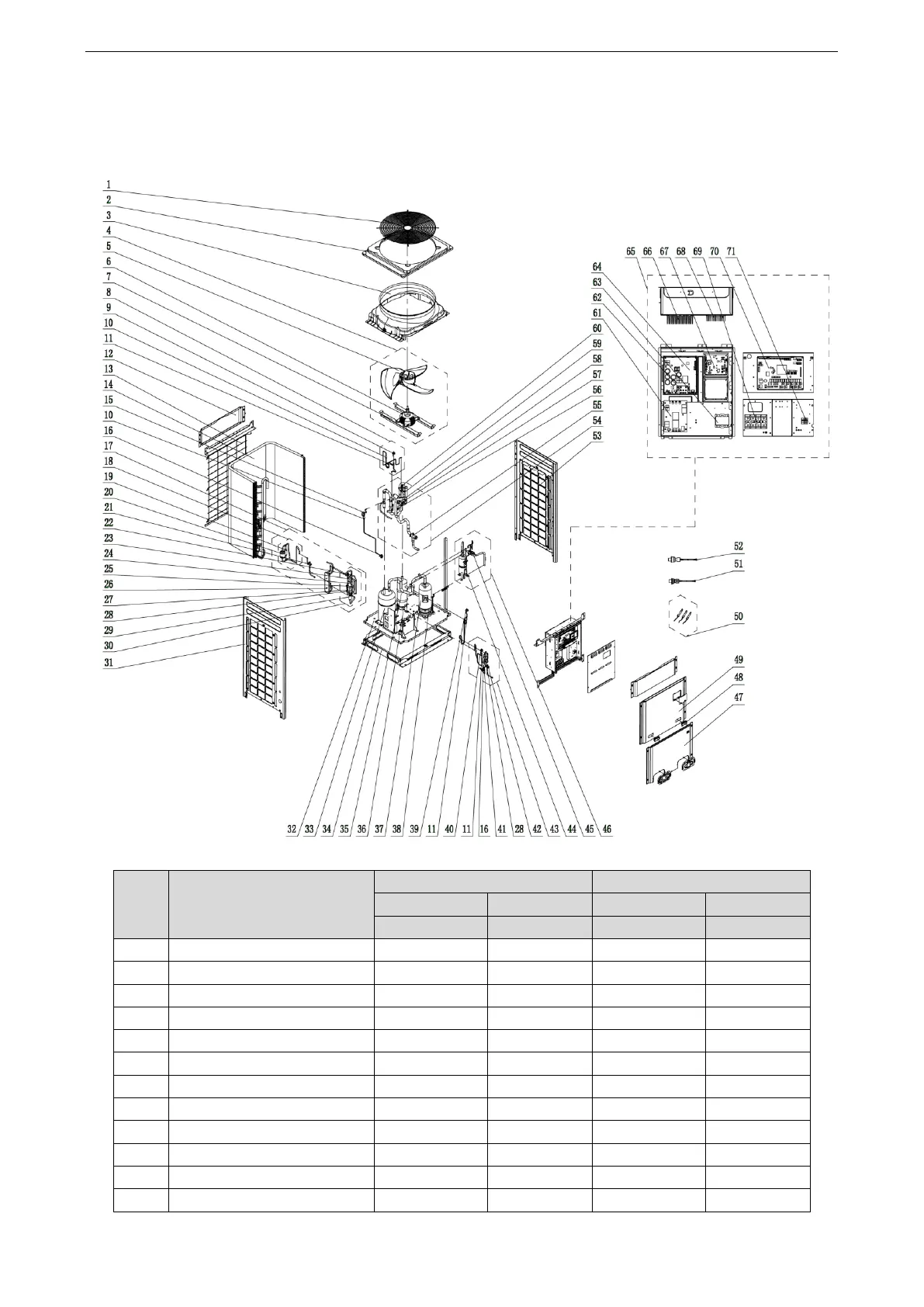

Exploded View:
Parts List:
No.
Name of part
GMV-224WM/E-X
GMV-280WM/E-X
Product Code
CN851W1790
Product Code
CN851W1800
Part code
Quantity
Part code
Quantity
1
Rear Grill
01574105
1
01574105
1
2
Top Cover
01264230
1
01264230
1
3
Diversion Circle
10474100
1
10474100
1
4
Fan motor Sub-Assy
15404605
1
15404605
1
5
Axial Flow Fan Sub-Assy
10338702
1
10338702
1
6
Fan Motor
15704124
1
15704124
1
7
Motor Support Sub-Assy
01804771P
1
01804771P
1
8
Gas By-pass Sub-Assy
04224100129
1
04224100129
1
9
Magnet Coil
4304000425
1
4304000425
1
10
Filter
07415200002
1
07415200002
1
11
Electromagnetic Valve
43000054
1
43000054
1
12
Top Cover
01264231P
2
01264231P
2
