GREE GMV5E DC INVERTER VRF UNITS SERVICE MANUAL
29

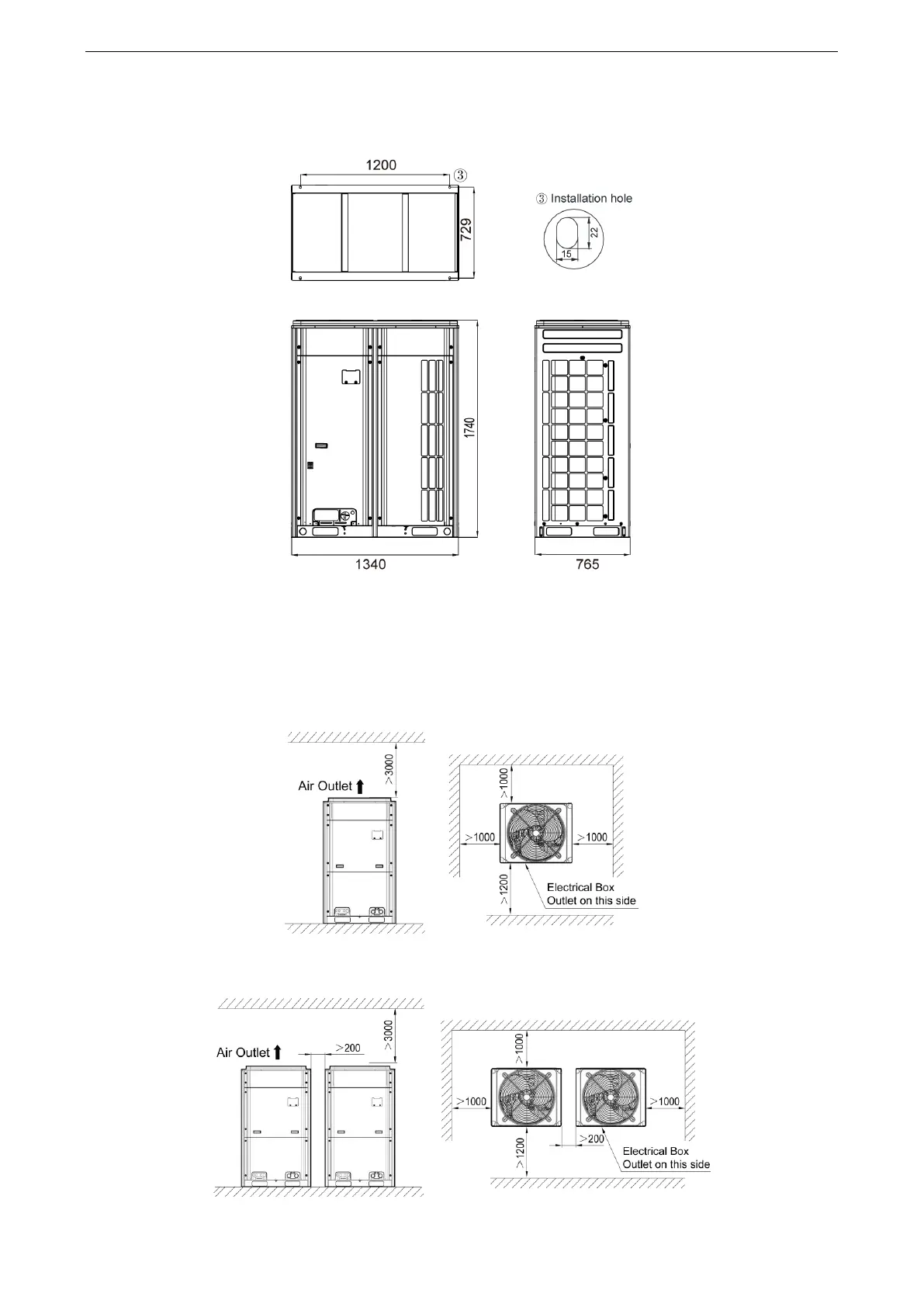

Outline and Physical Dimention of GMV-450WM/E-X, GMV-504WM/E-X, GMV-560WM/E-X and
GMV-615WM/E-X unit.
unit:mm
3.3 Installation Space Requirement for ODU
(1) If all sides of the ODU (including the top) are surrounded by walls, process according to the
following requirements for installation space:
Installation space requirement for single-module unit
unit:mm
Installation space requirement for dual-module unit
unit:mm
