Gree GMV-280WM/G-X Service Manual

Gree GMV6 DC Inverter VRF Units Service Manual
277

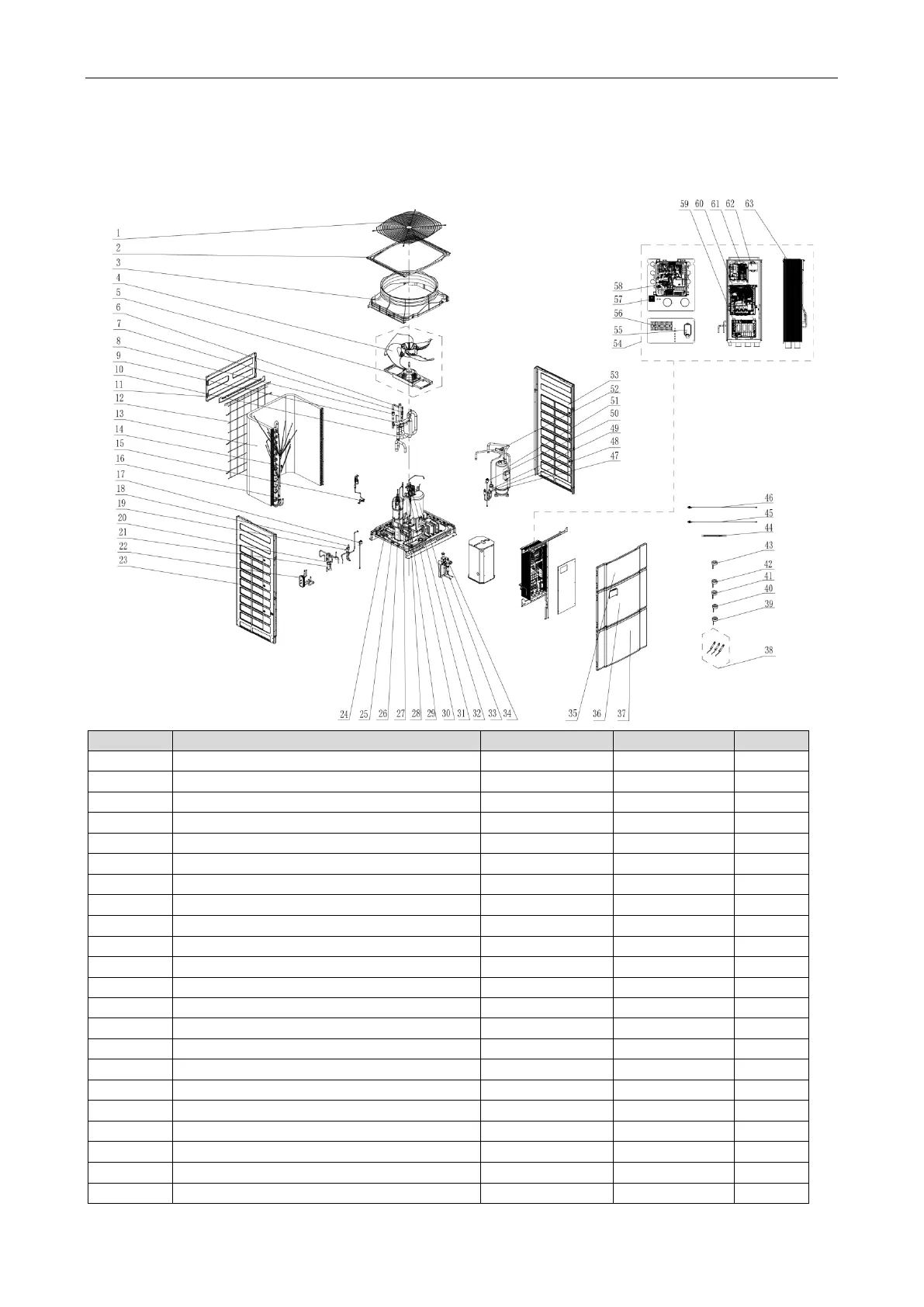

6 Explosive View and Parts List
6.1 Explosive View and Parts List of GMV-224WM/G-X, GMV-
280WM/G-X and GMV-335WM/G-X
No.
Name
Material code
Vulnerable part *
Qty
1
Mesh enclosure
016001060007
*
1
2
Top cover
012049000050P
1
3
Flow guiding ring
200150060002
*
1
4
Axial fan blade
103002000007
*
1
5
Brushless DC motor
1570412406
*
1
6
Fluoride injection mouth
06120012
*
2
7
Fluoride injection mouth
06123006
*
1
8
One-way valve
071001060007
*
1
9
4-way valve
43000339
*
1
10
Filter (mesh type)
07218603
*
1
11
Covering plate (back)
012035000236P
1
12
Mesh enclosure
016001060006
*
1
13
Condenser assembly
011002060413
*
1
14
Fluoride injection mouth
061200101
*
1
15
Fluoride injection mouth
06130002
*
1
16
Filter (filter fork-type pipe)
0341010701
*
1
17
EXV coil UKV
4304413248
*
1
18
Solenoid valve
43044100224
*
1
19
Unloading valve
07334100002
*
1
20
Electronic expansion valve
43044100172
*
1
21
Large-tube filter
072190511
*
1
22
Plate heat exchanger
010007060008
*
1
