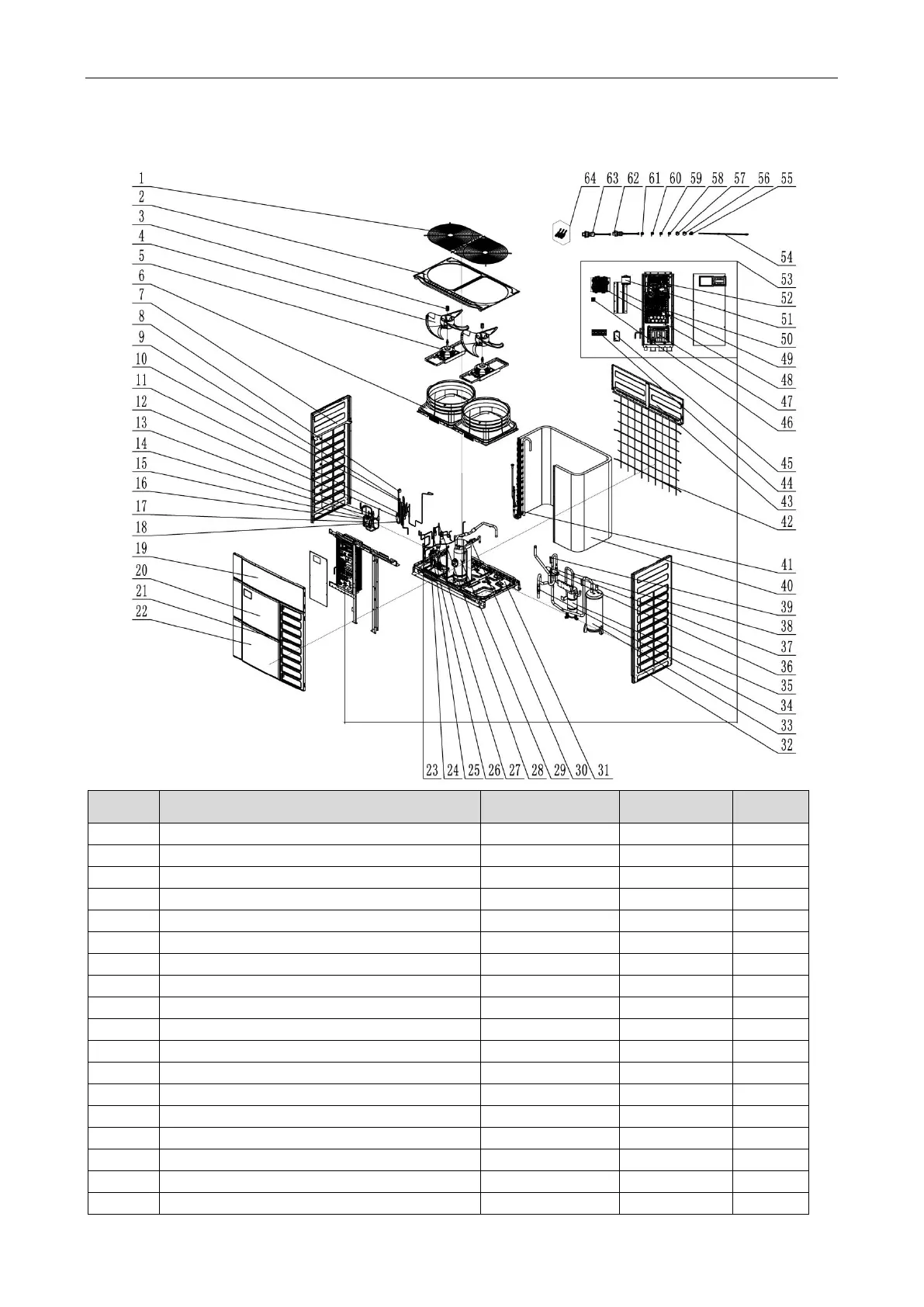

6.2 Explosive View and Parts List of GMV-400WM/G-X, GMV-
450WM/G-X and GMV-504WM/G-X
No. Name Material code
Vulnerable part
*
Qty
1 Mesh enclosure 016001060013 * 1
2 Top cover 012049000059P 1
3 Axial fan blade sleeve 02204102 * 2
4 Axial fan blade 10434100002 * 2
5 Brushless DC motor 1570412406 * 2
6 Flow guiding ring 200150000011 * 2
7 Left side plate assembly 017037060016P 1
8 Electronic expansion valve coil 072002000011 * 1
9 Electronic expansion valve 43044100190 * 1
10 Solenoid valve 072008000005 * 1
11 Muter 07245008 * 1
12 Two-way filter 07220016 * 1
13 Solenoid valve 43044100224 * 1
14 Unloading valve 07334100002 * 2
15 Electronic expansion valve 15704124 *
16 Large-tube filter 200150000011 * 1
17 Plate heat exchanger 017037060016P * 1
18 Filter 072002000011 * 1
