Gree GMV-400WM/B-X Service Manual

GMV5 DC INVERTER VRF UNITS SERVICE MANUAL
51

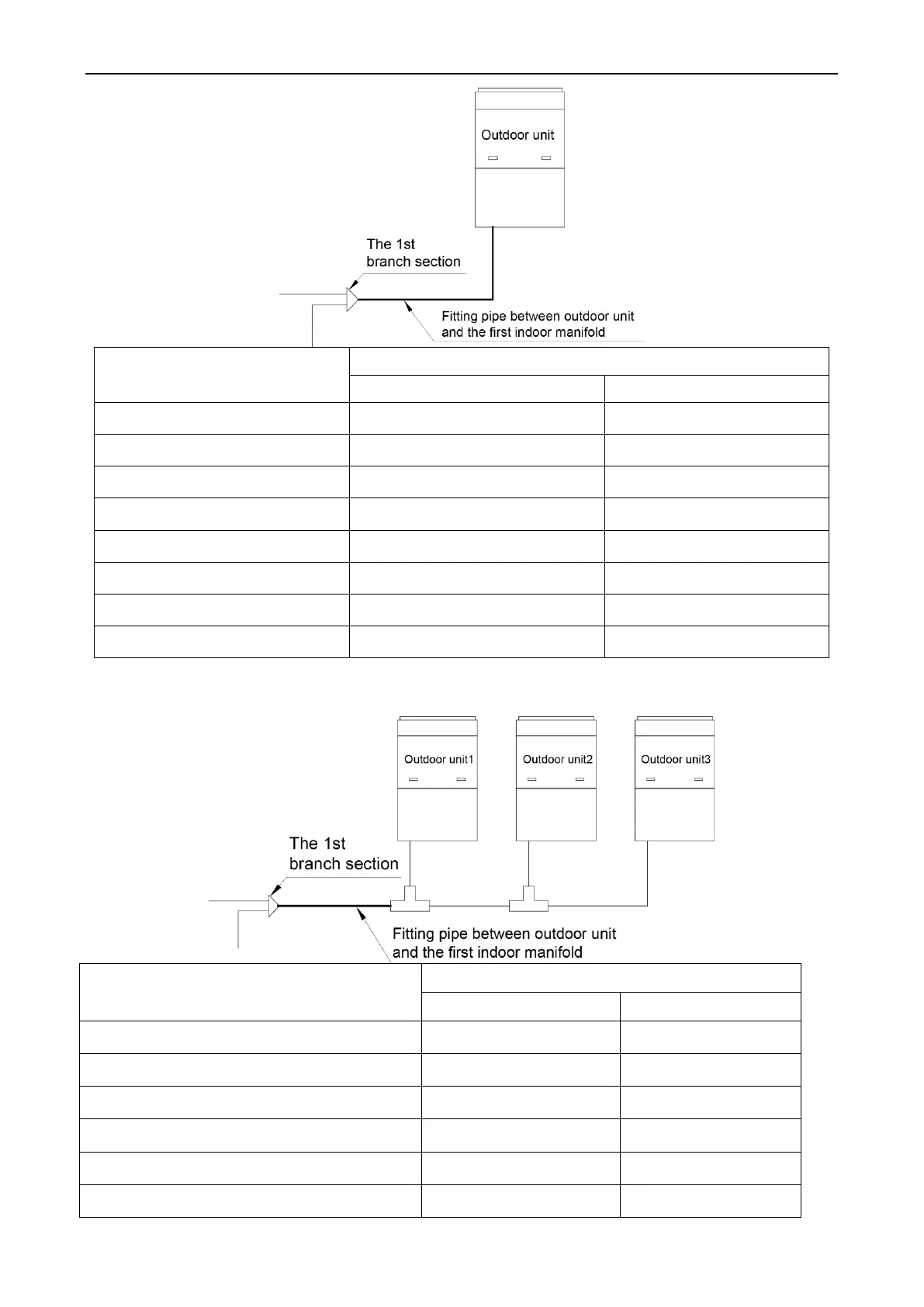

Basic Module(single module)
Pipe between ODU and the first branch of IDU
Gas Pipe(mm)
Liquid Pipe(mm)
GMV-224WM/B-X
Φ19.05
Φ9.52
GMV-280WM/B-X
Φ22.2
Φ9.52
GMV-335WM/B-X
Φ25.4
Φ12.7
GMV-400WM/B-X
Φ25.4
Φ12.7
GMV-450WM/B-X
Φ28.6
Φ12.7
GMV-504WM/B-X
Φ28.6
Φ15.9
GMV-560WM/B-X
Φ28.6
Φ15.9
GMV-615WM/B-X
Φ28.6
Φ15.9
For multiple modules, the piping from ODU to the first branch of IDU is based on the total rated
capacity of outdoor modules.
Total rated capacity of outdoor modules
(multi-modular system)
Pipe between ODU and the first branch of IDU
Gas Pipe(mm)
Liquid Pipe(mm)
GMV-504WM/B-X
Φ28.6
Φ15.9
GMV-560WM/B-X
Ф28.6
Ф15.9
GMV-615WM/B-X
Ф28.6
Ф15.9
GMV-680WM/B-X
Ф28.6
Ф15.9
GMV-730WM/B-X
Ф31.8
Ф19.05
GMV-785WM/B-X
Ф31.8
Ф19.05
