GMV5 DC INVERTER VRF UNITS SERVICE MANUAL
54
Rated capacity of indoor unit C(kW)

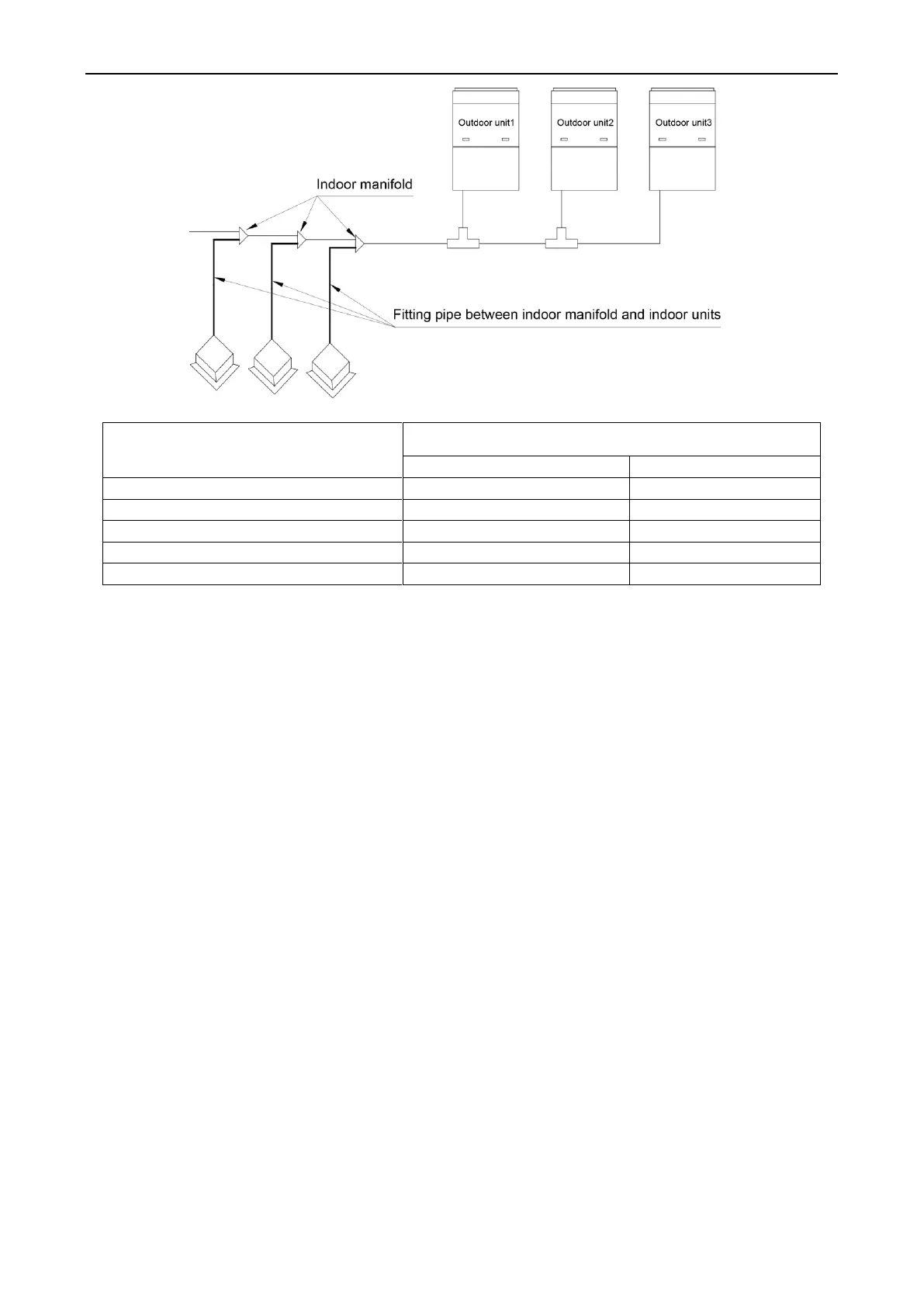

Pipe between indoor branch and IDU
Gas Pipe(mm)
Liquid Pipe(mm)
C≤2.8
Φ9.52
Φ6.35
2.8＜C≤5.0
Φ12.7
Φ6.35
5.0＜C≤14.0
Φ15.9
Φ9.52
14.0＜C≤16.0
Φ19.05
Φ9.52
16.0＜C≤28.0
Φ22.2
Φ9.52
