D.C. Inverter Multi VRF Modular
8

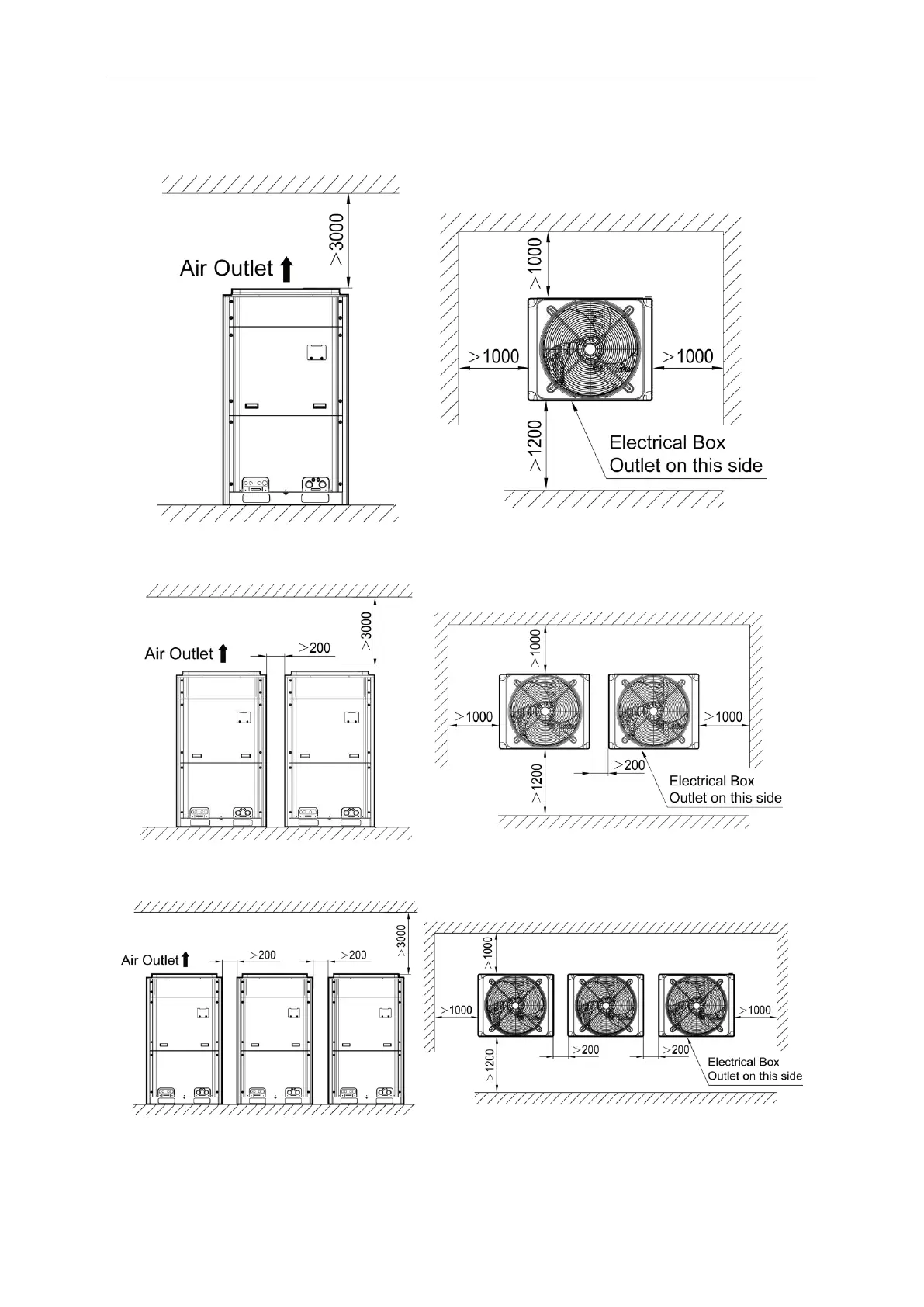

3.2.1 When the outdoor unit is totally surrounded by walls, please refer to following
figures for space dimension.
3.2.1.1 Space dimension for single-module unit
Fig. 3
3.2.1.2 Space dimension for dual-module unit
Fig. 4
3.2.1.3 Space dimension for three-module unit
Fig.5
