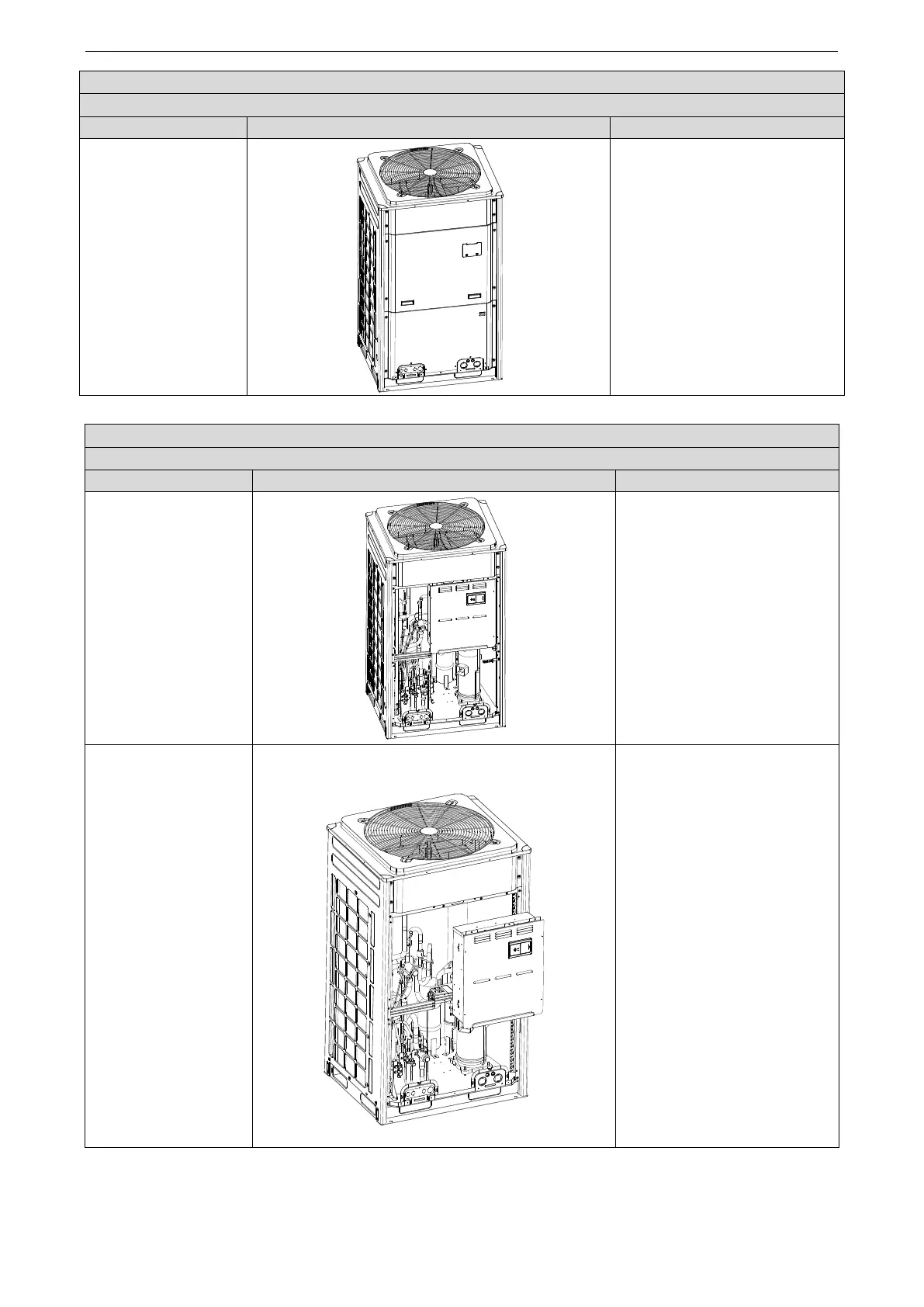

GREE GMV5E DC INVERTER VRF UNITS SERVICE MANUAL
275
Electric expansion valve
Precondition: No refrigerant exists in the pipeline system and the power supply has been disconnected.
Step
Diagram
Operation Procedure
7. Check and install the
front panels.
●Check various parts and
connecting lines.
If no problem is found, hook the
front panels and tighten the
screws.
Oil separator
Precondition: No refrigerant exists in the pipeline system and the power supply has been disconnected.
Step
Diagram
Operation Procedure
1. Loosen the hooks at
the bottom of the
electric box and the
screws.
Remove the upper and lower
front panels.
Loosen the hooks at the bottom
of the electric box.
Use a screwdriver to unscrew
the electric box.
2. Remove the electric
box.
●Disconnect internal and
external connecting lines of the
electric box.
●Protect the internal parts during
the disassembly.
