Gree GMV-60WL/C-T

DC Inverter Multi VRF System
6
Unit: mm(inch)
Model A B C D E
GMV-36WL/C-T(U)
GMV-48WL/C-T(U)
900
(35-3/8)
340
(13-3/8)
1345
(53)
572
(22-1/2)
378
(15)
GMV-60WL/C-T(U)
940
(37)
320
(12-9/16)
1430
(56-1/4)
632
(24-7/8)
350
(14-7/8)
4.2 Connection Pipe

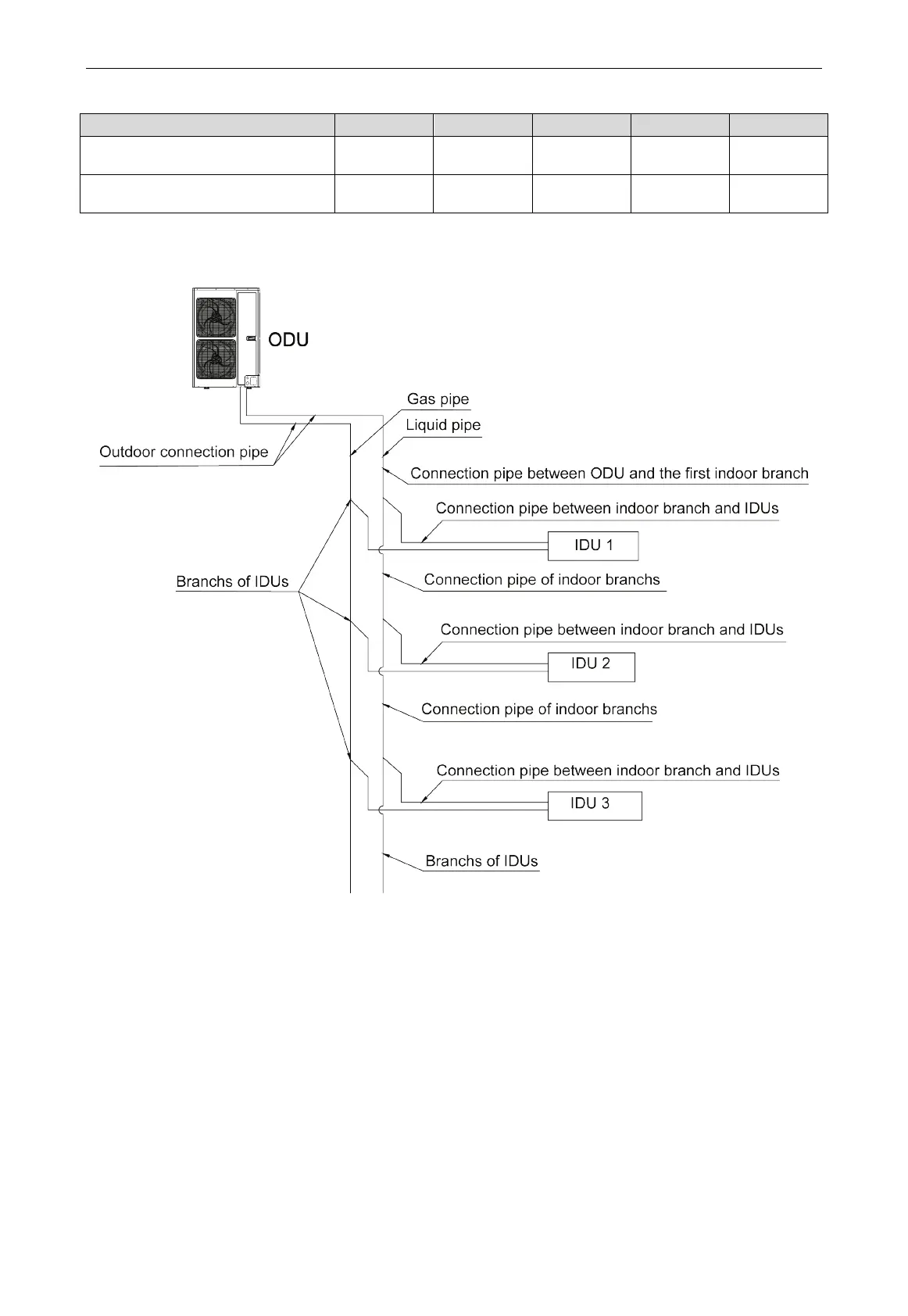

4.2.1 Schematic Diagram of Piping Connection
Fig.4.2
