GMV5 DC INVERTER VRF UNITS SERVICE MANUAL
41
II. ODU Fixing
Fix the ODU to the foundation with four M12 bolts securely to reduce vibration and noise.
III. Vibration Reduction for ODU

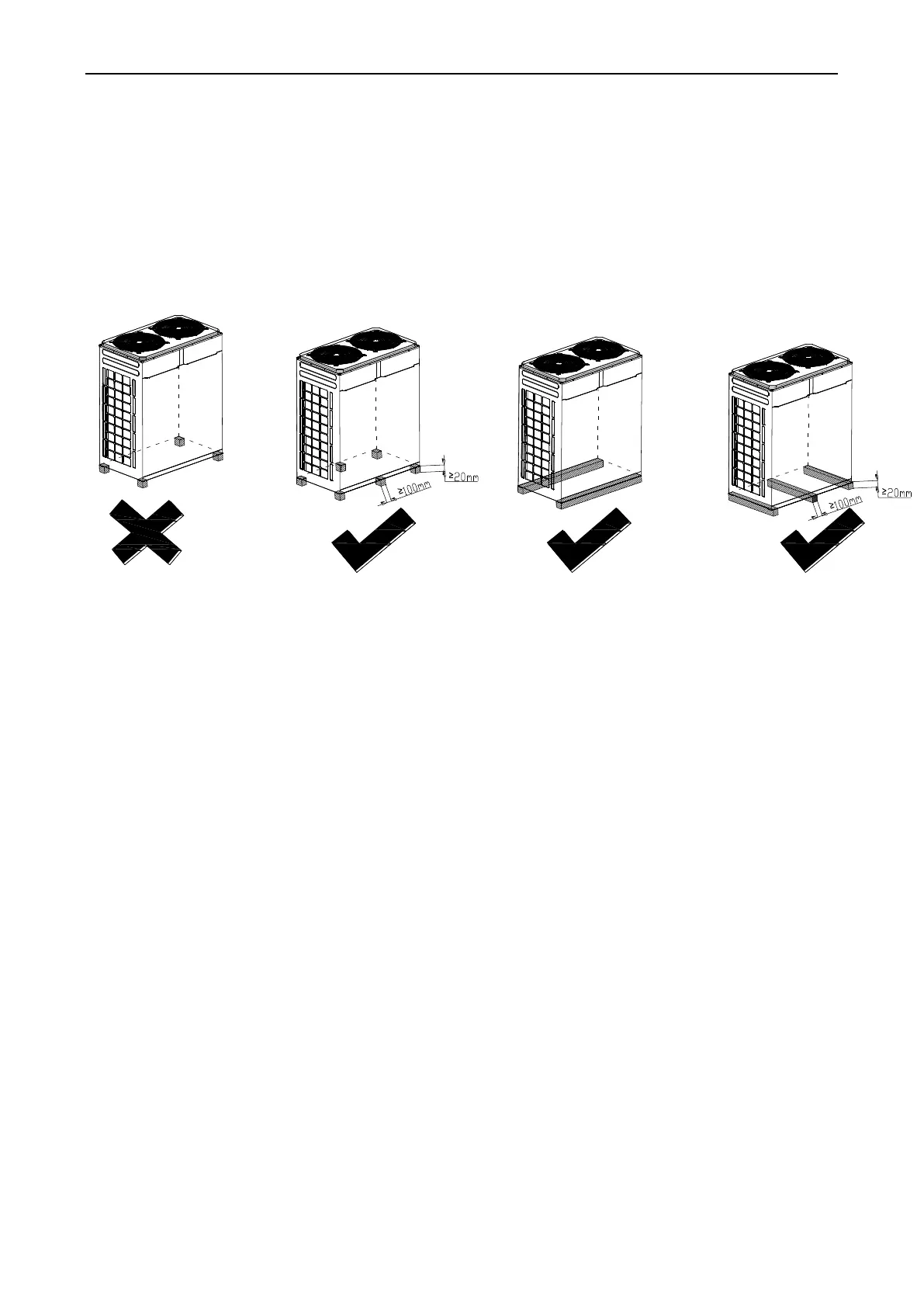

The ODU must be fixed securely. Apply a thick rubber sheet or corrugated damping rubber pad with
thickness of 200 mm or more and width of 100 mm or more between the ODU and the foundation, as
shown in the following figures.
