Multi Variable Air Conditioners Floor and Ceiling Type Indoor Unit
18
D
1
D
2
H
1
H
2
D
1
D2
H
1
H2
D1
D
2
H1
H
2
D
1
D
2
H
1
H
2
D1
D
2
H
1
H
2
D1
D2
H
1
H2
D1
D
2
H
1
H
2
D
1
D
2
H1
H
2
D1 D2
D1 D2

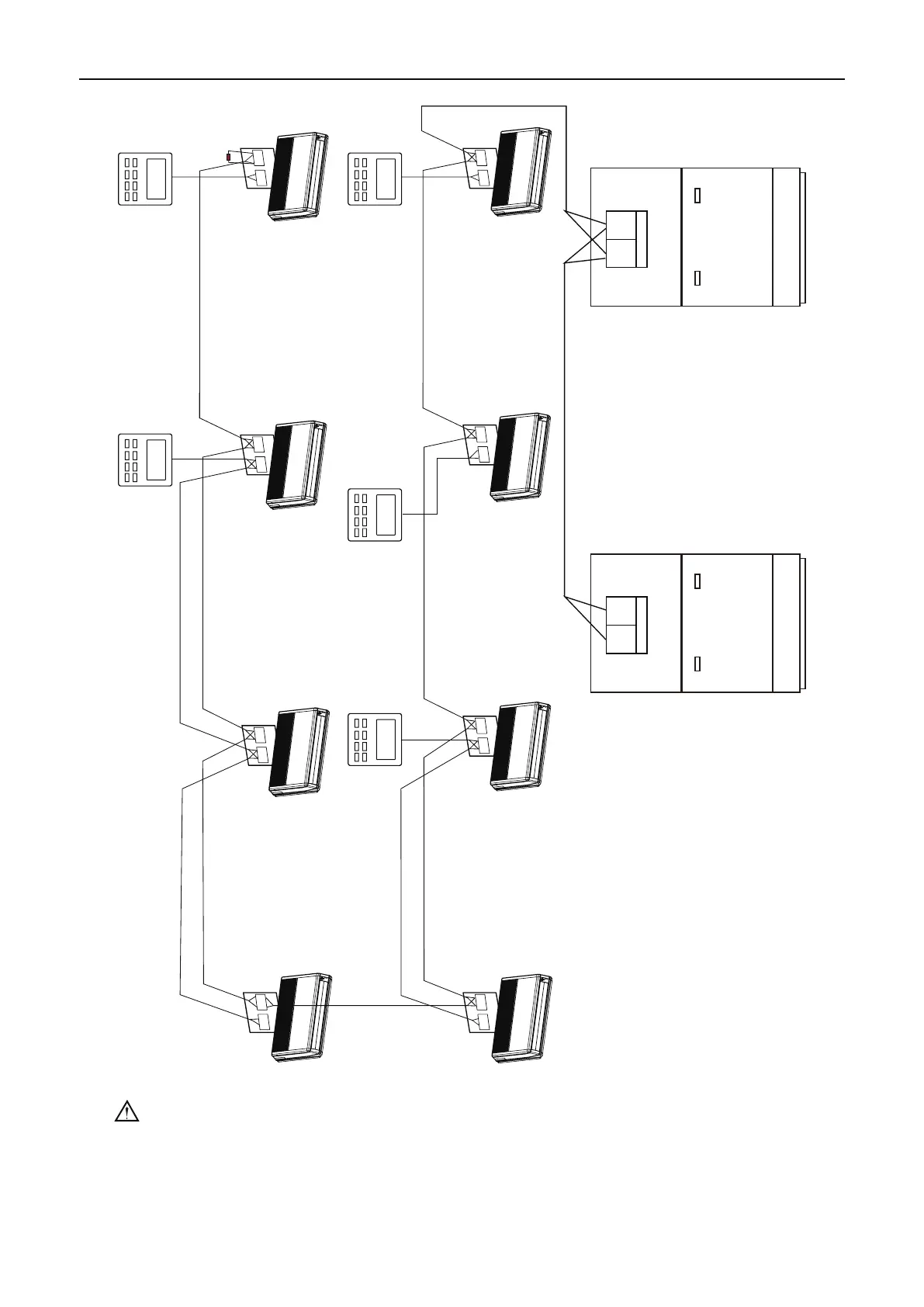

Fig 5.5
Notes:
①
The type of indoor units must be the same if they are controlled by the same wired controller.
②
When the indoor unit is controlled by two wired controllers, the addresses of the two wired
controllers should be different through address setting. Address 1 is for main wired controller; Address
2 is for slave wired controller. Detailed setting please refer to the owner’s manual of wired controller.
