GREE GMV5 INDOOR UNIT SERVICE MANUAL
237

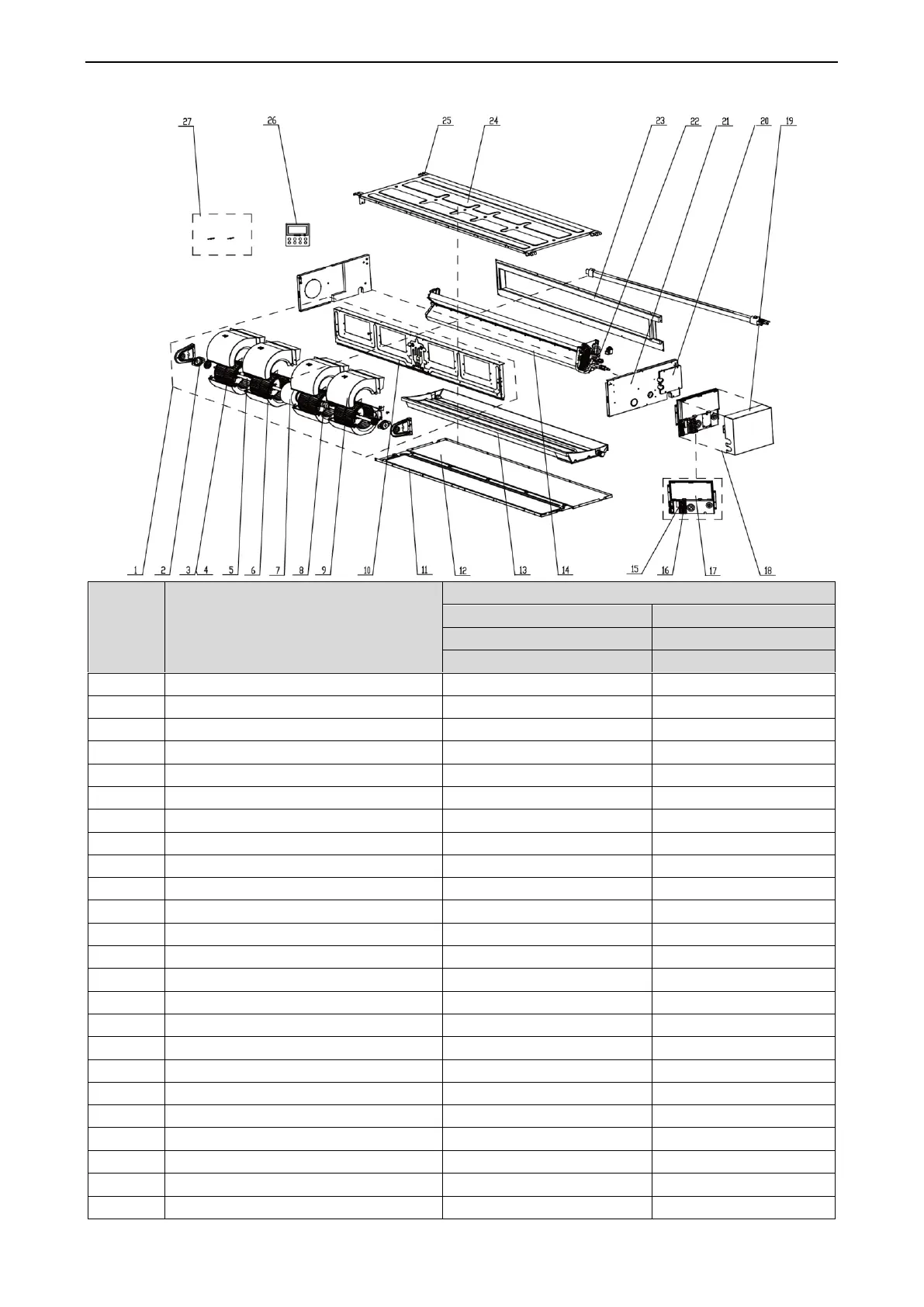

Exploded View of GMV-ND72PL/B-T:
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND72PL/B-T
CM800N3600
Part code
Quantity
1
Centrifugal fan assy
15404100032
1
2
Bearing Holder Sub-assy
26151139
2
3
Centrifugal Fan
10425200003
4
4
Fan Bearing
76512210
1
5
Rotary Axis Sub-Assy
73018761
2
6
Propeller Housing(Lower)
26905200019
4
7
DC brushless motor
15704100001
1
8
Joint Slack
73018731
2
9
Propeller Housing(Upper)
26905200018
4
10
Blower Mounting Plate Sub-Assy
01325200053
1
11
Cover Of Air-in
01265200085
1
12
Bottom Cover Plate Assy
01265200093
1
13
Water Tray Assy
01285200029
1
14
Evaporator Assy
01024100076
1
15
Terminal Board
42011106
1
16
Terminal Board
4201800002601
1
17
Main Board
30226000029
1
18
Electric Box Assy
01394100241
1
19
Electric Box Cover
01425200023
1
20
Closing Plate Sub-Assy
01494100010
1
21
Right Side Plate Assy
01315200053
1
22
Electronic Expansion Valve
07334466
1
23
Air Outlet Frame Assy
01374100059
1
24
Top Cover Board Assy
0126520009201
1
