3.10 Installation of Slim Duct Type unit

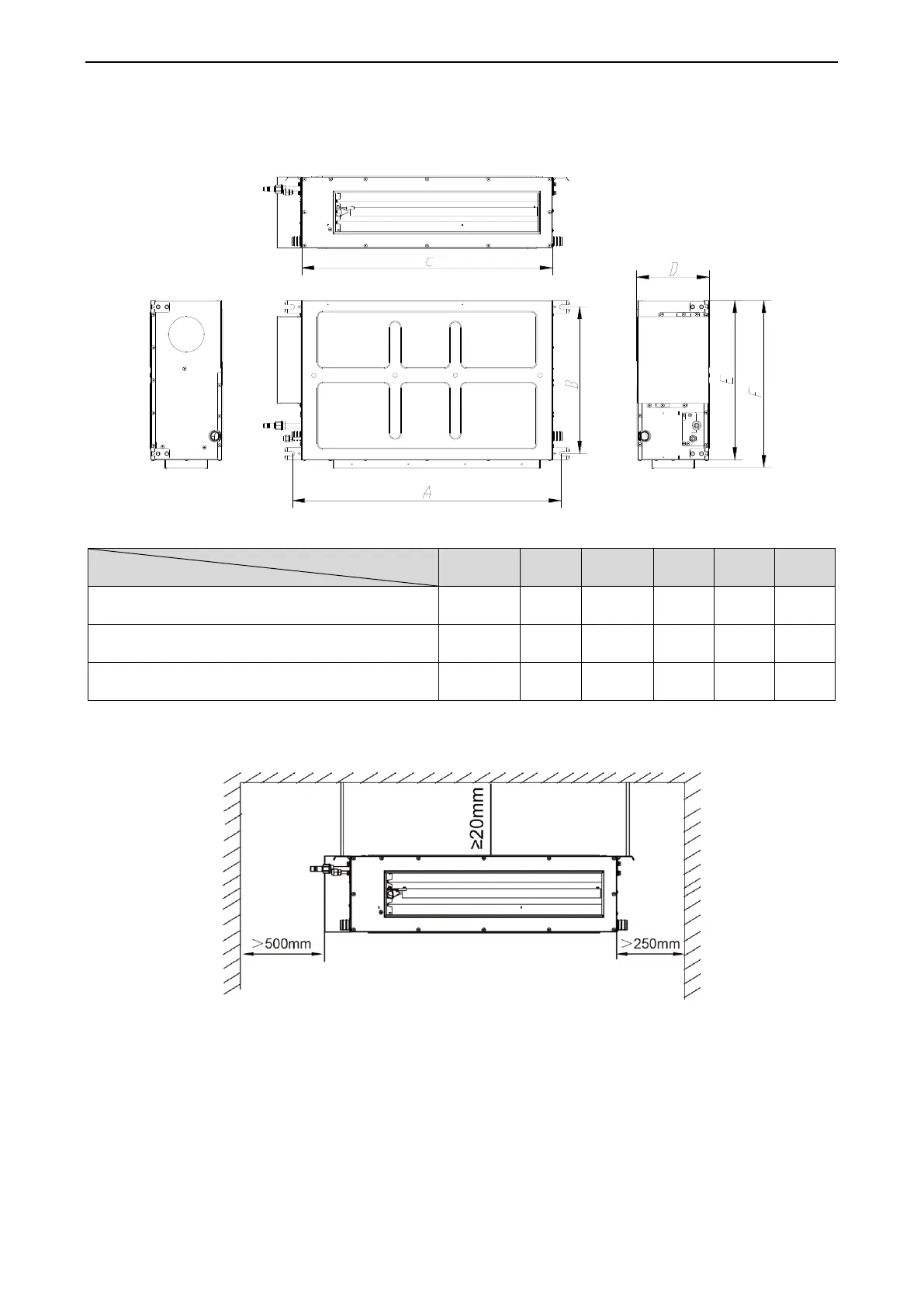

3.10.1 Outline and installation dimension
Unit: mm
Item
Model
A
B
C
D
E
F
GMV-ND22~36PL/B-T
GMV-ND22~36PLS/B1-T
760
415
710
200
450
475
GMV-ND40~63PL/B-T
GMV-ND40~63PLS/B1-T
1060
415
1010
200
450
475
GMV-ND72PL/B-T
GMV-ND40~63PLS/B1-T
1360
415
1310
200
450
475
3.10.2 Installation space
Unit: mm
3.10.3 Installation notice
 The unit shall be installed by the professional personnel according to this installation instruction
to ensure proper use.
 Please contact the local Gree appointed service center before installation. Any
malfunctioncaused by the unit that is not installed by the Gree appointed service center would
probably not be dealt with on time because of the inconvenience of the business contact.
 It should be guided under the professional personnel when the air conditioner unit is moved to
other place.
