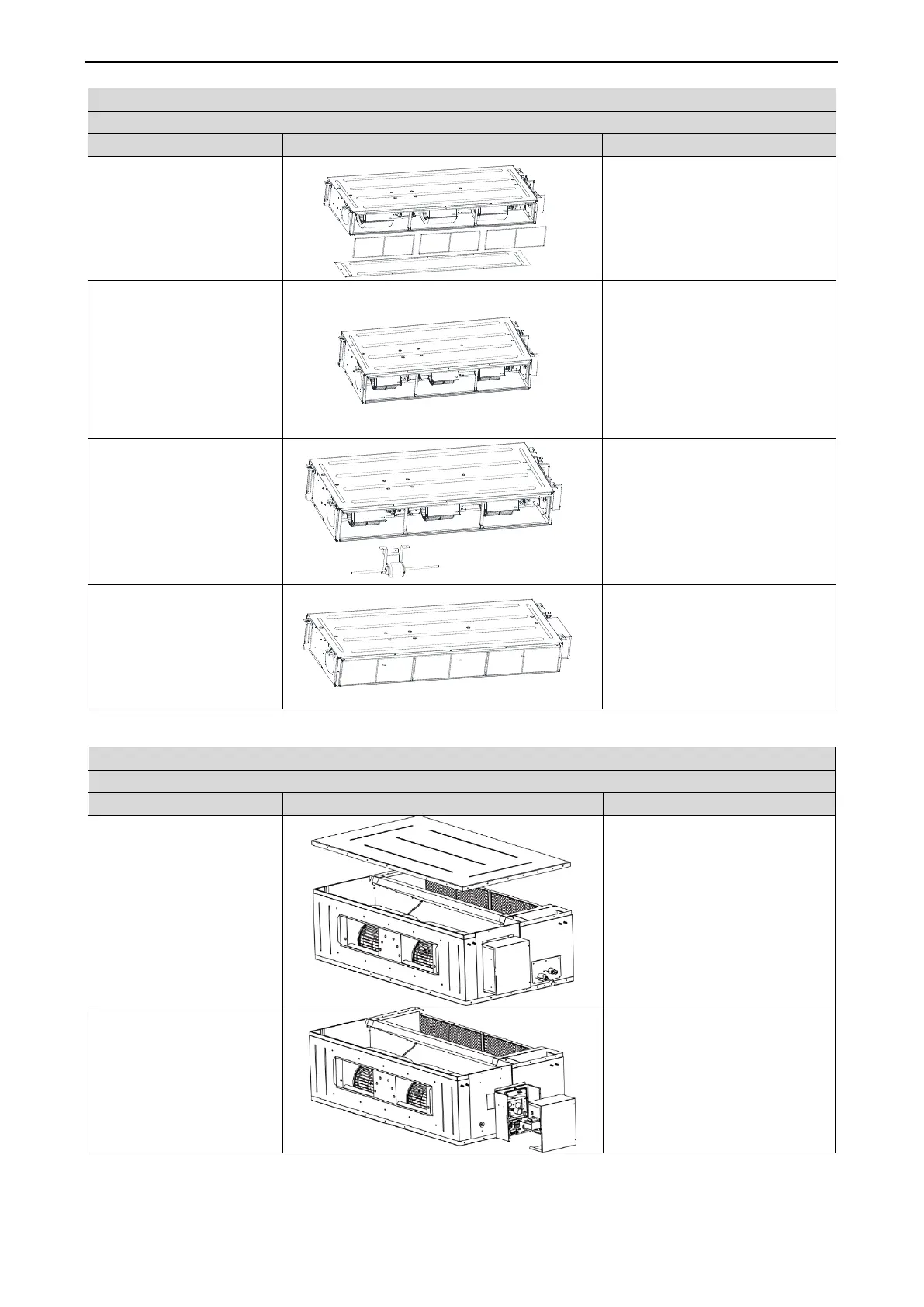

Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
2. Remove the filter. And the
air return cover plate.
●Remove the filter from the air
return frame.
●Use a screwdriver to unscrew the
air return cover plate.
3. Remove the rear
propeller housing and
Remove the front propeller
housing.
●Loosen the fasteners that
connect the rear propeller housing
with the front propeller housing
and remove the rear propeller
housing.
●Use a screwdriver to unscrew the
front propeller housing and then
remove the propeller housing.
4. Remove the motor.
●Remove the motor from the
support and remove the louver
from the motor axle. Then, remove
the motor.
5. Install a new motor.
●Assemble units based on the
reverse order of this procedure
and power on the units for test.
GMV-NDX224P/A-T, GMV-NDX250P/A-T, GMV-NDX280P/A-T
Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
1. Remove the cover plate
component.
●Use a screwdriver to unscrew the
cover plate component.
2. Remove the line
connecting to the motor.
●Use a screwdriver to unscrew the
electric box cover.
●Remove from the master board
the line connecting to the motor
and remove the tie.
