Gree GMV-ND22C/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
192

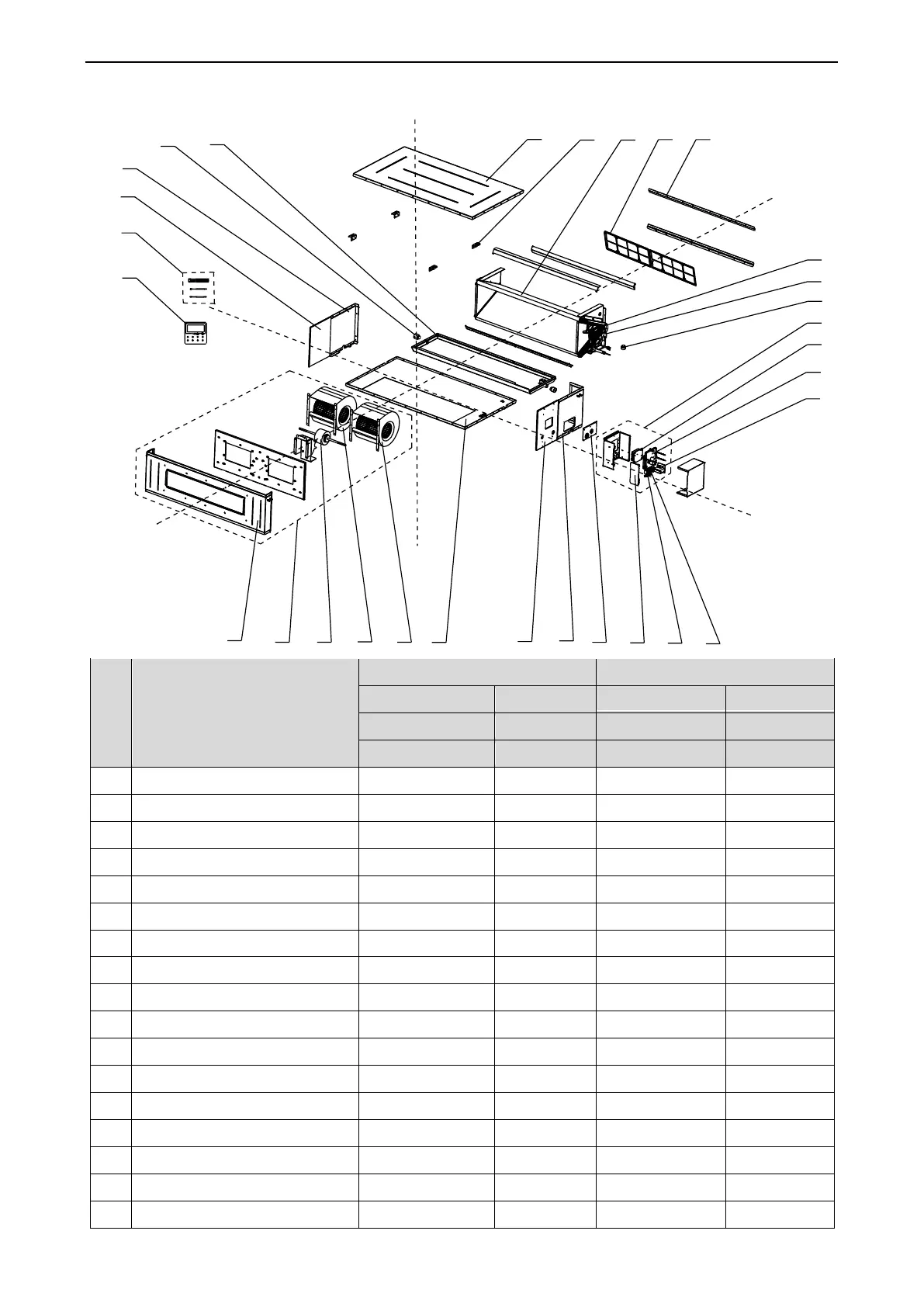

Exploded View of GMV-ND280PH/A-T:
9
10
7
8
6
5
3
1
11
12
4
2
23 22
21 2024
15
14
13
16
18
17
19
29
2
1
1
2
6
5
3
4
1
2
27
28
30
26
25
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND224PH/A-T
CM800N3721
GMV-ND280PH/A-T
CM800N3731
Part code
Quantity
Part code
Quantity
1
Front Side Plate Sub-Assy
01314627
1
01314315
1
2
Centrifugal fan assy
15404100051
1
15404100061
1
3
Brushless DC Motor
15704100009
1
15704100009
1
4
Motor
15705306
1
15704118
1
5
Motor
15705307
1
1570411801
1
6
Lower Cover Plate Sub-Assy
01265357
1
01264213
1
7
Right Side Plate Assy
01314321
1
01314312
1
8
Front Side Plate assy 2
01314627
1
01314315
1
9
Seal Of Connection Pipe sub-assy
01494709
1
01494709
1
10
Main Board
30226000064
1
30221000023
1
11
Terminal Board
4201800002601
1
4201800002601
1
12
Terminal Board
42010259
1
42010259
1
13
Reactor
43130189
1
43130189
1
14
Main Board
30221000018
1
30226000064
1
15
Radiator
49018000068
1
49018000068
1
16
Electric Box Assy
01394100450
1
01394100450
1
17
Electric Expand Valve Fitting
4304413205
1
4304413205
1
