GREE GMV5 INDOOR UNIT SERVICE MANUAL
197

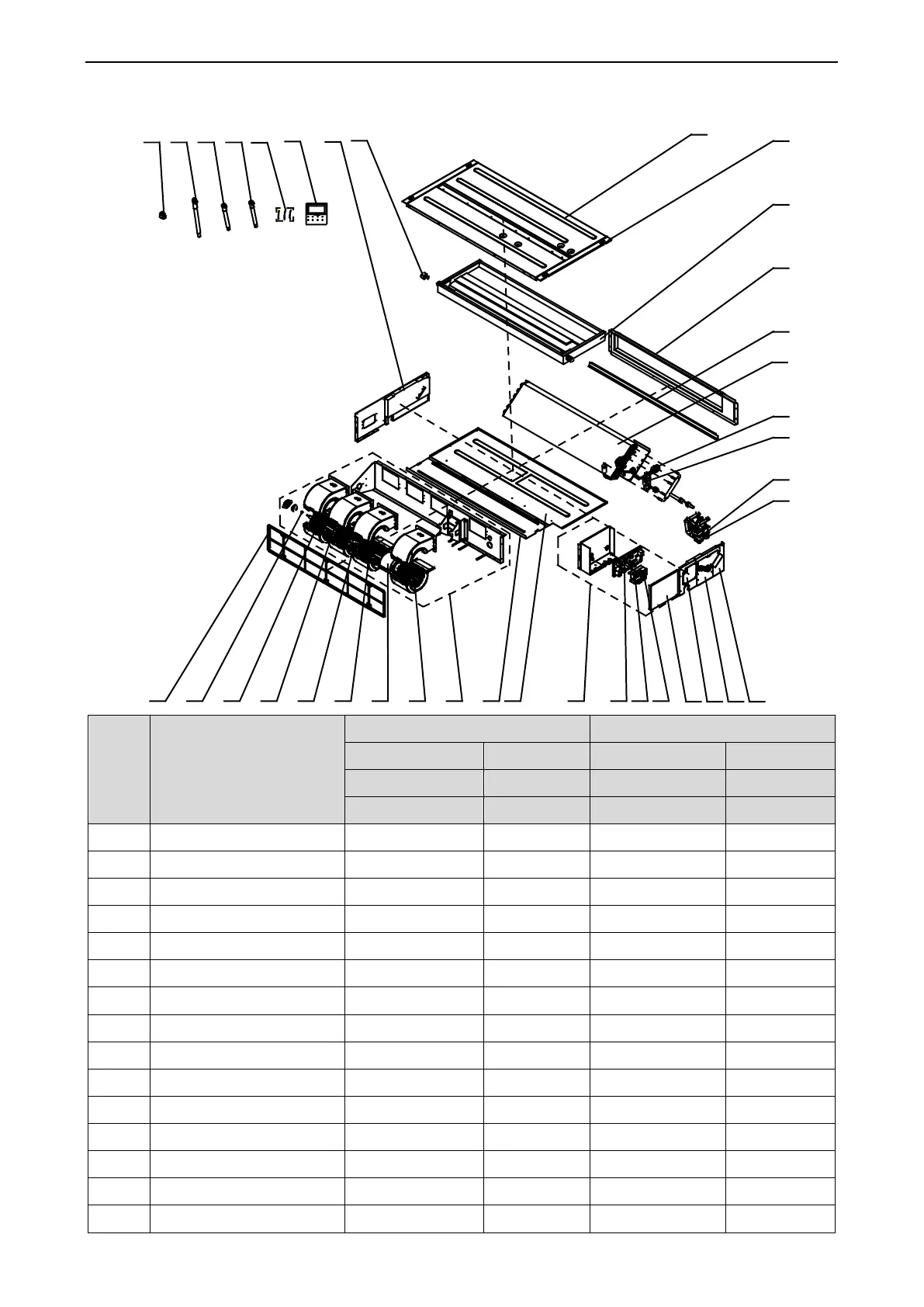

Exploded View of GMV-ND56PLS/A-T
、
GMV-ND63PLS/A-T:
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
19191818
1716
20
21
22
23
25
26
2727
2828
2929
32
31
30
3334
24
353637
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND56PLS/A-T
CM800N3510
GMV-ND63PLS/A-T
CM800N3430
Part code
Quantity
Part code
Quantity
1
Filter Sub-Assy
11725208
1
11725208
1
2
Fan Bearing
76512210
1
76512210
1
3
Centrifugal Fan
10425200
3
10425200
3
4
Rotary Axis Sub-Assy
73018000029
1
73018000029
1
5
Joint Slack
73018731
1
73018731
1
6
Rear Volute Casing
26905206
3
26905206
3
7
Fan Motor
15704100001
1
15704100001
1
8
Front Volute Casing
26905205
3
26905205
3
9
Centrifugal fan assy
15404100024
1
15404100024
1
10
Cover board (Fan motor)
01265338
1
01265338
1
11
Bottom Cover Plate
01265337
1
01265337
1
12
Main Board
30226000029
1
30226000029
1
13
Terminal Board
42011106
1
42011106
1
14
Electric Box Assy
01394100204
1
01394100204
1
15
Terminal Board
4201800002601
1
4201800002601
1
