GREE GMV5 INDOOR UNIT SERVICE MANUAL
201

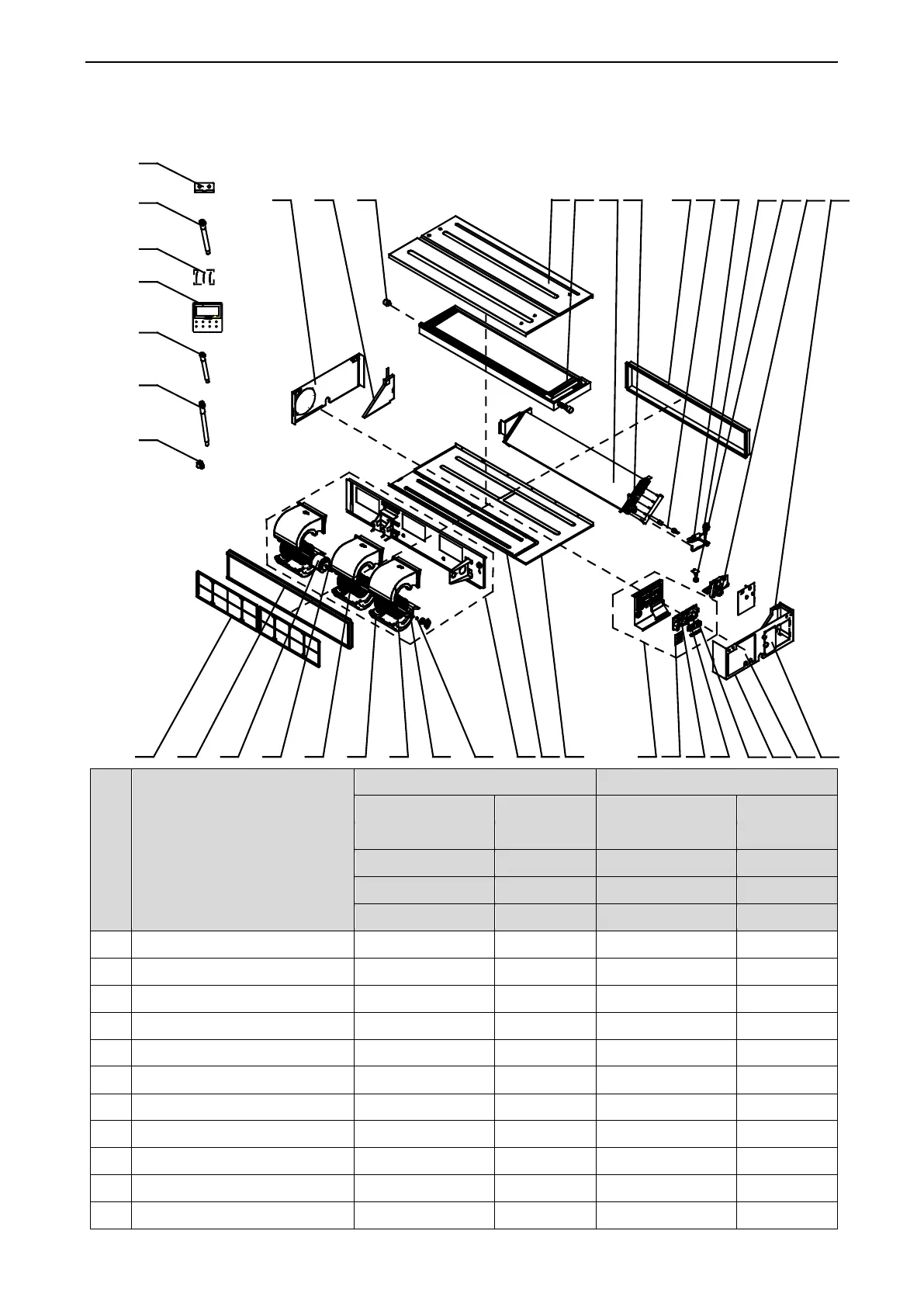

Exploded View of GMV-ND90PLS/A-T, GMV-ND100PLS/A-T, GMV-ND112PLS/A-T, GMV-
ND125PLS/A-T, GMV-ND140PLS/A-T:
35
19 20
2122
1817
151413
121110
987654321
34 33
32
31 30
29 28
27 2324
2526
16
36
37
38
39
4040
4141
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND90PLS/A-T
CM800N3450
GMV-ND125PLS/A-T
CM800N3480
GMV-ND100PLS/A-T
CM800N3460
GMV-ND140PLS/A-T
CM800N3470
GMV-ND112PLS/A-T
CM800N3530
/
/
Part code
Quantity
Part code
Quantity
1
Filter Sub-Assy
11725206
2
11725206
2
2
Air intake side-board Sub-assy
02225271
1
02225271
1
3
Brushless DC Motor
15705200005
1
15705200005
1
4
Joint Slack
73018731
1
73018731
1
5
Centrifugal fan
1041410101
3
1041410101
3
6
Rear volute casing
26905209
3
26905209
3
7
Front volute casing
26905208
3
26905208
3
8
Rotary Axis Sub-Assy
73018000030
1
73018000030
1
9
Fan Bearing
76512210
1
76512210
1
10
Centrifugal fan assy
15404100015
1
15404100015
1
11
Cover Of Air-In
01265344
1
01265344
1
