Gree GMV-ND22C/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
208

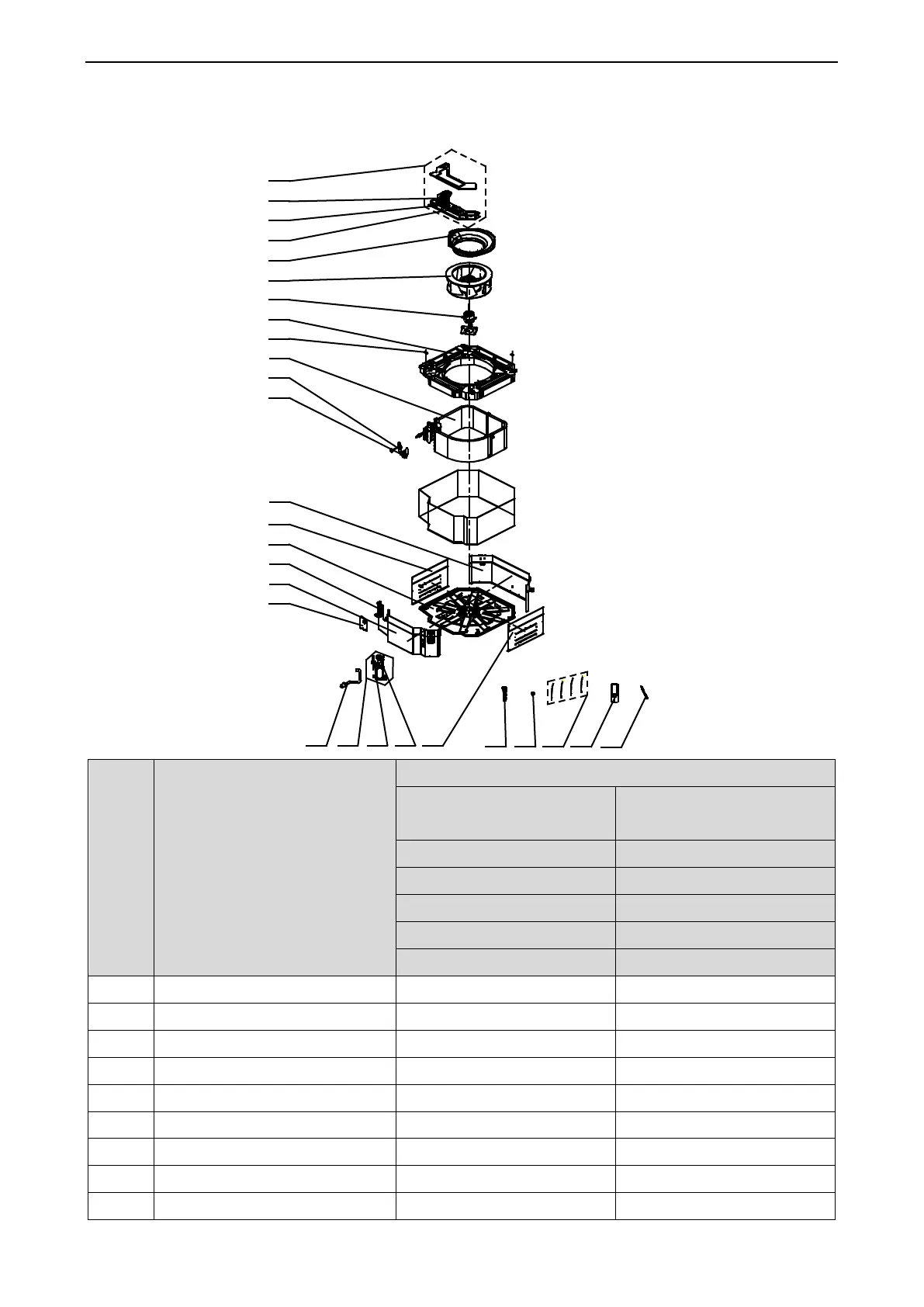

Exploded View of GMV-ND90T/A-T, GMV-ND100T/A-T, GMV-ND112T/A-T, GMV-ND125T/A-T,
GMV-ND140T/A-T:
1
2
3
4
5
6
7
8
9
15
16
17
18
14
10
11
12
13
19 20 21 22 23
24 25 26
27
28
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND90T/A-T
CM500N0460
GMV-ND100T/A-T
CM500N0470
GMV-ND112T/A-T
CM500N0480
GMV-ND125T/A-T
CM500N0480
GMV-ND140T/A-T
CM800N0550
Part code
Quantity
1
Electric Box Assy
01394100209
1
2
Terminal Board
42200000001501
1
3
Terminal Board
4201800002601
1
4
Main Board
30226000029
1
5
Diversion Circle
10372722
1
6
Centrifugal Fan
10310101
1
7
Brushless DC Motor
1570940000301
1
8
Water Tray Assy
'01289400013
1
9
Hook
02112721
2
