GREE GMV5 INDOOR UNIT SERVICE MANUAL
257

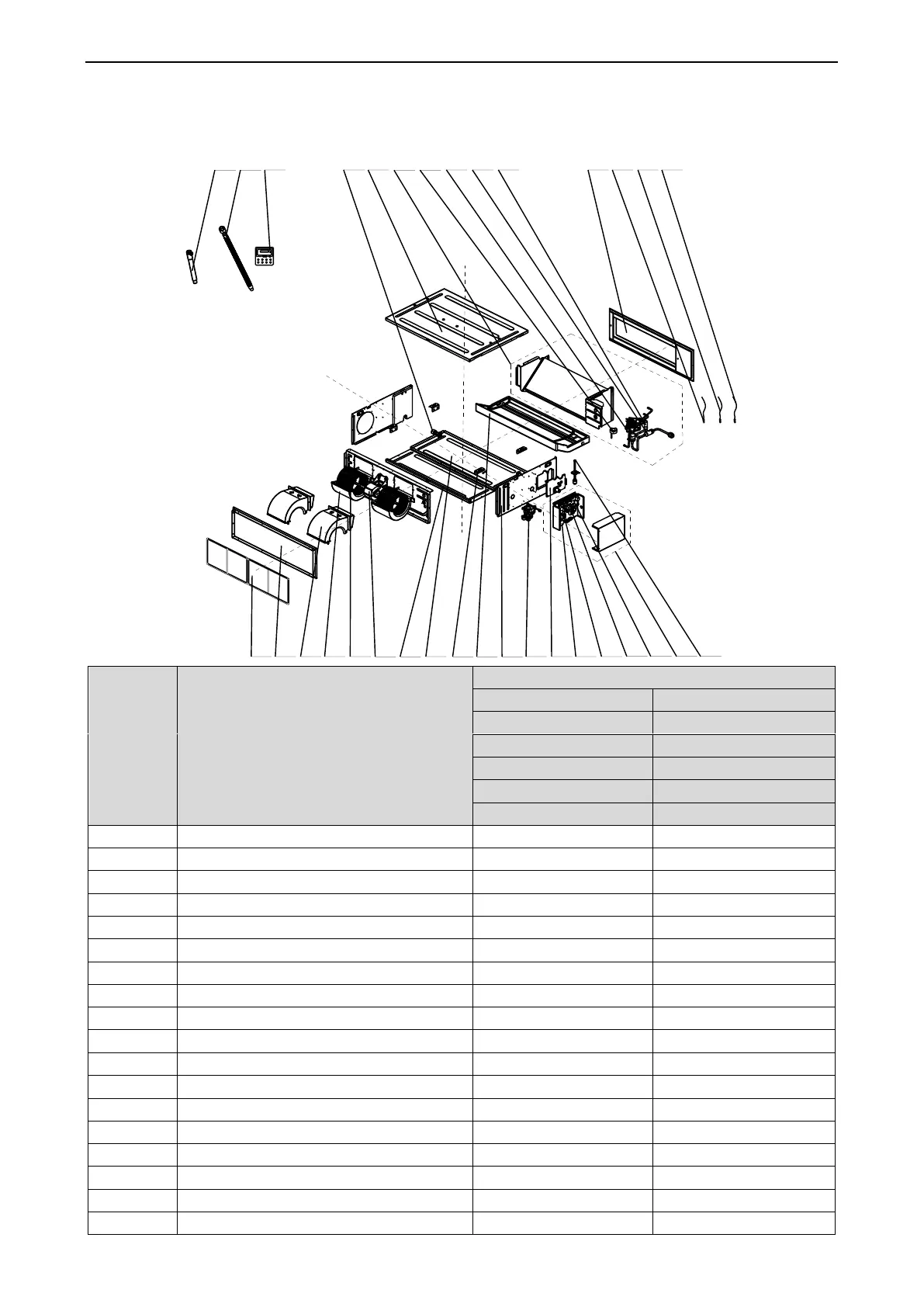

Exploded View of GMV-ND56PHS/B-T, GMV-ND63PHS/B-T, GMV-ND71PHS/B-T, GMV-
ND80PHS/B-T:
严 禁 在潮 湿场
所 使 用
2
3
15
7
6
1
8
12
9
5
11 13
4
10
14 18
16
17
19
2226
25
2324
21
20
3
3
3
2
3
1
3 0
27
2 8
2 9
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND56PHS/B-T
CM810N0380
GMV-ND63PHS/B-T
CM810N0390
GMV-ND71PHS/B-T
CM810N0400
GMV-ND80PHS/B-T
CM810N0410
Part code
Quantity
1
Centrifugal Fan Assy
017026000002
1
2
Filter Sub-Assy
111001000045
2
3
Propeller Housing(Upper)
26905200078
2
4
Centrifugal Fan
10455200003
2
5
Brushless DC Motor
15705200016
1
6
Propeller Housing(Lower)
26905200079
2
7
Blower Mounting Plate Sub-Assy
01325200079
1
8
Cover Of Air-In
01265200132
1
9
Hook
02112466
4
10
Bottom Cover Plate
01265200131
1
11
Seal plate Assy
01495200079
1
12
Water Level Switch
45020216
1
13
Water Pump
43138000058
1
14
Left Side Plate Assy
01315200147
1
15
Electric Box Assy
100002000985
1
16
Inductance
43128000014
1
17
Terminal Board
4201115402
1
18
Main Board
30226000089
1
