Gree GMV-ND22C/A-T Service Manual

GREE GMV5 INDOOR UNIT SERVICE MANUAL
267

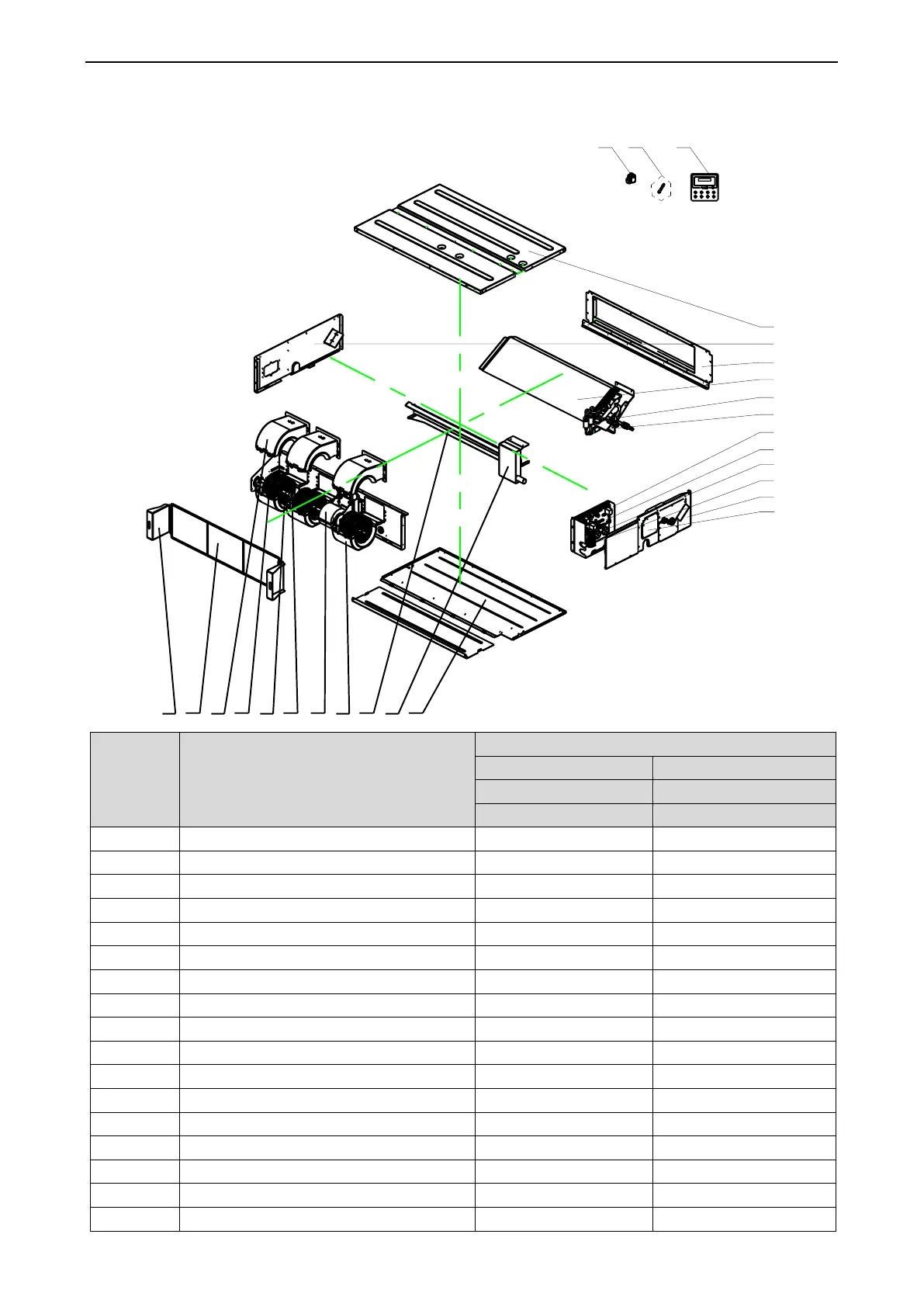

Exploded View of GMV-ND45ZA/A-T:
2
3
4 5 6 7 8 9 1010 1111
1212
1313
1414
1515
1616
1717
1818
1919
2020
2121
2222
2323
2525 24242626
1
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND45ZA/A-T
CM810N1470
Part code
Quantity
1
Supporter
012060002587
2
2
Filter Sub-Assy
111001000101
1
3
Front Volute Casing
26905205
3
4
Centrifugal Fan
10425200
3
5
Rotray Axis Sub-Assy
73018020
1
6
Joint Slack
73018731
1
7
Brushless DC Motor
15704100001
1
8
Rear Volute Casing
26905206
3
9
Water Tray Assy
000069060001
1
10
Water Tray Assy
000069000112
1
11
Bottom Cover Plate Assy
000133000015
1
12
Sealplate sub-assy (drainage)
01495318
1
13
Left Side Plate Assy
01315200087
1
14
Terminal Board
4201800002601
1
15
Terminal Board
42000100000101
1
16
Main Board
30226000029
1
17
Electric Box Assy
100002004224
1
