Gree GMV-ND28C/A-T - Page 154

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
150

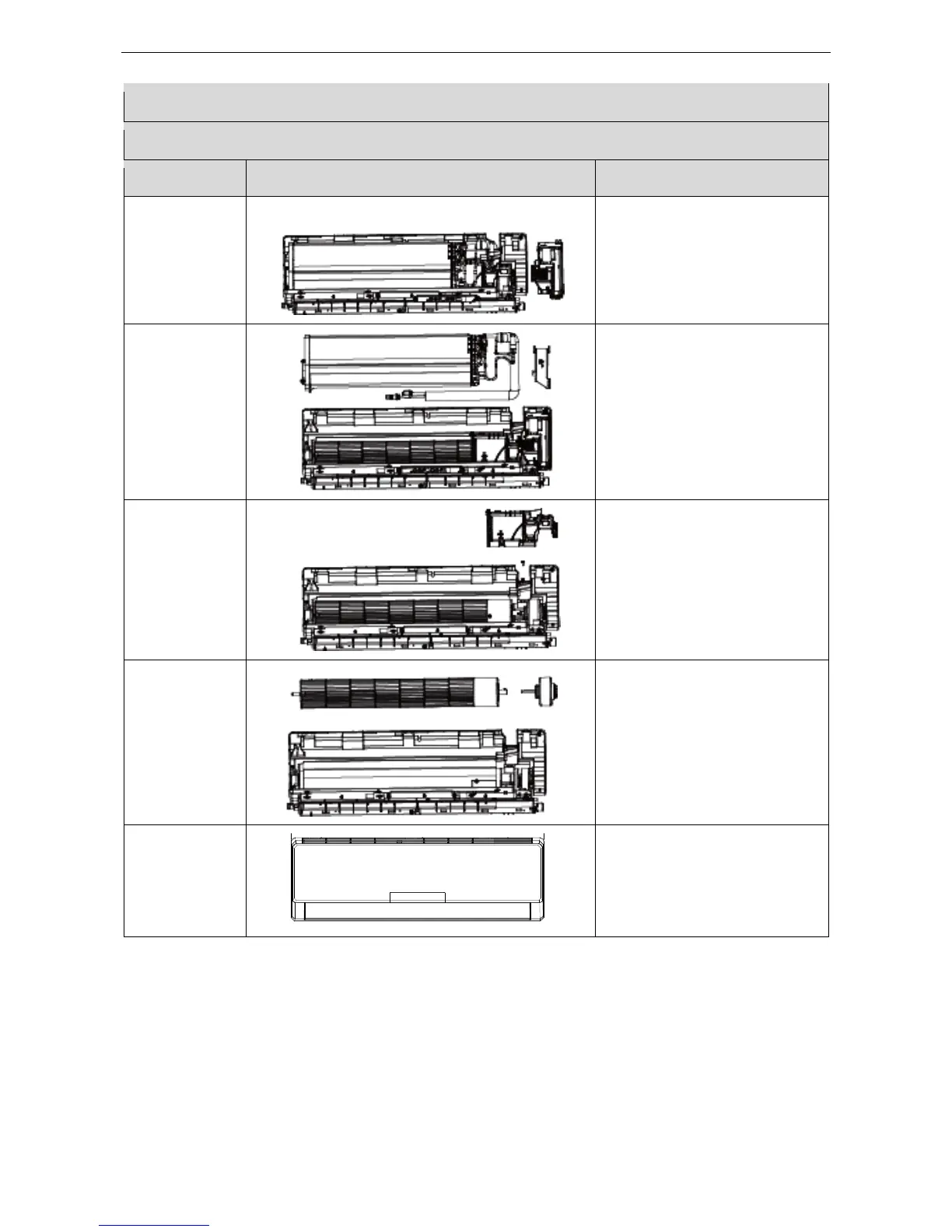

Removal of Fan Motor
Remark: before removing, making sure power is disconnected.
Step
Diagram
Operation Procedure
7. Remove the
electrical box
●Unscrew the screws fixing the
electrical box with a screwdriver.
●Remove the electrical box.
8. Remove the
evaporator
●Use a screwdriver to unscrew the
screws fixing the press plate of
connection pipe on the back of the
unit and take off the press plate.
●Unscrew the screws of evaporator
with a screwdriver and then remove
the evaporator.
9.Remove
motor’s pressing
plate
●Unscrew the fixing screws of the
pressing plate with a screwdriver and
then remove it.
10. Remove the
motor and fan
●Take off the motor and fan directly.
●Use a screwdriver to unscrew the
screws connecting the motor and the
fan.
11. Install a new
motor.
●Assemble units based on the
reverse order of this procedure and
power on the units for test.
