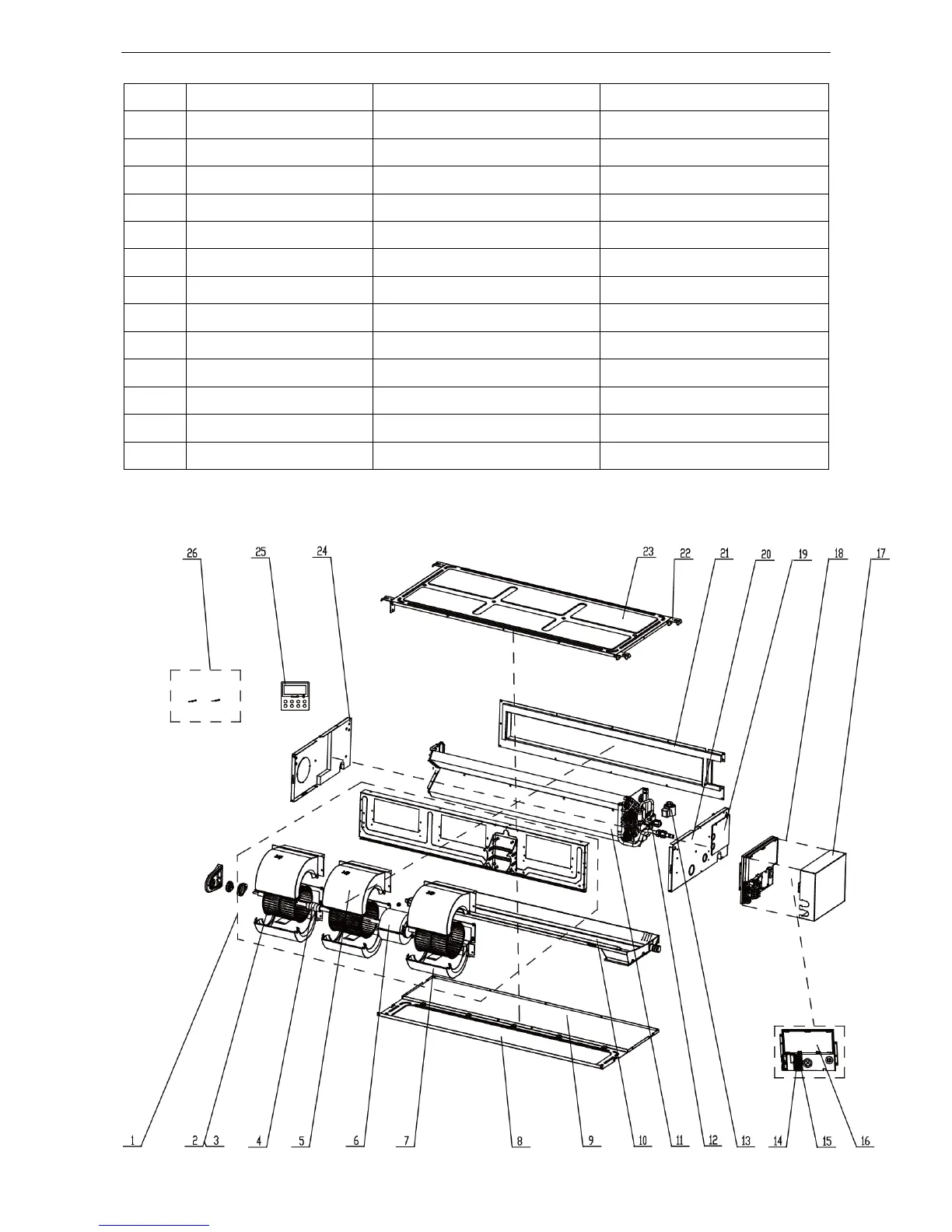

Exploded View of GMV-ND40PL/B-T、GMV-ND45PL/B-T、GMV-ND50PL/B-T、GMV-ND56PL/B-T、GMV-
ND63PL/B-T：
12
Terminal Board
' 4201800002601
1
13
Main Board
` 30226000029
1
14
Electric Box Cover
` 01425200023
1
15
Electric Box Assy
` 01394100160
1
16
Closing Plate Sub-Assy
` 01494100010
1
17
Left Side Plate Assy
` 01314100076
1
18
Air Outlet Frame Assy
` 01374100057
1
19
Hook
` 02112446
2
20
Hook
` 01344100034
2
21
Evaporator Assy
` 01024100039
1
22
Top Cover Board Assy
` 01265200066
1
23
Right Side Plate Assy
` 01315200053
1
24
Display Board
` 01315200053
1
25
Sensor Sub-assy
` 39004168G
1
