MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
215

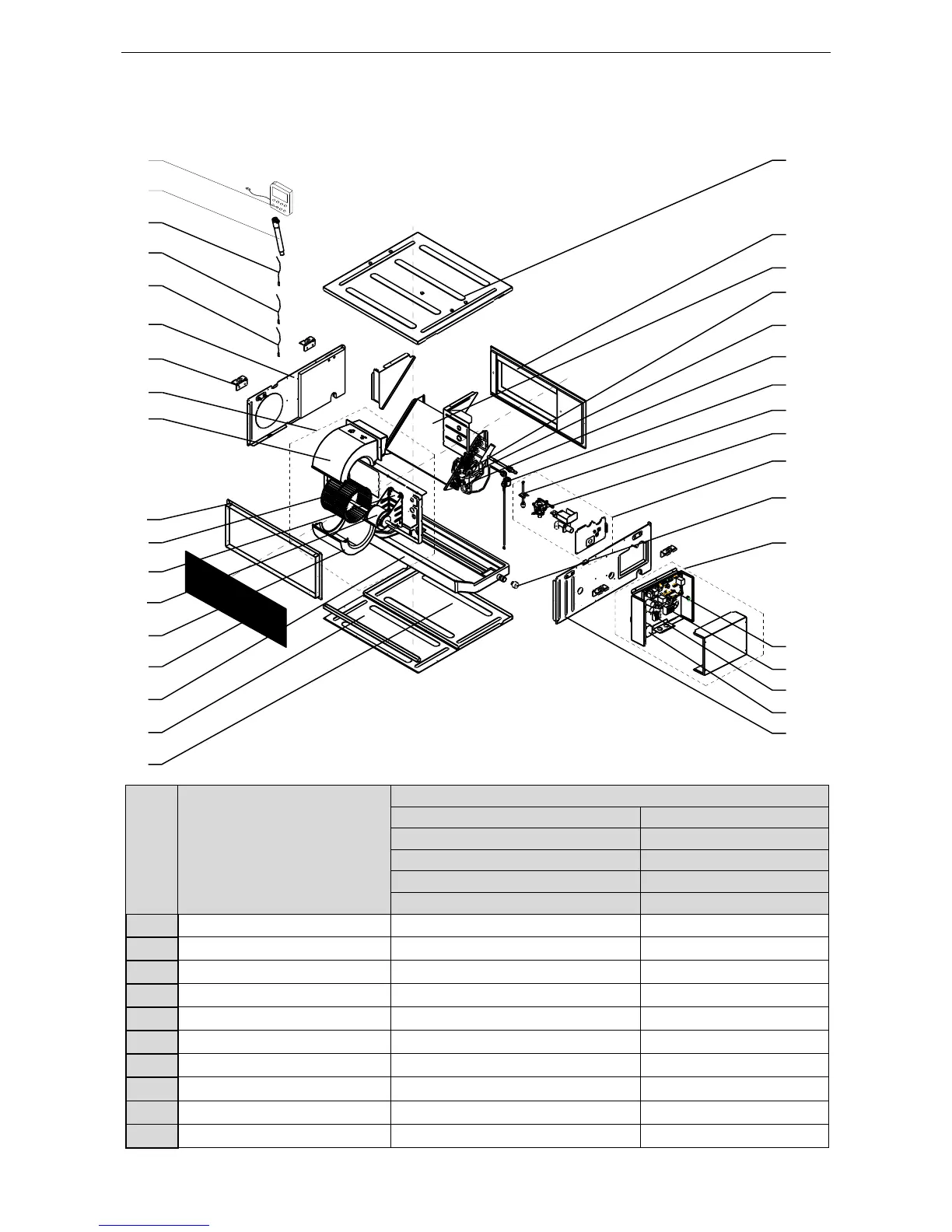

Exploded View of GMV-ND40PHS/B-T、GMV-ND45PHS/B-T、GMV-ND50PHS/B-T：
17
13
9
7
5
3
1
6
14
20
33
30
29
34
19
10
12
15
22
21
16
28
27
26
25
4
2
31
32
8
11
24
18
23
35
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND40PHS/B-T
CM810N0350
GMV-ND45PHS/B-T
CM810N0360
GMV-ND50PHS/B-T
CM810N0370
Part code
Quantity
1
Display Board
'30296000040
1
2
Drain Hose Sub-Assy
'05232050
1
3
Temperature Sensor
'390000454
1
4
Temperature Sensor
'390000592
1
5
Temperature Sensor
'3900005910
1
6
Right Side Plate Assy
'01315200148
1
7
Hook
'02112466
4
8
Centrifugal Fan Assy
'15404100074
1
9
Propeller Housing(Upper)
'26905200078
1
10
Return Air Frame Sub-Assy
'017026000004
1
