MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
165

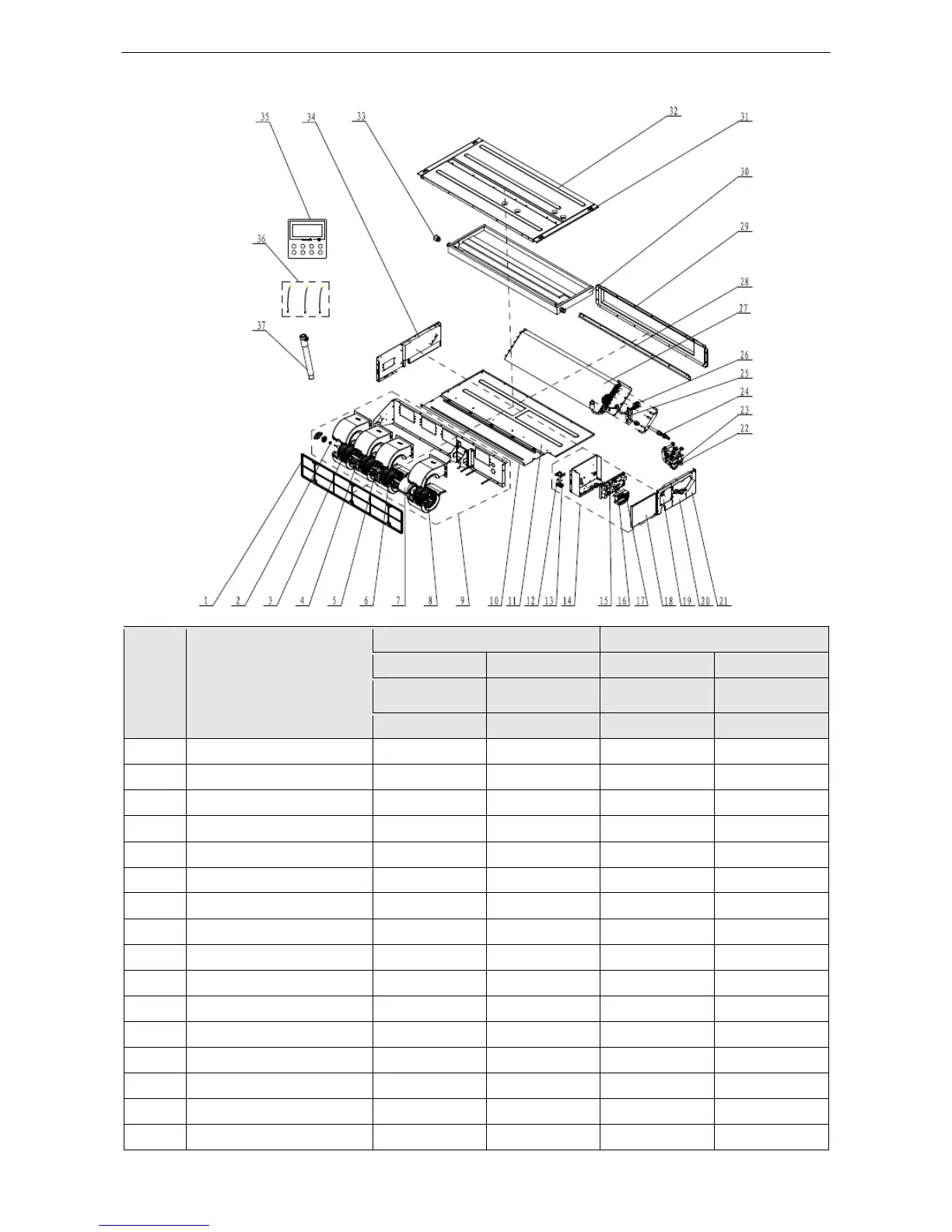

Exploded View of GMV-ND56PLS/A-T、GMV-ND63PLS/A-T：
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-
ND56PLS/A-T
CM800N3510
GMV-
ND63PLS/A-T
CM800N3430
Part code
Quantity
Part code
Quantity
1
Filter Sub-Assy
'11725208
1
'11725208
1
2
Fan Bearing
'76512210
1
'76512210
1
3
Centrifugal Fan
'10425200
4
'10425200
3
4
Rotary Axis Sub-Assy
` 73018000029
1
` 73018000029
1
5
Joint Slack
'73018731
1
'73018731
1
6
Rear Volute Casing
'26905206
4
'26905206
3
7
Fan Motor
'15704100001
1
'15704100001
1
8
Front Volute Casing
'26905205
4
'26905205
3
9
Centrifugal fan assy
` 15404100024
1
` 15404100024
1
10
Cover board (Fan motor)
'01265338
1
'01265338
1
11
Bottom Cover Plate
'01265337
1
'01265337
1
12
Humidity Sensor
0
0
0
0
13
Humidity Sensor Cover
0
0
0
0
14
Electric Box Assy
'01394100204
1
'01394100204
1
15
Main Board
'30226000029
1
'30226000029
1
16
Terminal Board
'42011106
1
'42011106
1
