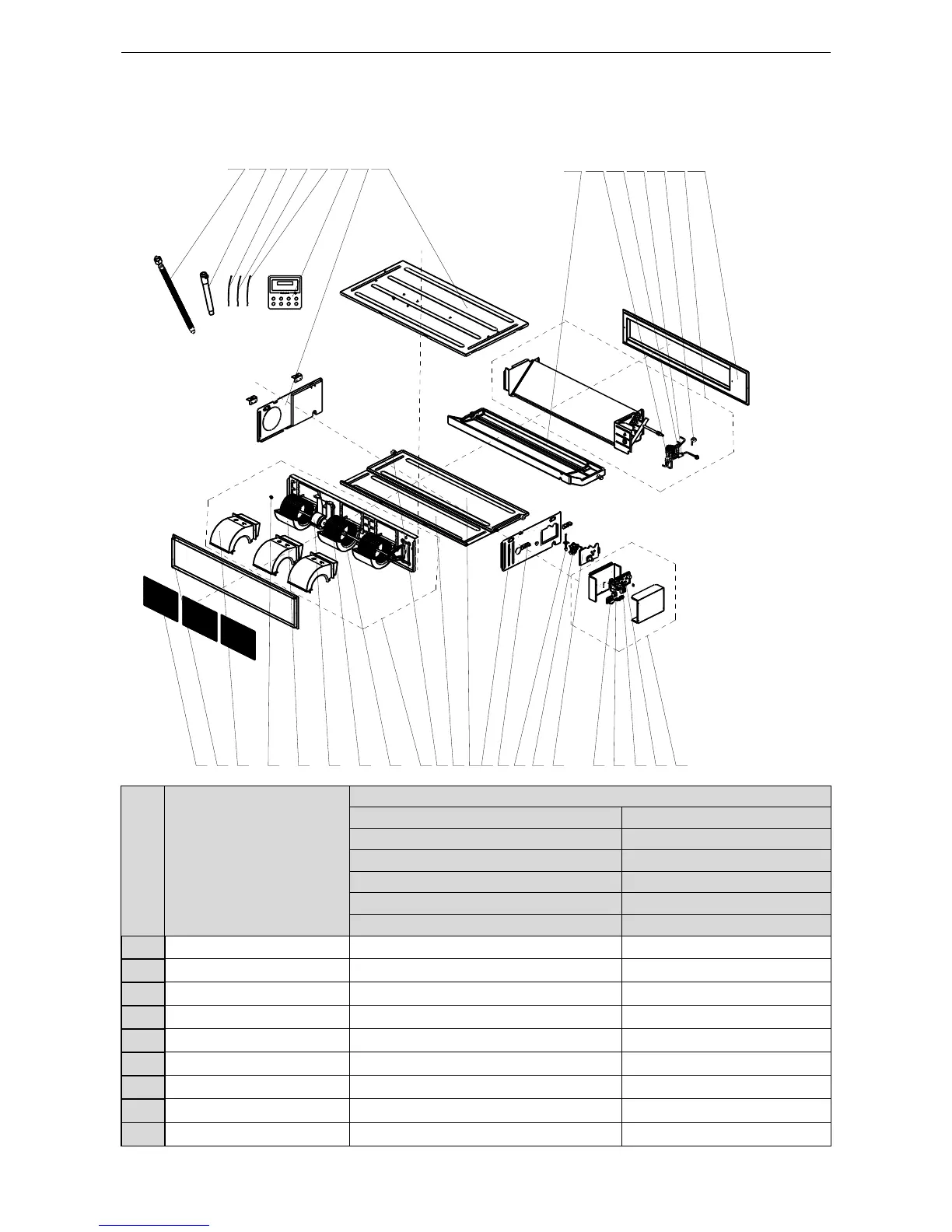

Exploded View of GMV-ND90PHS/B-T、GMV-ND100PHS/B-T、GMV-ND112PHS/B-T、GMV-ND125PHS/B-T：
2
3
4 5 6 7 8
12
15
16 17
18 19
9 10 11 13 14
2829
30
31
3233
27 26 25
34353637
严禁 在 潮 湿 场
所使 用
20 21 22
2324
1
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND90PHS/B-T
CM810N0420
GMV-ND100PHS/B-T
CM810N0430
GMV-ND112PHS/B-T
CM810N0440
GMV-ND125PHS/B-T
CM810N0450
Part code
Quantity
1
Filter Sub-Assy
111001000052
3
2
Return Air Frame Sub-Assy
'017026000003
1
3
Propeller Housing(Upper)
'26905200078
3
4
Fan Bearing
'76512210
1
5
Propeller Housing(Lower)
'26905200079
3
6
Brushless DC Motor
'1570940000601
1
7
Centrifugal Fan
'10455200003
3
8
Joint Slack
'73018731
1
9
Centrifugal Fan Assy
'000052000028
1
