Multi Variable Air Conditioners Ducted Type Indoor Unit
15

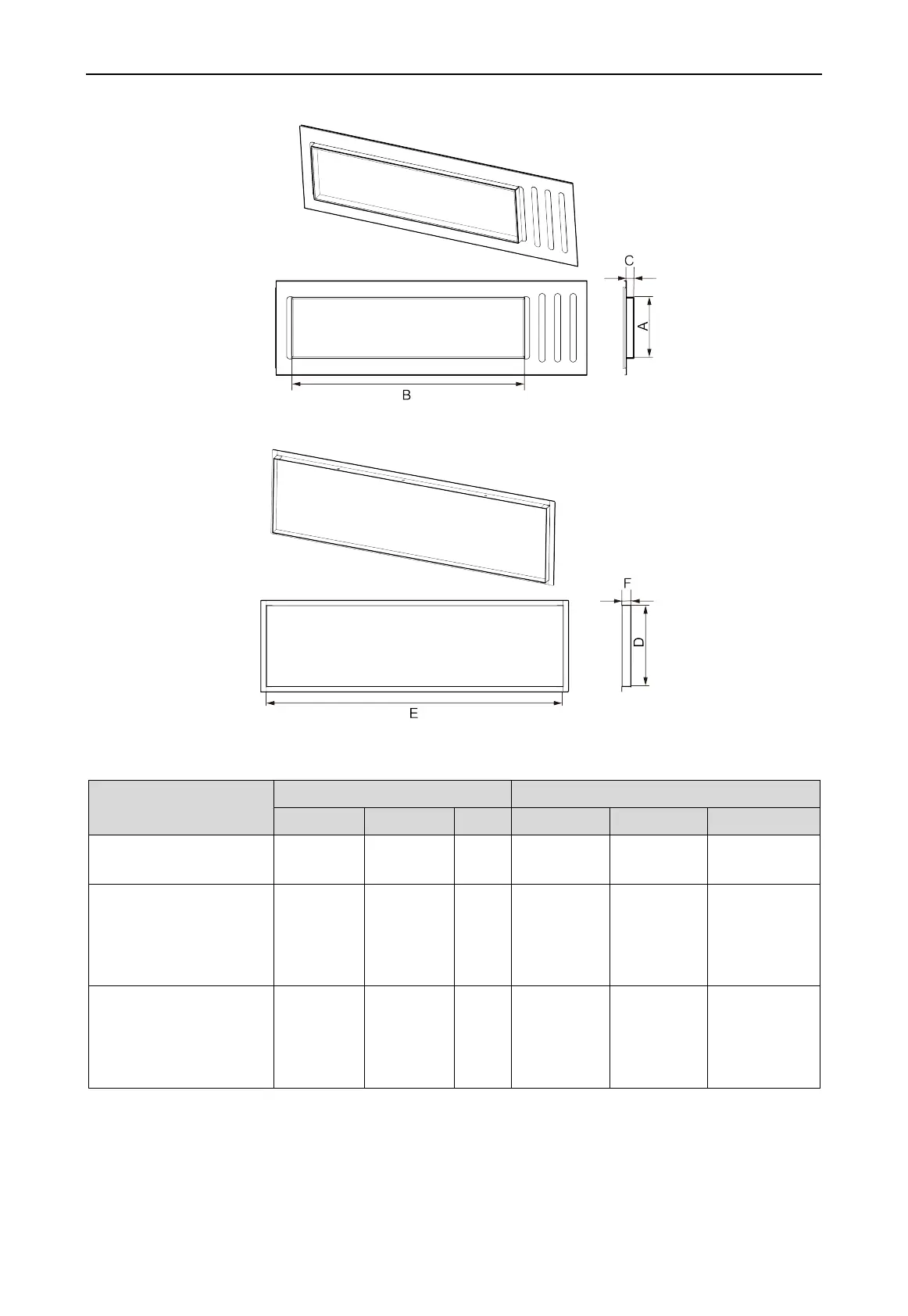

4.4.1 Shape and Size of Air Outlet and Air-return Opening
Fig.4.4.1 Air Outlet
Fig.4.4.2 Air-return Opening
Unit: mm (inch)
Model
Size of Air Outlet Size of Air-return Opening
A B C D E F
GMV-ND07PHS/B-T(U)
GMV-ND09PHS/B-T(U)
195
(7-5/8)
451
(17-3/4)
25
(1)
264
(10-3/8)
660
(26)
29
(1-1/8)
GMV-ND12PHS/B-T(U)
GMV-ND15PHS/B-T(U)
GMV-ND18PHS/B-T(U)
GMV-ND22PHS/B-T(U)
GMV-ND24PHS/B-T(U)
195
(7-5/8)
751
(29-9/16)
25
(1)
264
(10-3/8)
960
(37-3/4)
29
(1-1/8)
GMV-ND30PHS/B-T(U)
GMV-ND36PHS/B-T(U)
GMV-ND42PHS/B-T(U)
GMV-ND48PHS/B-T(U)
GMV-ND54PHS/B-T(U)
195
(7-5/8)
1151
(45-5/16)
25
(1)
264
(10-3/8)
1360
(53-1/2)
29
(1-1/8)
