Multi Variable Air Conditioners Ducted Type Indoor Unit
16

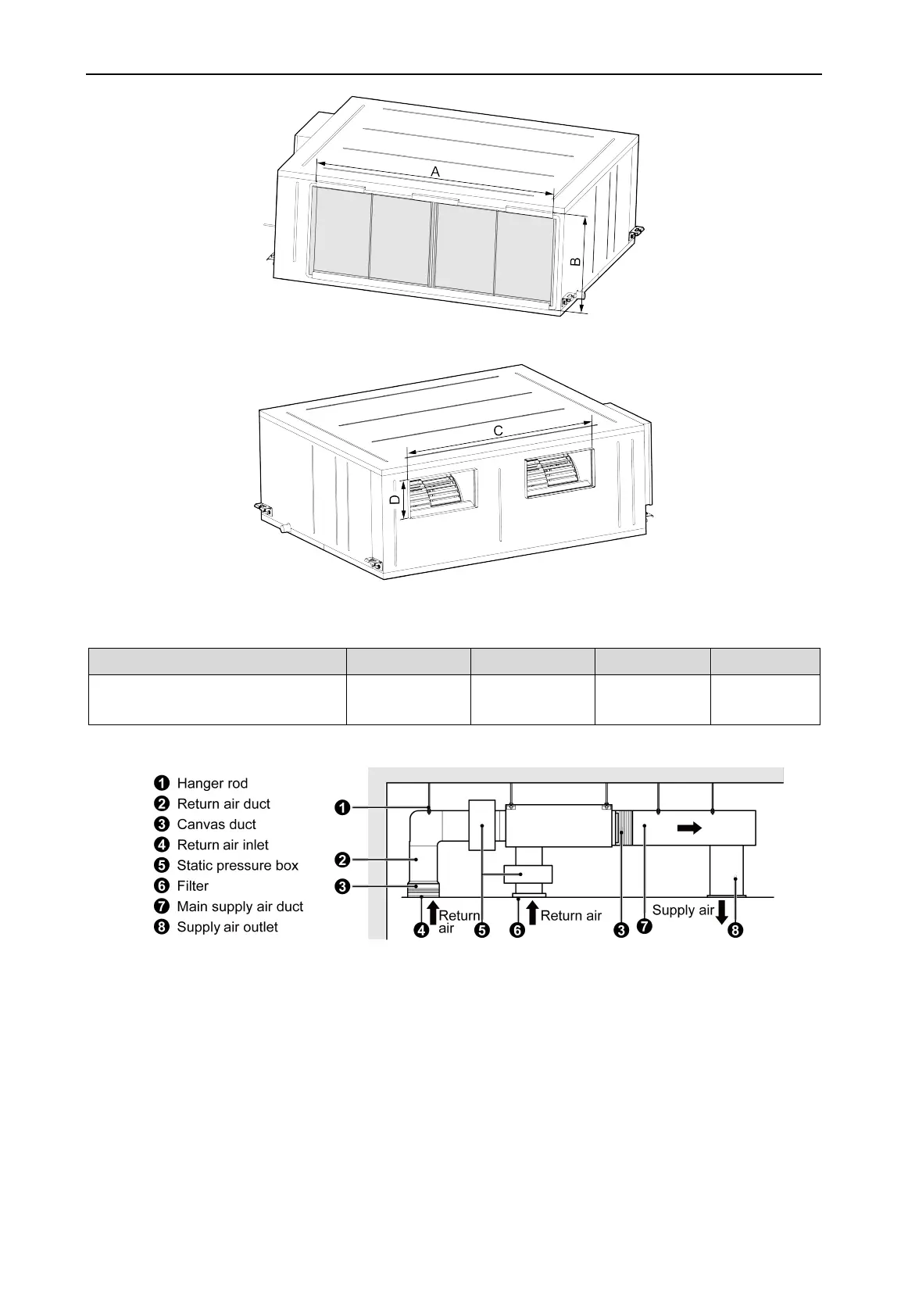

Fig.4.4.3 Air-return Opening
Fig.4.4.4 Air Outlet
Unit: mm (inch)
Model A B C D
GMV-ND72PH/B-T(U)
GMV-ND96PH/B-T(U)
1023
(40-1/4)
422
(16-5/8)
872
(34-3/8)
164
(6-1/2)
4.4.2 Installation of Air-out Duct
Fig.4.4.5
