0 67 INSTALLATION
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL
GMV-ND224PH/A-T (mm)
A
B
C
D
E
F
1353
632
992
1150
192
327
GMV-ND280PH/A-T (mm)
A
B
C
D
E
F
1563
706
992
1350
192
402

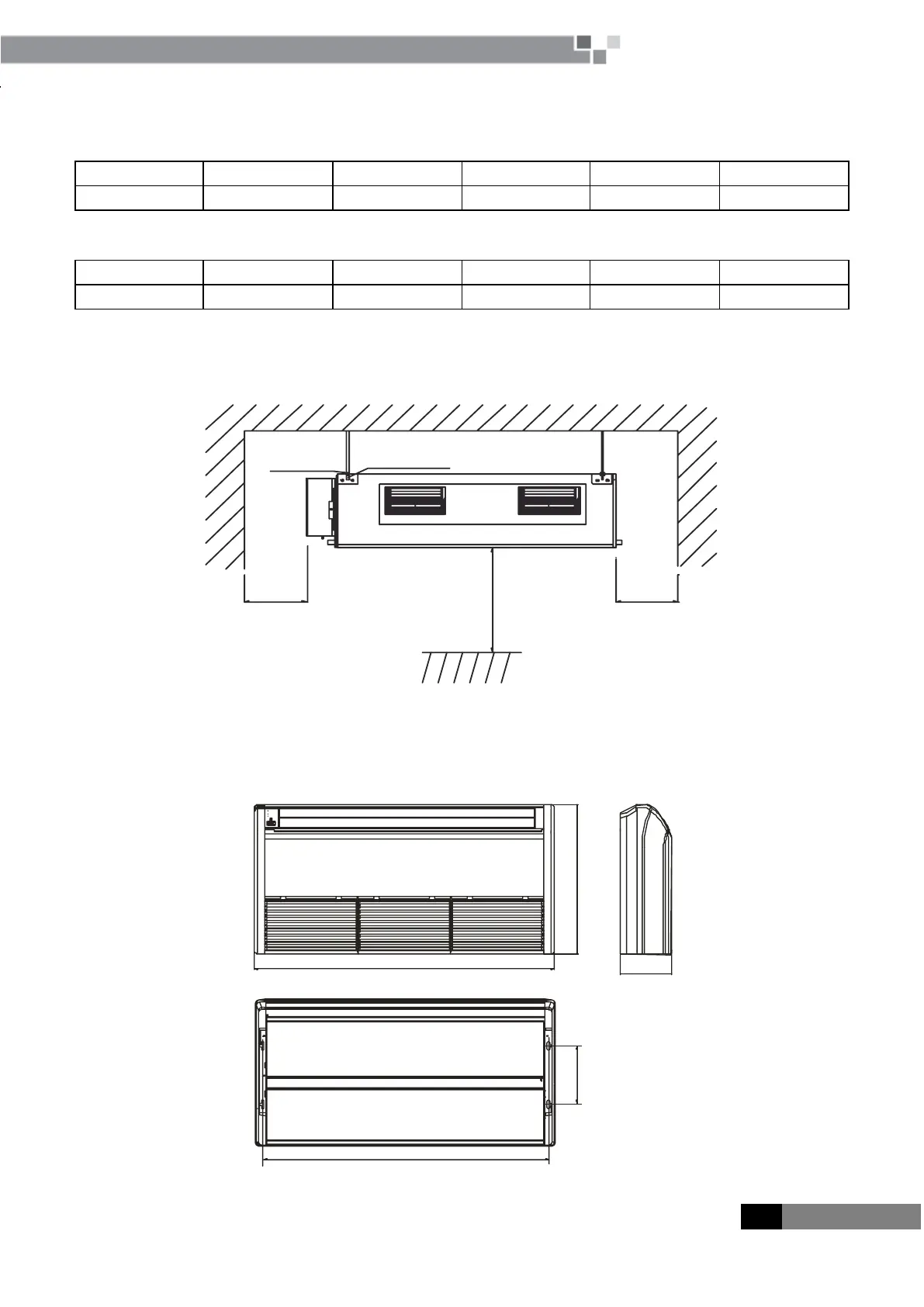

② Space Dimension for Installation: (mm)
>250
>250
>
2
5
0
0
Nut with
Washer
Nut Spring
Washer
5.3 Installation of floor ceiling type indoor unit
① Outline Dimensions:
C
A
H
B
D
