Gree GMV5 Compact Series Service Manual

INSTALLATION 0680
GMV5 COMPACT MULTI VRF UNIT
SERVICE MANUAL
GMV-ND28ZD/A-T, GMV-ND36ZD/A-T, GMV-ND50ZD/A-T, GMV-ND56ZD/A-T (mm)
A
B
C
D
H
1220
225
1158
280
700
GMV-ND63ZD/A-T, GMV-ND71ZD/A-T, GMV-ND90ZD/A-T (mm)
A
B
C
D
H
1420
245
1354
280
700
GMV-ND112ZD/A-T, GMV-ND125ZD/A-T, GMV-ND140ZD/A-T (mm)
A
B
C
D
H
1700
245
1634
280
700

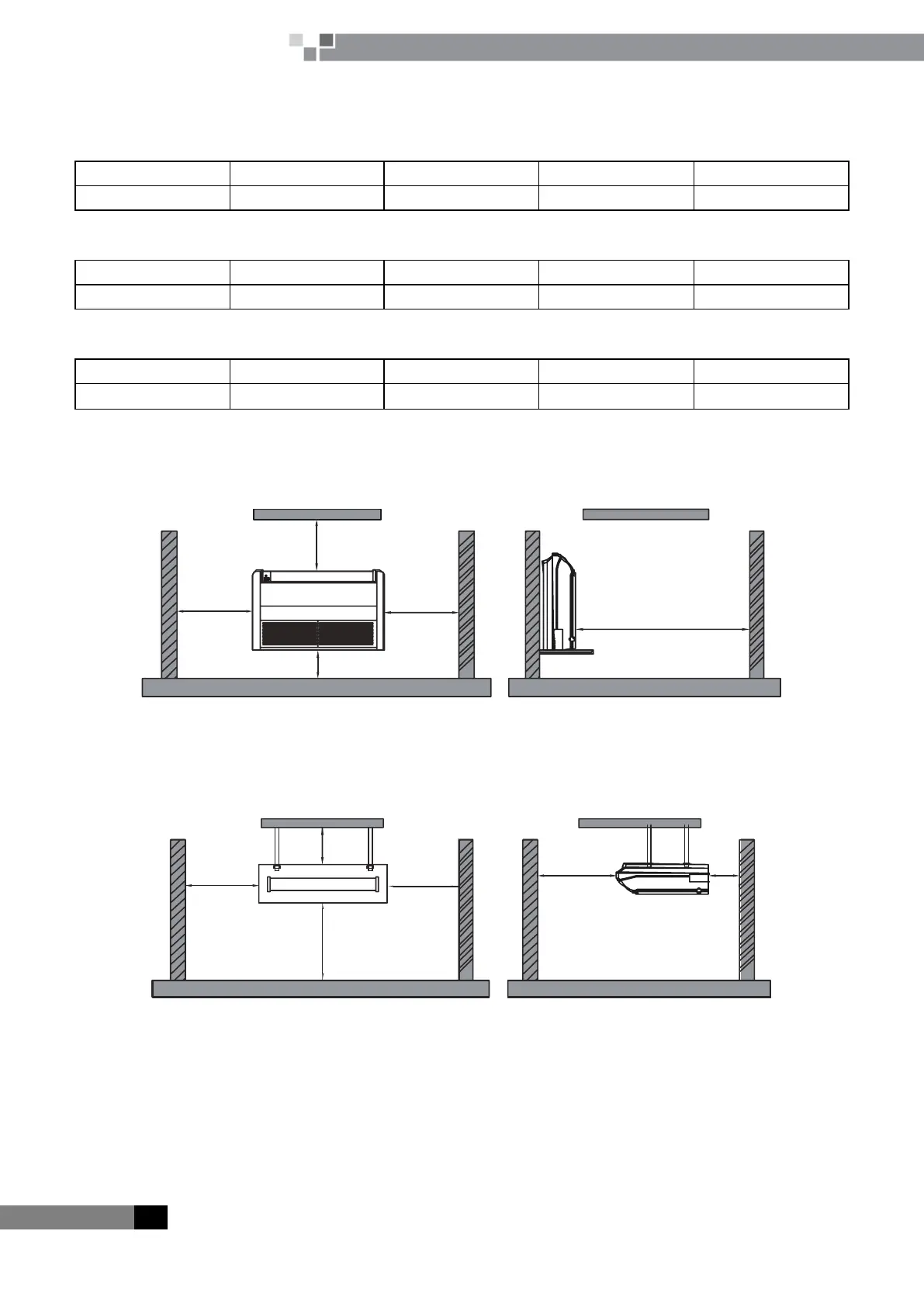

② Space Dimension for Installation: (mm)
1) Floor type
>600
>1000
>300
>600
>1500
2) Ceiling type
>300
>600
>600
>1500
>200>2300
5.4 Installation of wall-mounted indoor unit
① Outline dimensions
