Technical Information
Service Manual
4
3
2
1 15 1314 12
9
11
10
8
5
6

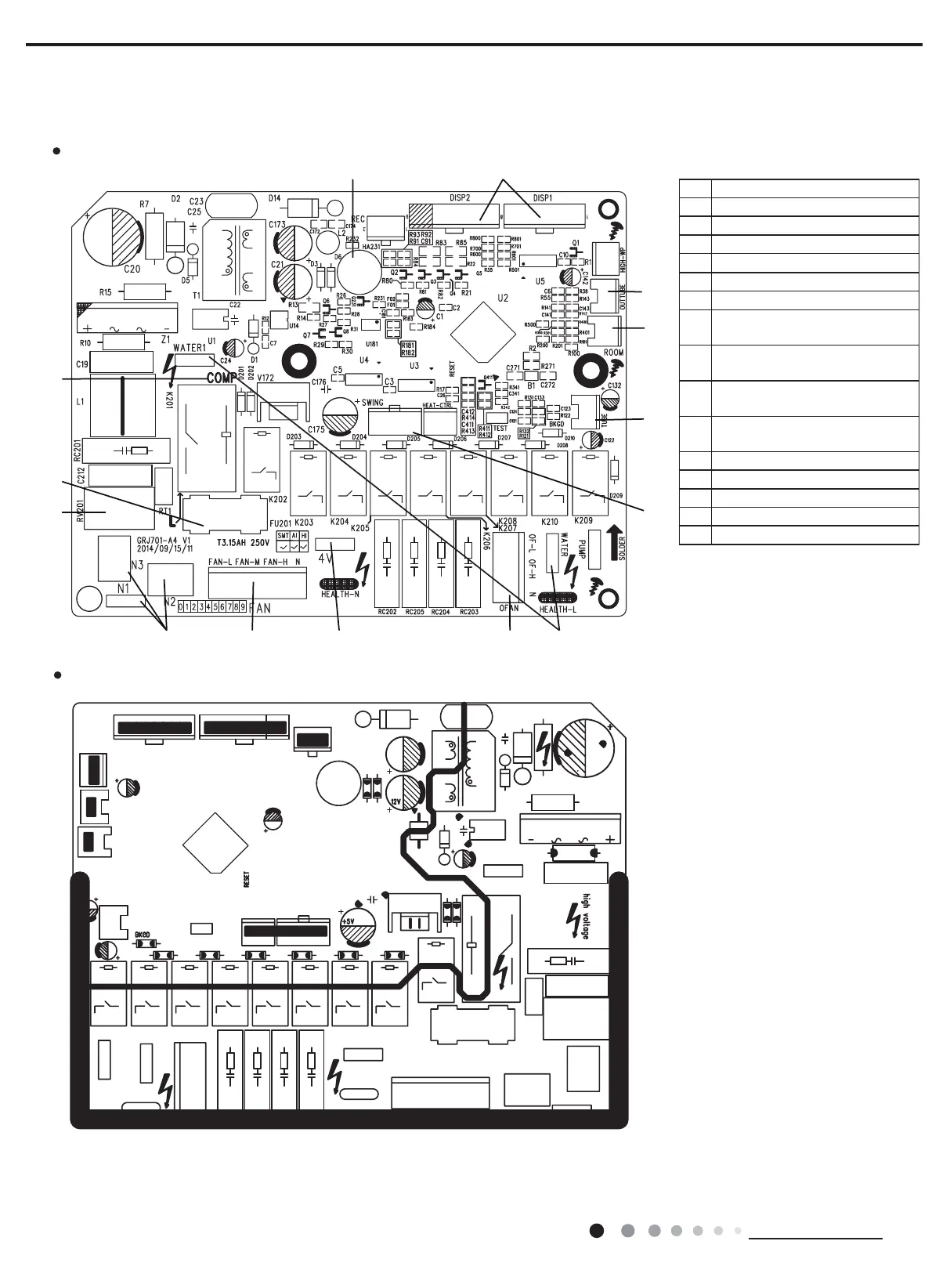

TOP VIEW
BOTTOM VIEW
GPC07AH-K3NNC3D, GPC07AH-K3NNC4D, GPC07AH-K3NNC5D, GPC08AH-K3NNC3D,
GPC08AH-K3NNC4D, GPC08AH-K3NNC5D, GPC09AH-K3NNC3D
NO. NAME
1 Connect neutral wire
2 Piezoresistance
3 Fuse
4 Drive replay of compressor
5 Buzzer
6 Interface of display board
7
Interface of high-level detection
switch
8
Terminal of outdoor tube
temperature sensor
9
Terminal of ambient temperature
sensor
10
Terminal of tube temperature
sensor
11 Interface of swing motor
12 Interface of draw water motor
13 Interface of outdoor fan
14 Interface of 4-way valve
15 Interface of fan
