41
Maintenance
Service Manual

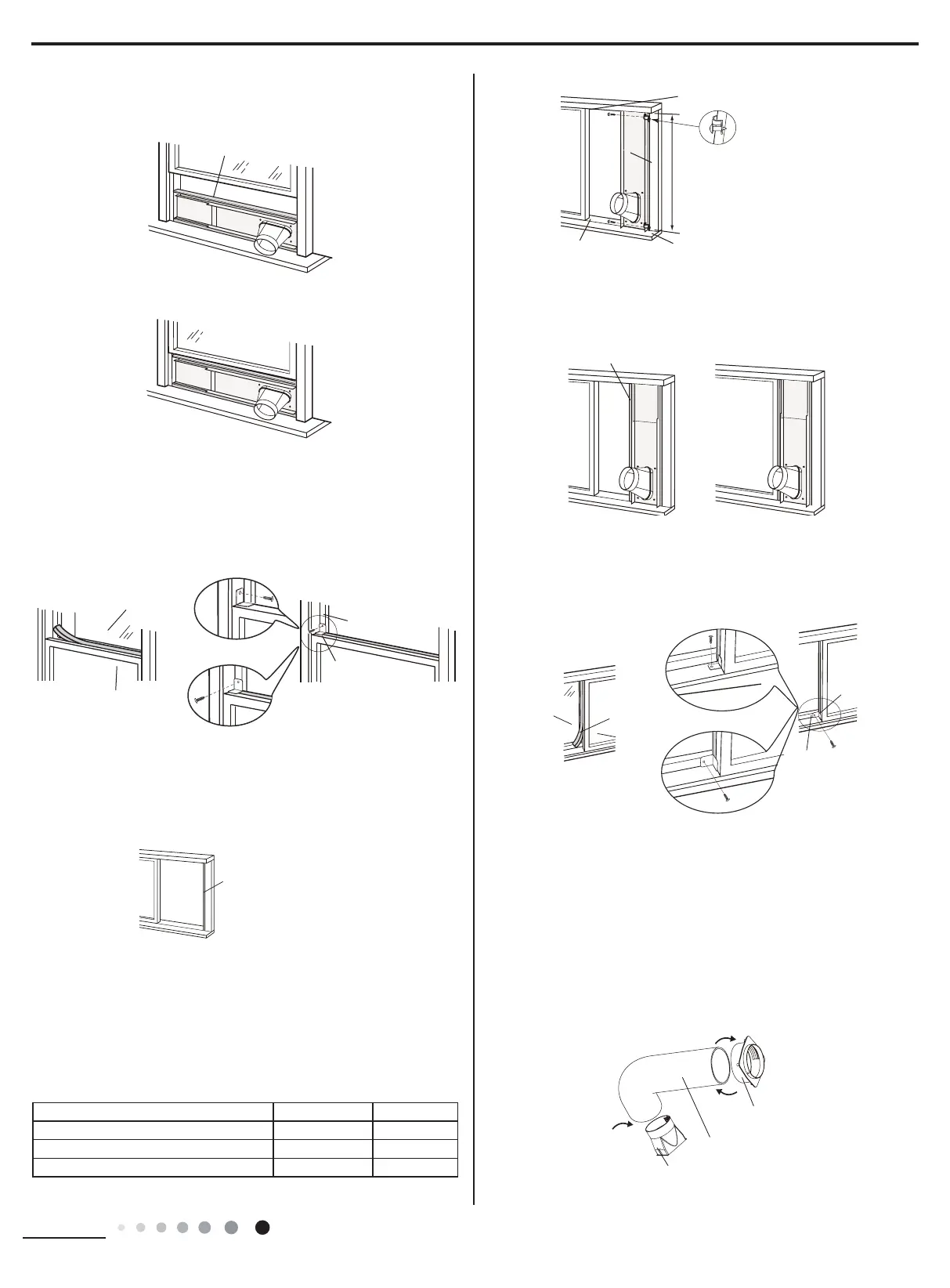

(3) Cut the sponge B to a proper length and attach it to the
window frame.
(4) Close the window securely against the window frame.
(5) Cut the sponge A to a proper length and seal the gap between
upper part of inner window sash and outer window sash.
(6) Fix the inner window with window bracket and screw, so that it
can not slide vertically.
sponge A
outer window
inner window
plastic window
wooden window
window sash
window bracket
B. Installation in a sliding sash window
(1) Cut the sponge B to a proper length and attach it to the
window sash.
sponge B (adhesive)
(2) Open the window; place the window frame on the window
sash vertically; slide the adjustment plate to make the window
frame close to the window sashes at the upper and lower side of
window; x the window frame on the windowsill with screws and
clips of rear connection plate. (required quantity is shown in the
sheet below)
Window height (H) Screw quantity Clip quantity
H≤28 3/11"(718mm) 2 2
28 3/11"(718mm)<H≤36 1/2"(927mm) 3 3
36 1/2"(927mm)<H≤64
"
(1625mm) 4 4
clip of rear connection plate
windowsill
Window height (H)
(3) Cut the sponge B to a proper length and attach it to the window
frame.
(4) Close the window securely against the window frame.
(5) Cut the sponge A to a proper length and seal the gap between
left side of inner window sash and outer window sash.
(6) Fix the inner window with window bracket and screw, so that it
can not slide horizontally.
sponge A
inner window
window sash
window bracke
plastic window
wooden window
A. Install heat discharge pipe
(1) Rotate joint A and joint B clockwise into the two ends of heat
discharge pipe.
joint B
e
joint A
8.3 Installation and Disassembly of
Heat Discharge Pipe
To Next Page
