27
Technical Information
Service Manual

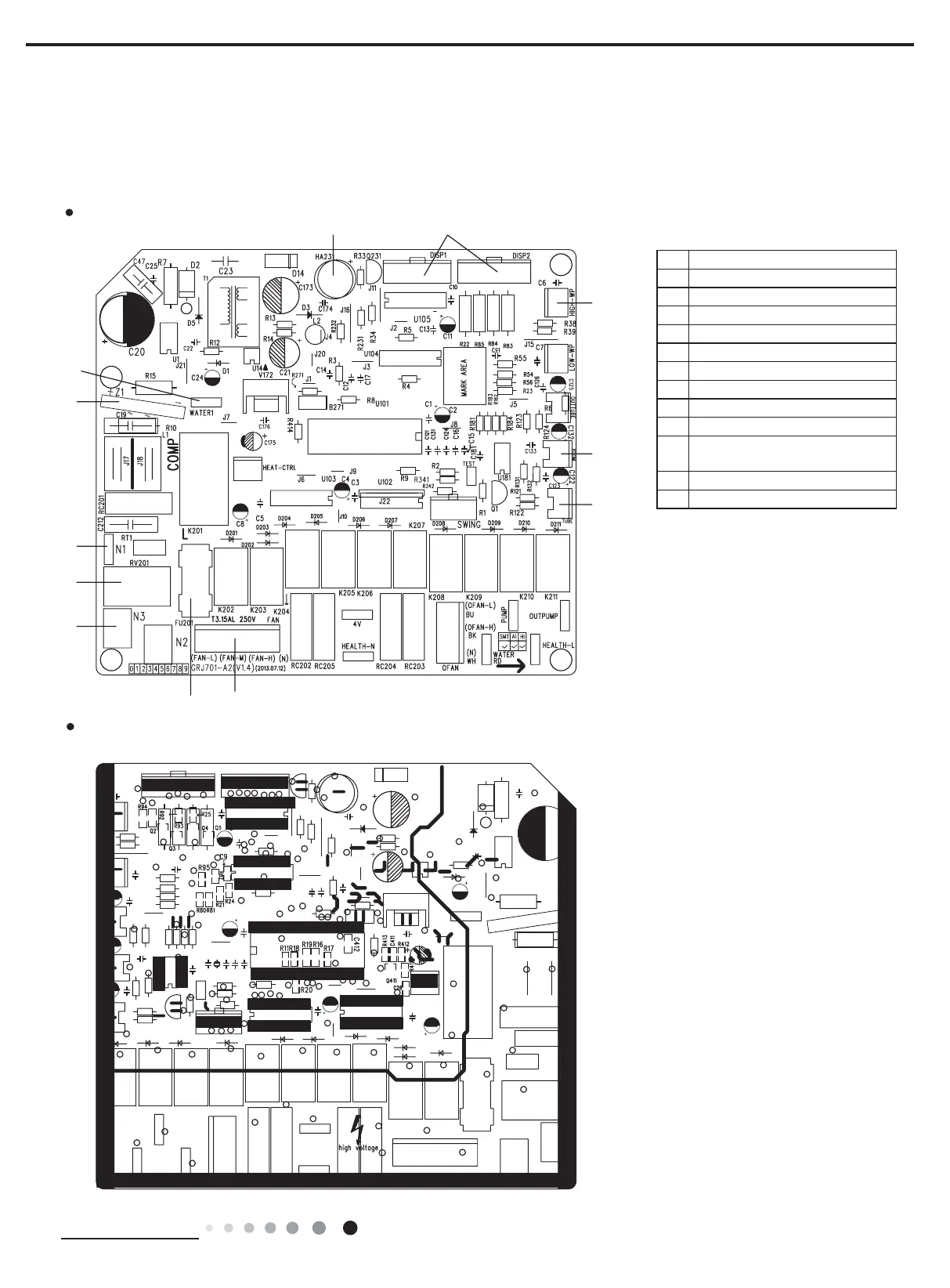

5.2 PCB Printed Diagram
TOP VIEW
BOTTOM VIEW
GPC08AH-K3NNC4A, GPC08AH-K3NNC4B, GPC07AH-K3NNC4B, GPC08AH-K3NNC5A, GPC09AH-K3NNC5A,
GPC07AH-K3NNC5B, GPC08AH-K3NNC5B, GPC08AH-K3NNC5C, GPC09AH-K3NNC5C
(1)Silk screen on main board
NO. NAME
1 Indoor fan
2 Fuse
3 Copper n N3 of neutral wire
4 Piezoresistor
5 Copper n N1 of neutral wire
6 Rectier
7 Water1
8 Buzzer
9 Interface of display board
10
High water-level inspection
interface
11 Ambient temperature sensor
12 Tube temperature sensor
1
2
11
To Next Page
