Maintenance
Service Manual

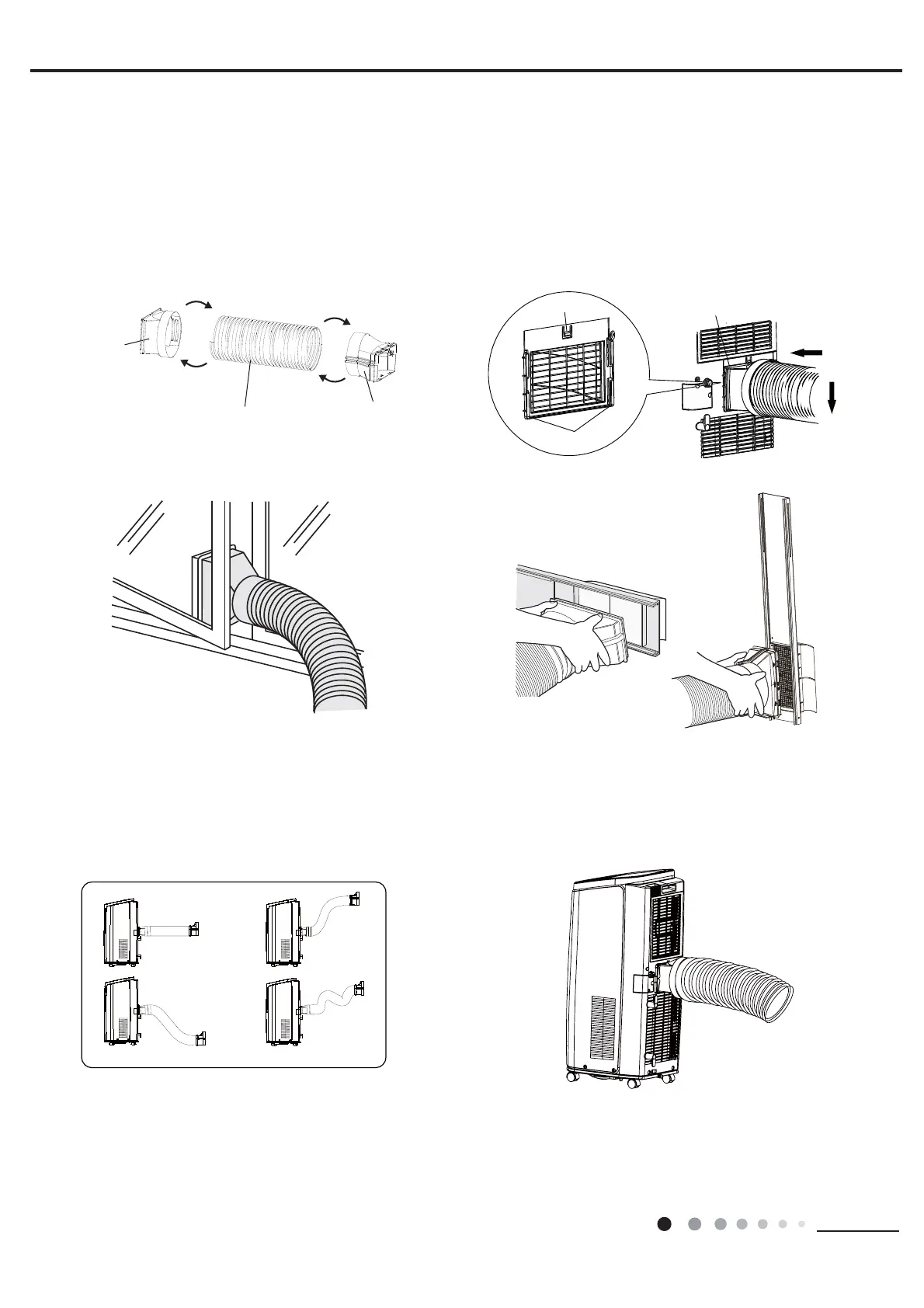

A. Install heat discharge pipe
(1) Rotate joint A and joint B clockwise into the two ends of heat discharge pipe.(As show in Fig.10)
(2) Insert joint A of heat discharge pipe (the side with "TOP" is upwards) into the groove until you hear a sound.(As shown in Fig.11)
(3) Lead the exhaust hose outdoors.(As shown in Fig.12)
(4) Slide and open the exhaust cover on the window panel, and attach the window adapter. (Optional) (As shown in Fig.13)
clockwise
clockwise
j
oint A
joint B+C
heat discharge pipe
9.5 Installation and Disassembly of heat Discharge Pipe
groove
clasp
the side with "TOP" is upwards

heat discharge.(As shown in Fig.13)


Note of Install heat discharge pipe
correct correct
correct
wrong
Fig.10
Fig.12
Fig.11
Fig.13
Fig.14Fig.13
