Installation and Maintenance
11. Removal Procedure

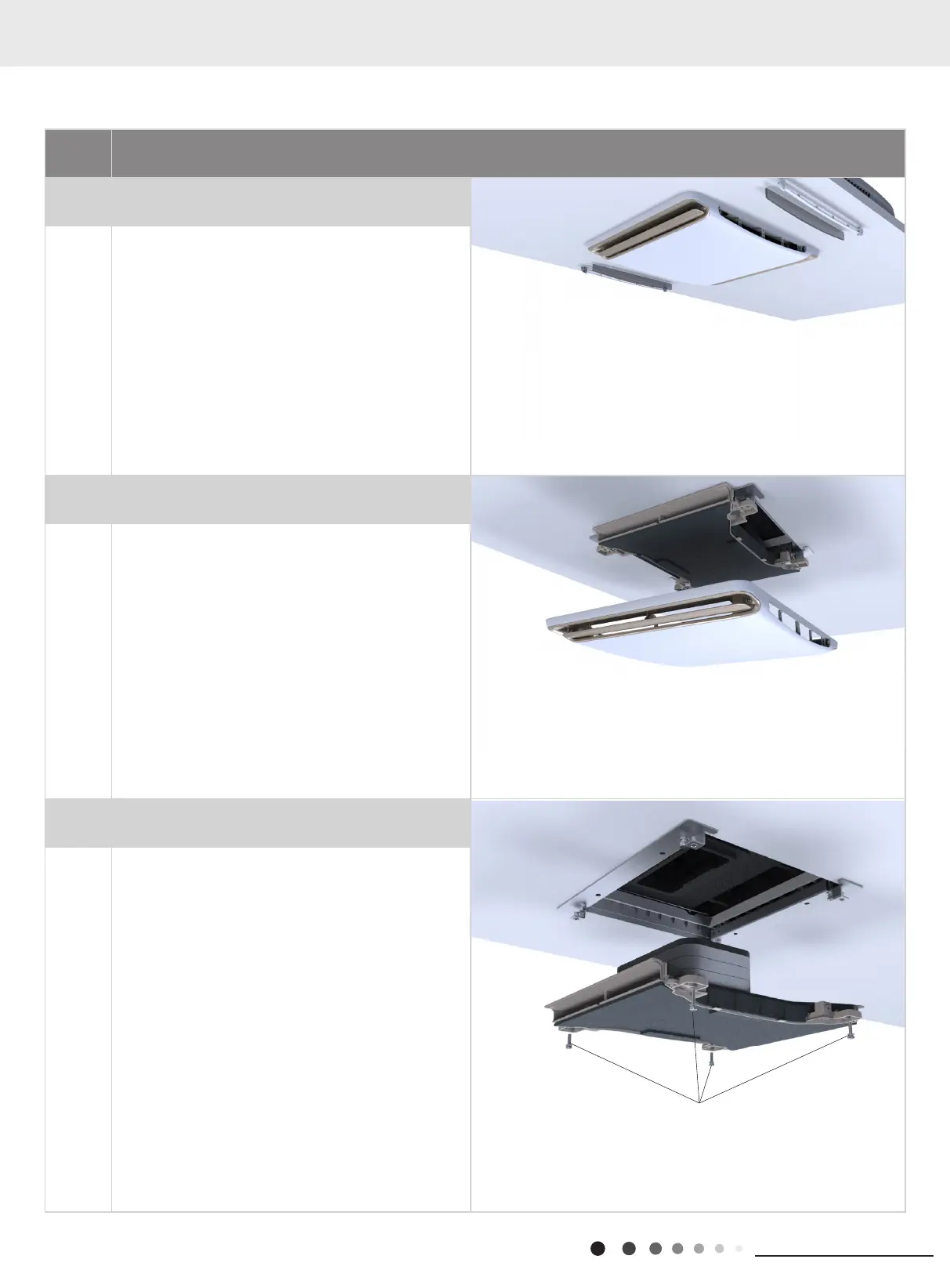

11.1 Removal Procedure of Indoor Unit
Bolts
Step Procedure
1.Remove air-in grille and the lter
Press both ends of air-outlet grille to unlock the door
switch and then remove the air-in grille and the lter.
2. Remove front panel sub-assy
Loose 4 screws at both ends and then remove the panel
sub-assy downwards.
3. Remove air duct sub-assy
Loose 4 bolts as shown in the gure and then remove
the air duct sub-assy downwards.
To Next Page
