13
Tabs
Top
Window Panel
Debris
Guard
Projection
Prongs
Top
Hole
Rain Guard
1
3
4
2
Foam with
Adhesive

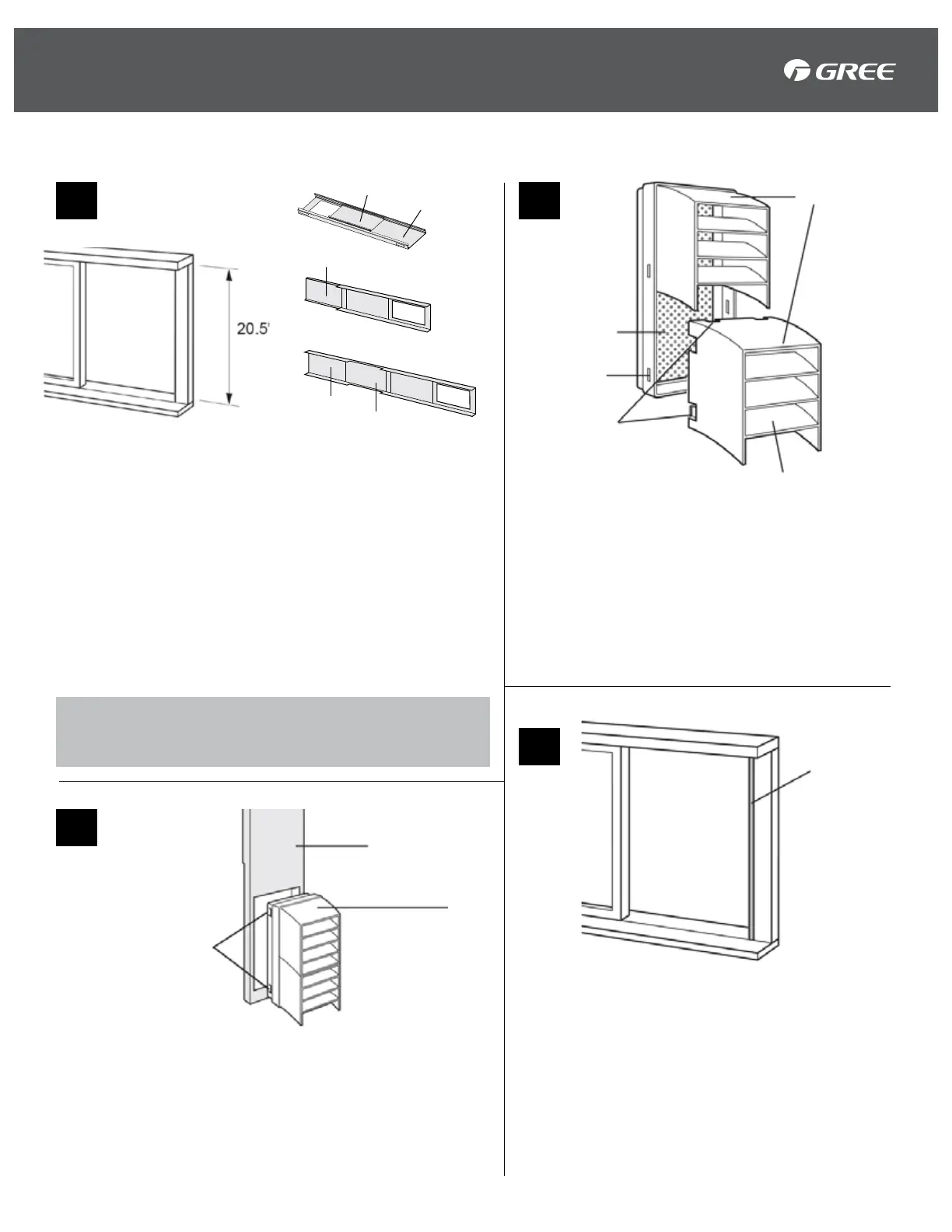

INSTALLATION INSTRUCTIONS
Horizontal Sliding Window
Attach the Guard Combination to the back side of
the
Window Panel. Push the Guard Combination
securely into the Window Panel to ensure that is fits
securely.
Note: Ensure TOP of Guard Combination faces up.
Guard Combination faces the outside
.
Connect both
Rain Guards to the Debris
Guard
. Insert all 3 tabs on the Rain Guard into
the holes in the
Debris Guard.
Ensure curved side is on TOP.
Cut the
Foam with Adhesive to fit length of the
window and attach to window sill.
Open the window and measure the height inside the
window frame.
A) For windows with inner height of 20.5" (52 cm)
only use the Window Panel.
B) For windows with inner height over 20.5” (52 cm)
up to 37.5” (95.2 cm) insert
Adjustment Panel
C) For windows with inner height over 37.5” (95.2 cm)
up to 56.7” (144 cm) insert
Adjustment Panel and
Extension Panel
.
A
B
C
Extension panel
Adjustment panel
Adjustment panel
Window panel
Exhaust cover
Note: If Extension Panel or Adjustment Panel are
too long, use a Pencil and Saw to cut panels to fit
window frame.
