for more than 12h. If the pressure remains unchanged, then start vacuum pumping; otherwise, check the
system for leaks again.
Temperature should be considered when judging the pressure change. If temperature changes by 1
℃
,
pressure will change by 0.01MPa or so.
For example, if temperature is 30
℃
when nitrogen of 2.5MPa is charged, and temperature changes to 25
℃
after 12h, we consider that the system is qualified if the pressure is found at 2.43MPa or above.
Step 11: Evacuate the system and charge refrigerant
Please refer to the section of maintenance: vacuum pumping and refrigerant charging.
Step 12: Connect electric components
Connect cables, compressor wires and the electric heating belt according to the signs marked before and
the wiring diagram on the cover of the electric box.
4.4.3 How to replace the drive module of compressor
Step 1: First, make sure that power is cut off. Set the universal meter at the AC voltage and measure the
voltage between L1, L2, L3, and N. If each time the voltage is 0V (Errors may occur to the universal meter,
sometimes the voltage may not be 0V), proceed with the next step and put a sign on the power switch that reads
“Under maintenance, don’t switch on”.

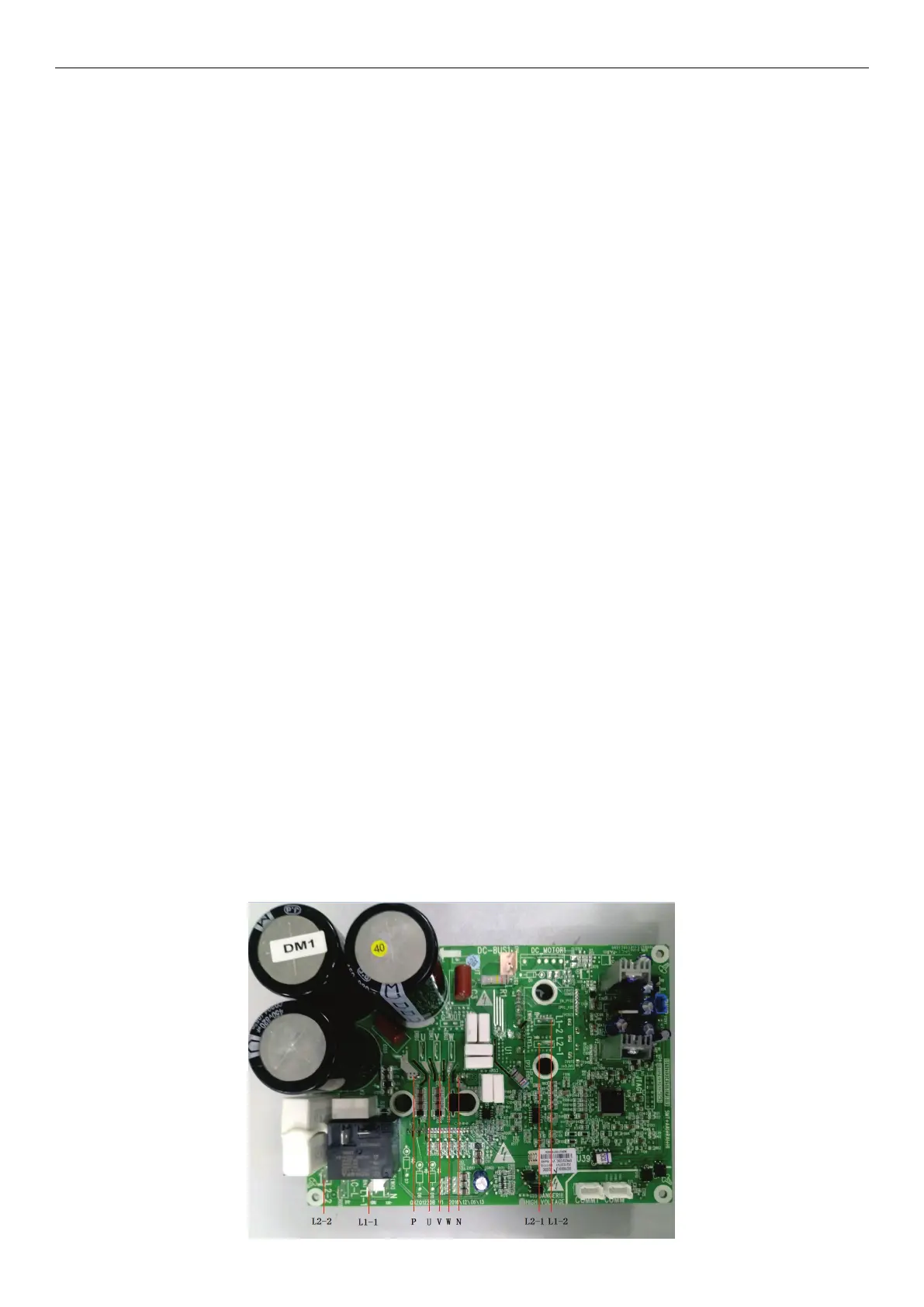

Step 2: Measure the voltage between DC bus P and N on the drive board of the compressor. Set the
universal meter at the DC voltage and measure the voltage between P and N as shown below. If the voltage is
below 36V, proceed with the next step. In case that a universal meter is not available, disconnect power for 20min
and then continue with the next step.
Step 3: Remove all the wires on the drive board of the compressor.
