GREE U-Match 5 SERIES UNIT SERVICE MANUAL
144

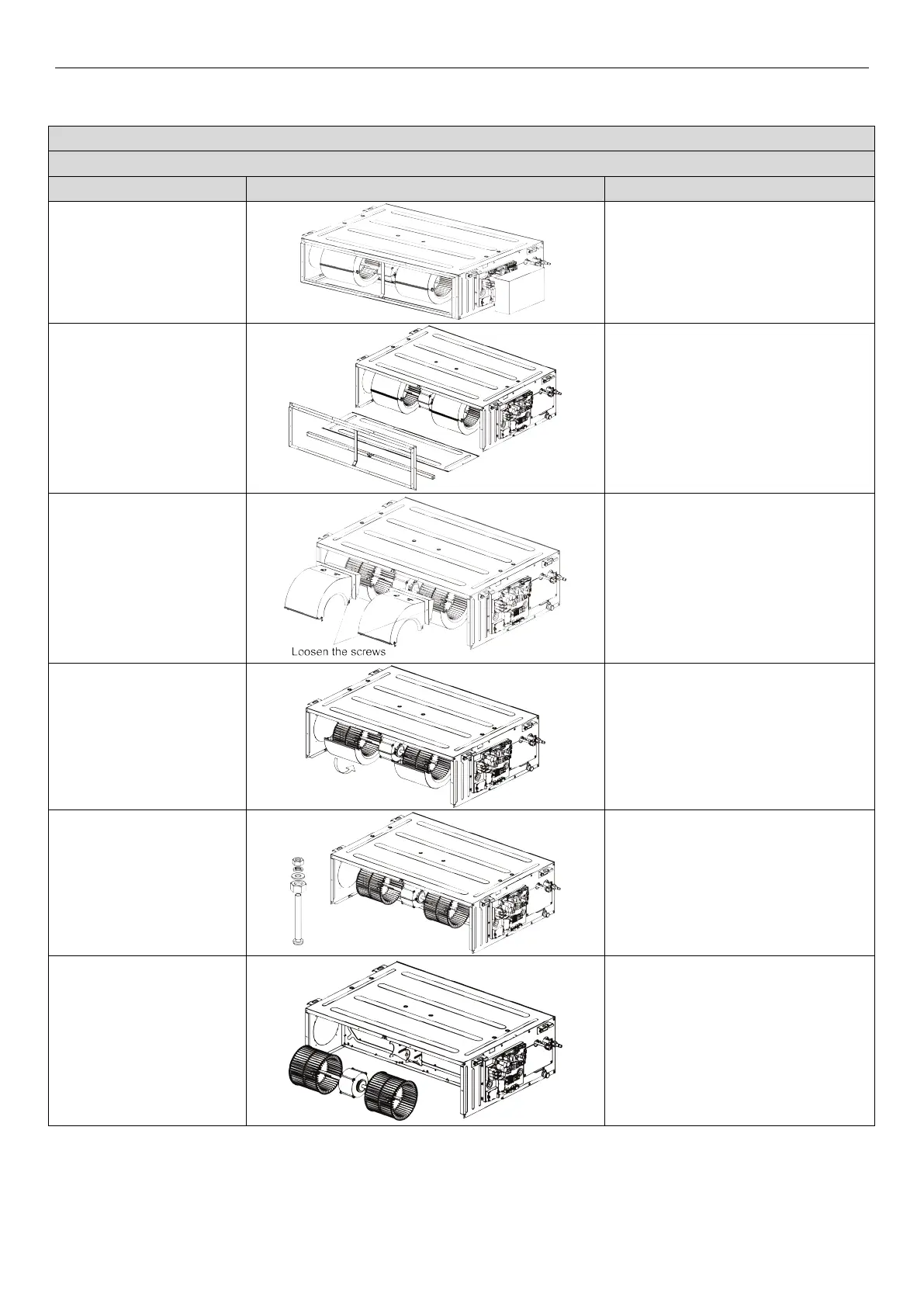

4.5.2.2 Duct Type Unit
Removal of fan and motor
Note: Before removing the motor, make sure power is cut off.
Step Picture Work instruction
1. Remove the cover of
electric box.
 Turn off the power supply of indoor
unit. Use a screwdriver to remove
the cover of electric box.
Disconnect the motor wire inside
the electric box.
2. Remove air return
plate, the longitudinal
component and air
return frame.
 Use a hex wrench to loosen the
screws of fan.
 Order of removal: air return plate,
air return frame, longitudinal
component, cross beam
3. Remove the upper
volute.
 Loosen the screws of upper volute
and then pull out the upper volute.
4. Remove the lower
volute.
 Loosen the screws of lower volute
and then rotate in the direction
shown by the arrow.
5. Remove the motor and
fan.
 Use a screwdriver to remove the
clamping band of motor. Then
remove the motor and fan as a
whole.
6. Replace the motor.
 Remove the motor from the motor
support.
 Use a hex wrench to loosen the
screws of fan.
 Remove the fan from the motor.
 Replace with a new motor.
