GREE U-Match 5 SERIES UNIT SERVICE MANUAL
145

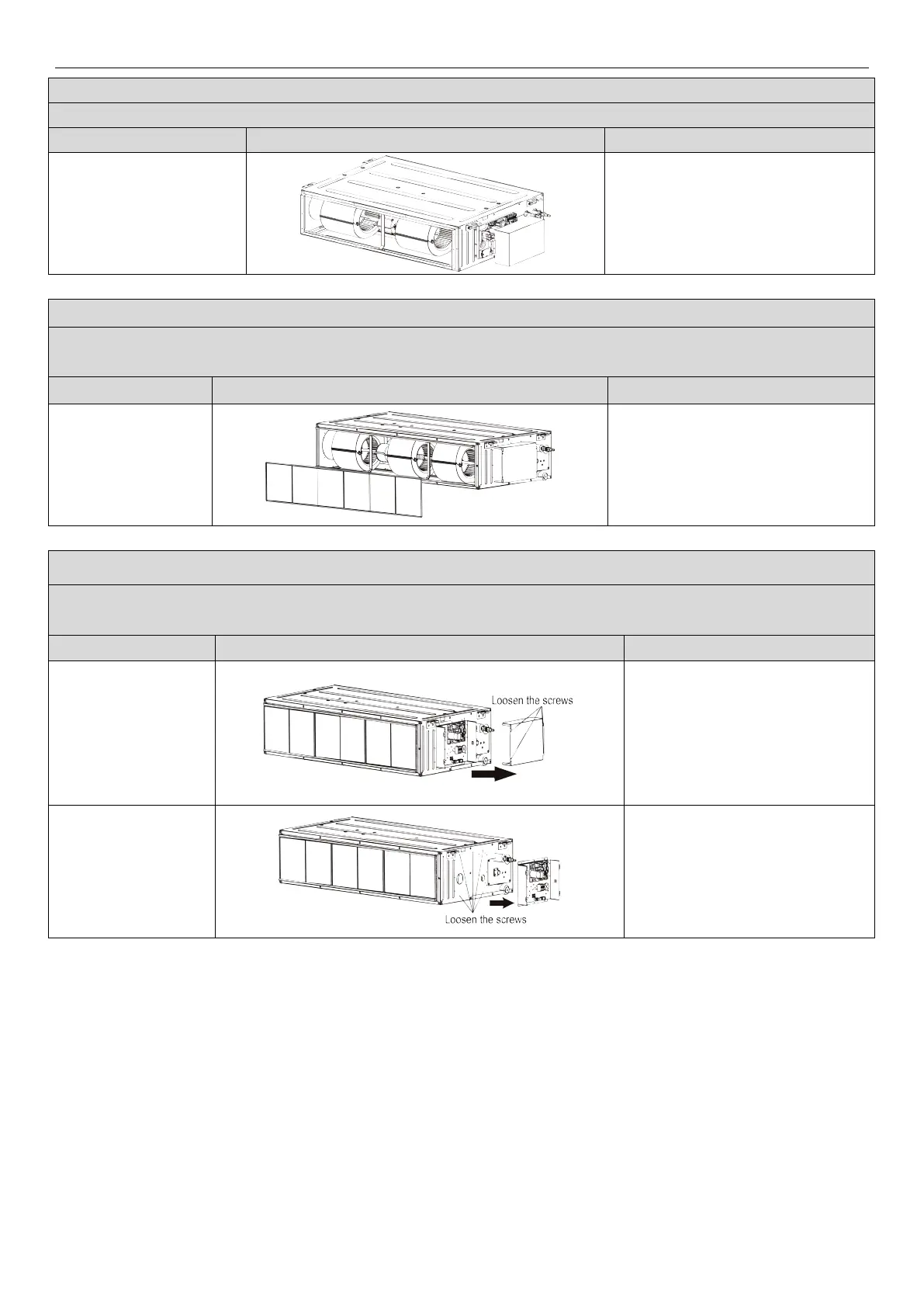

Removal of fan and motor
Note: Before removing the motor, make sure power is cut off.
Step Picture Work instruction
7. Re-install the device in
a reverse order of the
removal procedure.
Re-install the device in a reverse
order of the removal procedure.
Then connect power and test it.
Removal of air return filter
Note: Before removal, make sure power is cut off. During the removal procedure, take good care of all the components. Do not
place the filter near any heat source.
Step Picture Work instruction
Remove air return
filter.
Press the air return filters on the
guide way sponge. There are 2 or
3 air return filters.
Removal of the cover of electric box and the electric box
Note: Before removal, make sure power is cut off. During the removal procedure, take good care of all the components, especially
the electric components. Do not hit or beat.
Step Picture Work instruction
1. Remove the cover
of electric box.
Loosen the screws as shown by
the circle and the box. Remove
the box in the direction shown
by the arrow.
2. Remove the
electric box.
Loosen the securing screws and
remove the electric box.
To Next Page
