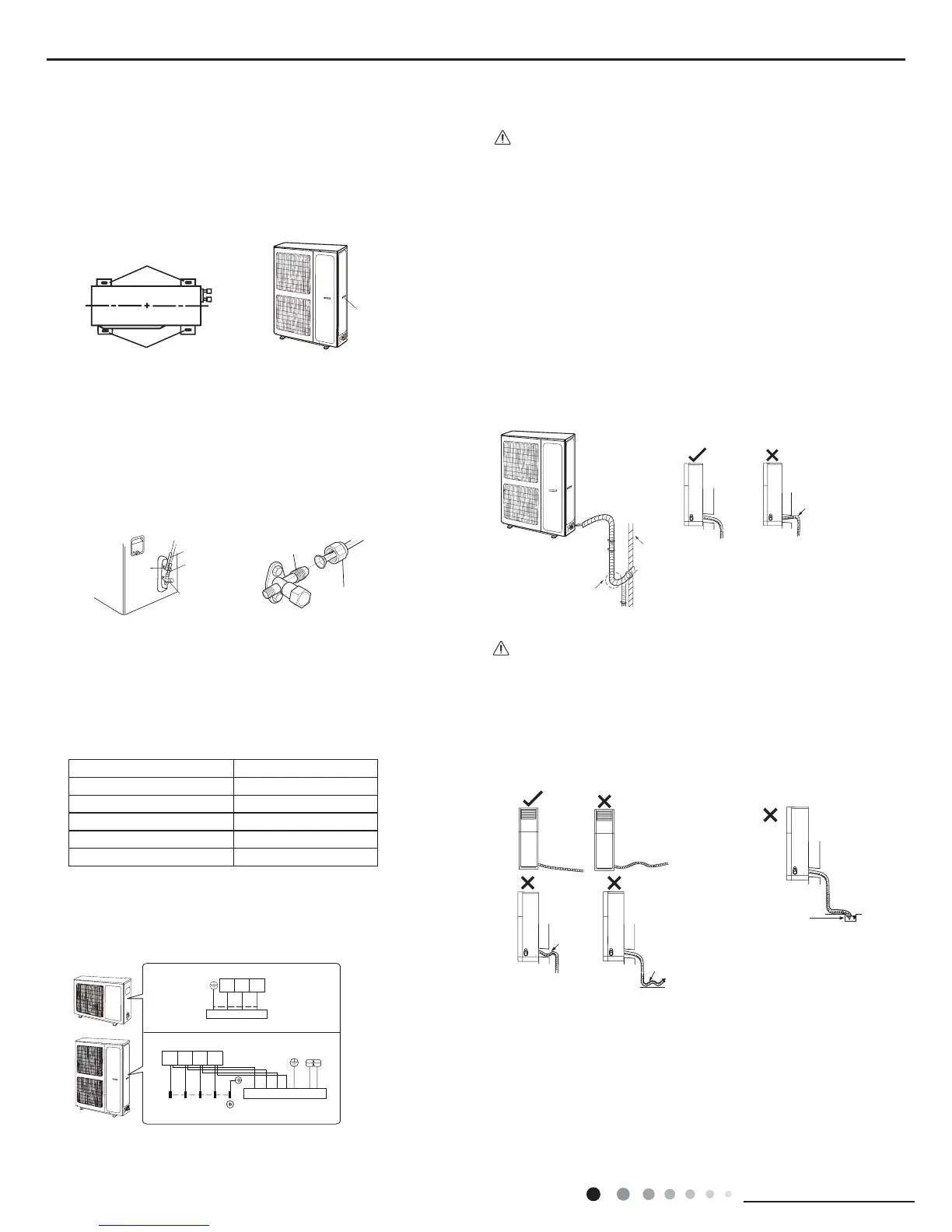

Service Manual
38
Installation and Maintenance
Note: the wiring board is for reference only,
please refer to the actual one
N(1)
23
blue brownblack
yellow-
green
Indoor unit connection
24K:
48/55K
blue
Indoor unit connection
brown
black violet
yellow-
green
blue
brown
black
violet
yellow-
green
POWER
NL1 L2 L3
NL1 L2 L3
gas pipe
Liquid pipe
Liquid
valve
gas valve
2. Install Drain Joint(Only for cooling and heating unit)
(1) Connect the outdoor drain joint into the hole on the chassis.
(2) Connect the drain hose into the drain vent.
(As show in Fig.19)
3. Fix Outdoor Unit
(1) Place the outdoor unit on the support.
(2) Fix the foot holes of outdoor unit with bolts.
(As show in Fig.20)
4. Connect Indoor and Outdoor Pipes
(1) Remove the screw xing the junction box cover of outdoor
unit and then remove the cover.(As show in Fig.21)
(2) Remove the screw cap of valve and aim the pipe joint at the
bellmouth of pipe.(As show in Fig.22)
Fig.20
Fig.21
Fig.22
handl
(1) After tightening the screw, pull the power cord slightly to
check if it is rm.
(2) Never cut the power connection wire to prolong or shorten
the distance.
Note:
5. Connect Outdoor Electric Wire
(1) Remove the wire clip; connect the power connection wire
and power wire to the wiring terminal according to the color; x
them with screws.(As show in Fig.23)
(2) Fix the power connection wire and signal control wire with
wire clip (only for cooling and heating unit).
Fig.23
Fig.24
Fig.25
(3) Pretightening the union nut with hand.
(4) Tighten the union nut with torque wrench.
Refer to the following table for wrench moment of force
:
U-shaped curve
wall
1.The through-wall height of drain hose shouldn't be higher
than the outlet pipe hole of indoor unit.(As show in Fig.25)
2.Slant the drain hose slightly downwards. The drain hose
can't be curved, raised and uctuant, etc. (As show in Fig.26)
3.The water outlet can't be placed in water in order to drain
smoothly.(As show in Fig.27)
Note:
The drain hose
can't be fluctuant
The drain
hose can't
be fluctuant
The water outlet
can't be fluctuant
The water
outlet can't
be placed
in water
raise upwards.
Step six: neaten the pipes
1. The pipes should be placed along the wall, bent reasonably
and hidden possibly. Min. semidiameter of bending the pipe is
10cm.
2. If the outdoor unit is higher than the wall hole, you must set
a U-shaped curve in the pipe before pipe goes into the room,
in order to prevent rain from getting into the room. (As show in
Fig.24)
Hex nut diameter(mm) Tightening torque(N
.
m)
Φ6 15~20
Φ9.52 30~40
Φ12 45~55
Φ16 60~65
Φ19 70~75
