11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Caution: discharge the refrigerant completely before removal.
ProcedureStep

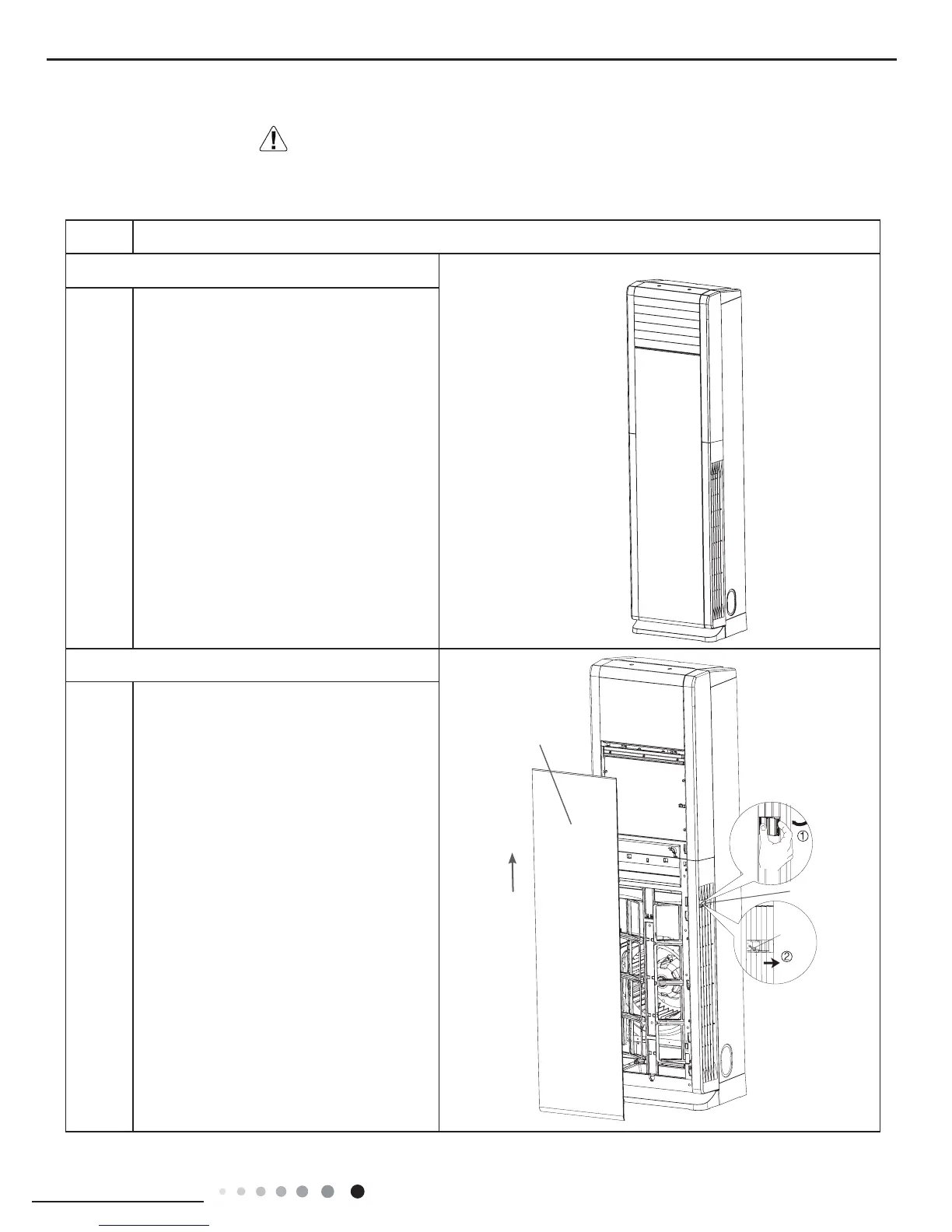

1.Outside view of indoor unit
big front panel sub-assy
screw cover
screw
2.Remove the big front panel sub-assy
Open the screw cover, use screwdriver
to remove the screws at both side of
air-in panel, push the big front panel
upwards and then separate the connector
connected to the connection wire of
display and then remove the big front
panel.
