Service Manual
78
Installation and Maintenance
11.2 Removal Procedure of Outdoor Unit
Warning Be sure to wait for a minimum of 10 minutes after
turning off all power supplies before disassembly.
NOTE:Take heat pump for example.
24K
ProcedureSteps
Remove the screw connecting the big handle
and right side plate, and then remove the big
handle.
Remove the screw connecting the valve cover
and right side plate, and then remove the valve
cover.
a

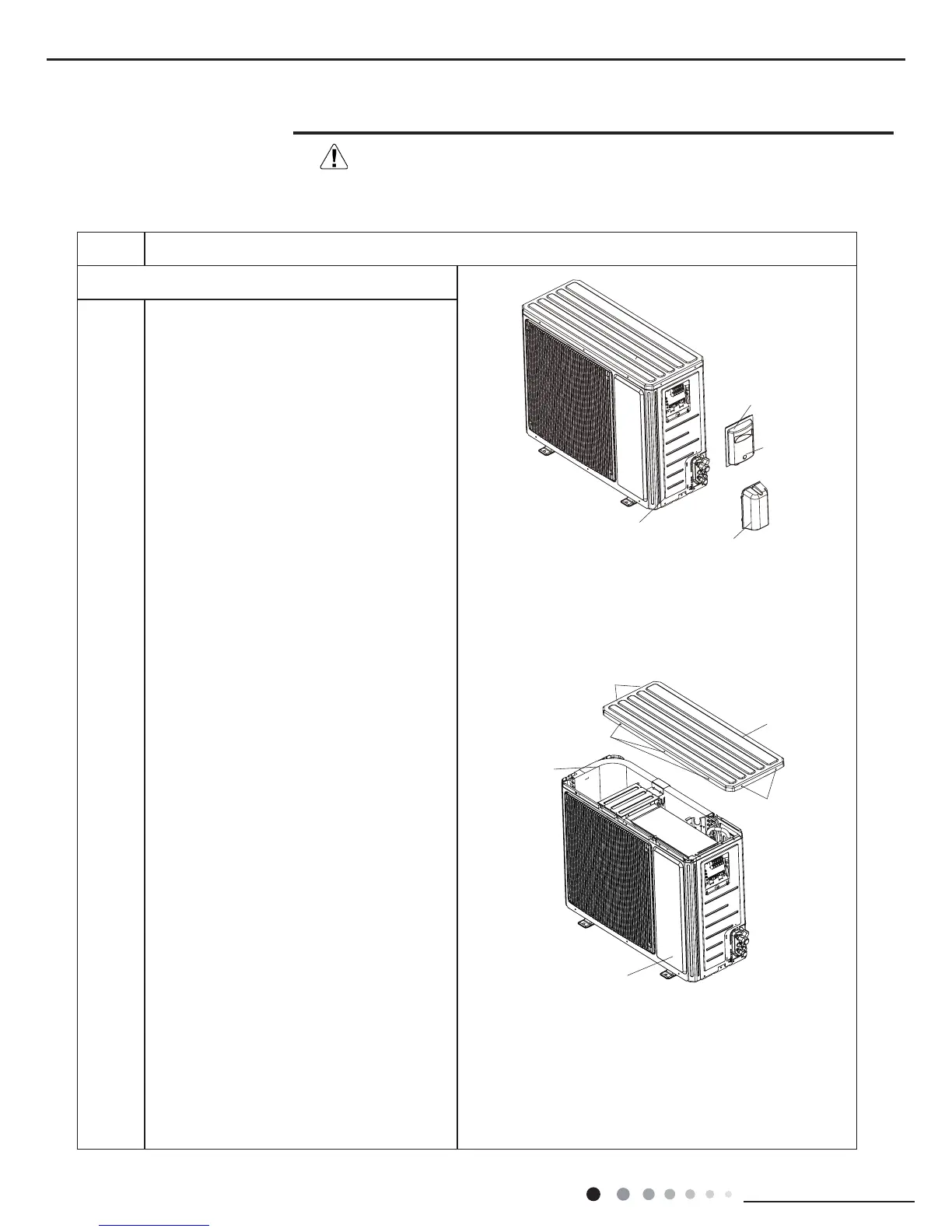

1. Remove big handle,valve cover and top cover
Remove the screws connecting the top cover
with cabinet, right side plate and left side plate;
lift the top cover upwards to remove it.
b
handle
right side plate
screw
valve cover
top cover
screw
screw
screw
cabinet
right side
plate
