Service Manual
66
Installation and Maintenance

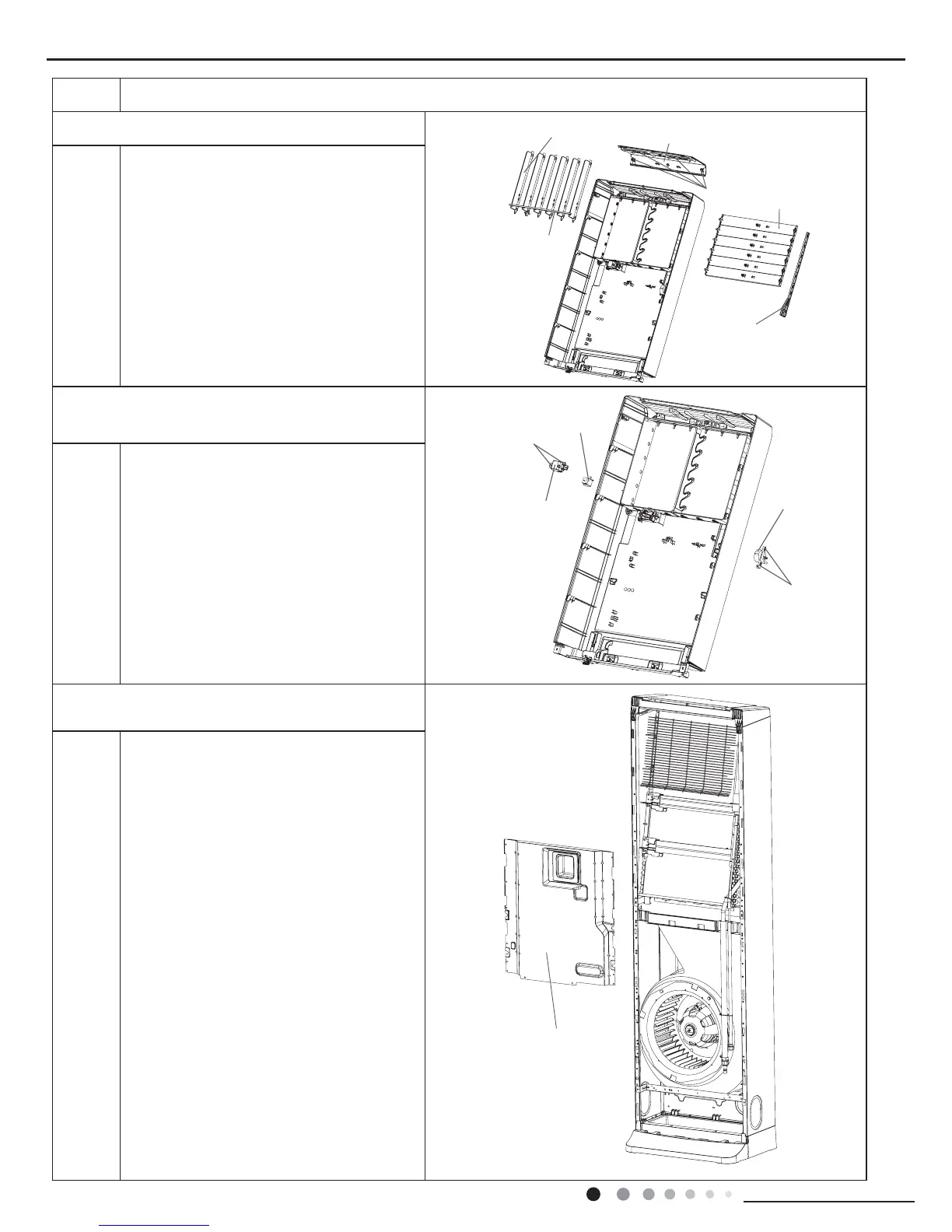

ProcedureStep
8.Remove upper cover, horizontal louver, swing board
9.Remove swing motor and air-guide motor
Remove screws used for fixing the air-
guide motor and the remove the air-guide
motor.
Remove screws used for xing the motor
cover, remove the motor cover and then
remove the swing motor.
Remove 2 screws at the upper part of the
upper cover and two screws at the back
side of the air-outlet panel.
After removing the air-guiding connecting
robe, and then pull the horizontal louver
outwards to remove it.
After removing the air swing connection
rod, pull the swing board inwards to
remove it.
swing board
air-guide motor
motor cover
swing motor
air swing
connecting rod
upper cover
horizontal louver
air-guiding connecting rod
screw
screw
screw
10.Remove wind board
wind board
Remove 11 screws used for xing the wind
board and then remove the wind board.
a
b
b
c
a
To Next Page
